Bergquist 1.5W /m-K Gap Pad 1500 Soft Heat Conduction Heat Dissipation Silicone Gasket

Name: Bergquist 1.5W /m-K Gap Pad 1500 Soft Heat Conduction Heat Dissipation Silicone Gasket
Brand: SZ PUFENG PACKING MATERIAL LIMITED
SKU: Gap Pad 1500
Price: 25.00 USD
Availability: InStock

Brand Name:	BERGQUIST
Model Number:	Gap Pad 1500
MOQ:	1roll
Price:	USD1~USD50
Delivery Time:	3~5working days normally
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand:

BERGQUIST

Model:

Gap Pad 1500

Color:

Black

Base Material:

Silica Gel

Fire Resistance:

V-0

Temperature- Resistance (℃):

- 60 ~ 200（℃）

Characteristic:

Electrically Isolating

Specification:

Customizable

Packaging Details:

packing in cartons

Supply Ability:

10000roll/week

Highlight:

Soft Heat Conduction Gap Pad

1500 Gap Pad

1.5W /m-K Gap Pad

Product Description

Bergquist 1.5W /m-K Gap Pad 1500 soft heat conduction heat dissipation silicone gasket

Description of products :

Gap Pad 1500 has an ideal filler blend that gives it a low-modulus characteristic that maintains optimal thermal performance yet still allows for easy handling.The natural tack on both sides of the material allows for good compliance to adjacent surfaces of components, minimizing interfacial resistance.

Overall size :(203 mm *406 mm)Customizable

Product features/Applications:

Thermal conductivity: 1.5 W/m-K,electrically isolating

Un-reinforced construction for additional compliancy;Conformable, low hardness

Computers and peripherals, communication devices, power conversion devices, RDRAMTM memory modules/chat-level packages, where heat transfer is required to a rack, chassis, or other cooling device.

PRODUCT PARAMETERS

Test item	Test method	Unit	Imperial value	Meteic value
Color	-	-	Black	Black
Reinforcement Carrier	-	-	-	-
Thickness	ASTM D374	inch / MM	0.020 ~ 0.200	0.508 ~ 5.080
Inherent Surface Tack	-	1 sided	2	2
Density	ASTM D792	g/cc	2.1	2.1
Heat Capacity	ASTM E1269	J/g-K	1.0	1.0
Hardness(1)	ASTM D2240	Shore 00	40	40
Young's Modulus (2)	ASTM D575	psi / kPa	45	310
Dielectric Breakdown Voltage	ASTM D149	Vac	＞ 6000	＞ 6000
Volume Resistivity	ASTM D257	Ohm-meter	1×10¹¹	1×10¹¹
Continuous Use Temp	-	°F / ℃	-76 ~ 392	-60 ~ 200
Flame retardant rate	UL 94	-	V - 0	V - 0
Dielectric constant	ASTM D150	1000 MHz	5.5	5.5
Teat conductivity coefficient	ASTM D5470	W/m·K	1.5	1.5

THERMAL PERFORMANCE vs. STRAIN

Deflection (% strain)	10	20	30
Thermal Impedance (°C-in2/W) 0.040" (3)	1.62	1.5	1.33

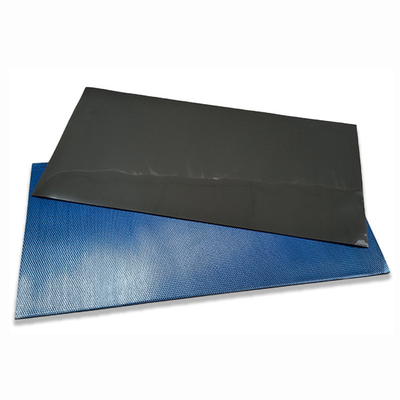

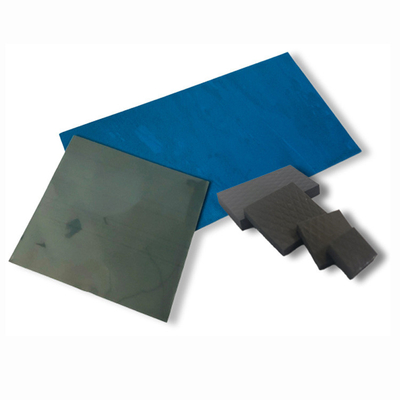

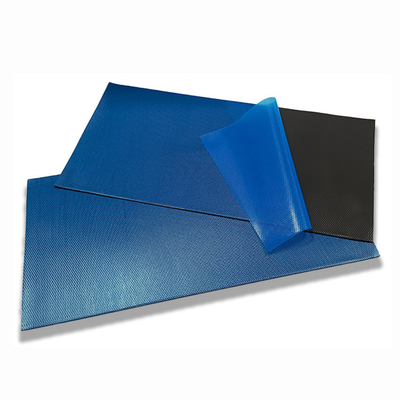

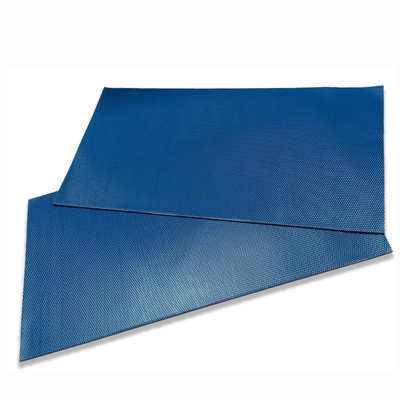

PRODUCT DISPLAY

PACKING OF TRANSPORT

Bergquist 1.5W /m-K Gap Pad 1500 Soft Heat Conduction Heat Dissipation Silicone Gasket 2

COMPANY PROFILE

SHENZHEN PUFENG PACKING MATERIAL CO.,LTD (PUFENG) is an international machining manufacturer, who is devoting to the precision die-cutting machining field, designing adhesive products, insulation products, sourcing the best solutions and improving the quality and performance of products for customer.
The operation principle of PUFENG is "Running based on the market and sincerity,client and high quality come first." In order to provide a complete set of on-step products and service to customer, PUFENG has formed a strong technical team for worldwide customers to develop precision products. PUFENG’s quality principle is “Serve customers precisely on every tiny point of the demand from customer.” We hope to build up business relationships with you on the basis of equality and mutual benefit.

OUR SERVICES

1.Your enquiries about our products will be answered within 12 hours.

2.OEM or ODM projects are very welcome.

3.We can die cut or design products according to your requirements.shock-proof, shading, etc.

4.Provide perfect after-sales service, if you have questions, please contact us.

5.Pack according to your requirement and deliver on time.

COMMON PROBLEM

1.)How to order from Pufeng?
Just send us an email or call us.

2.)Do you provide free samples for testing?
Yes, we provide samples free of charge.

3.)How to deliver the goods?
We will advise you on the appropriate mode of transport, sea, air or express. Of course, if you have your own repeater, that's no problem.

4.)Can we trust the quality of Pufeng products?
Of course, don't worry. Our quality will definitely match the samples we send. If not, we will be responsible.

5.)What payment does Buffon accept?
For small quantities, we require 100% TT payment in advance; Other conditions, negotiable.

6.)What is the lead time of each order?
If the tape you ordered is in stock, we can deliver it within 1~3 days.
If die cutting is required, delivery time shall be determined by quantity.
