BERGQUIST SIL PAD TSP 3500 High Performance Thermal Silicon Film

Name: BERGQUIST SIL PAD TSP 3500 High Performance Thermal Silicon Film
Brand: SZ PUFENG PACKING MATERIAL LIMITED
SKU: SIL PAD TSP 3500
Price: 25.00 USD
Availability: InStock

Brand Name:	BERGQUIST
Model Number:	SIL PAD TSP 3500
MOQ:	1roll
Price:	USD1~USD50
Delivery Time:	3~5working days normally
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand:

BERGQUIST

Model:

SIL PAD TSP 3500

Color:

White

Base Material:

Fiberglass

Fire Resistance:

V-0

Temperature- Resistance (℃):

- 60 ~ 180（℃）

Characteristic:

Insulation/Heat Conduction

Specification:

Customizable

Packaging Details:

packing in cartons

Supply Ability:

10000roll/week

Highlight:

High performance thermal silicon film

TSP 3500 thermal silicon film

Product Description

BERGQUIST SIL PAD TSP 3500 High performance thermal silicon film

Product features/Applications:

Thermal impedance: 0.33ºC-in²/W @ 50 psi

High Thermal Conductivity: 3.5 W/m-K.

Used in power supply, motor control, power semiconductors, aerospace, avionics.

BERGQUIST SIL PAD TSP 3500 are supplied in:

Sheet form and die-cut parts

With or without pressure-sensitive adhesive

PRODUCT PARAMETERS

Test item	Test method	Unit	Metric value
Color	Visual	-	White
Reinforcement Carrier	-	-	Fiberglass
Technology	-	-	Silicone
Thickness	ASTM D374	MM	0.254 ~ 0.508
Hardness	ASTM D2240	Shore A	90
Tensile strength	-	°C-in²/W	0.33
Dielectric Breakdown Voltage	ASTM D149	Vac	4000
Volume Resistivity	ASTM D257	Ohm-meter	1×10¹¹
Continuous Use Temp	-	℃	- 60 ~ 200
Flame retardant rate	UL 94	-	V - 0
Dielectric constant	ASTM D150	1000 MHz	4.0
Teat conductivity coefficient	ASTM D5470	W/m·K	3.5

THERMAL PERFORMANCE vs PRESSURE

Pressure
(psi)

100

200

TO-220 Thermal Performance

(°C/W)

2.61

2.32

2.02

1.65

1.37

Thermal Impedance

(°C-in²/W)

0.57

0..43

0.33

0.25

0.20

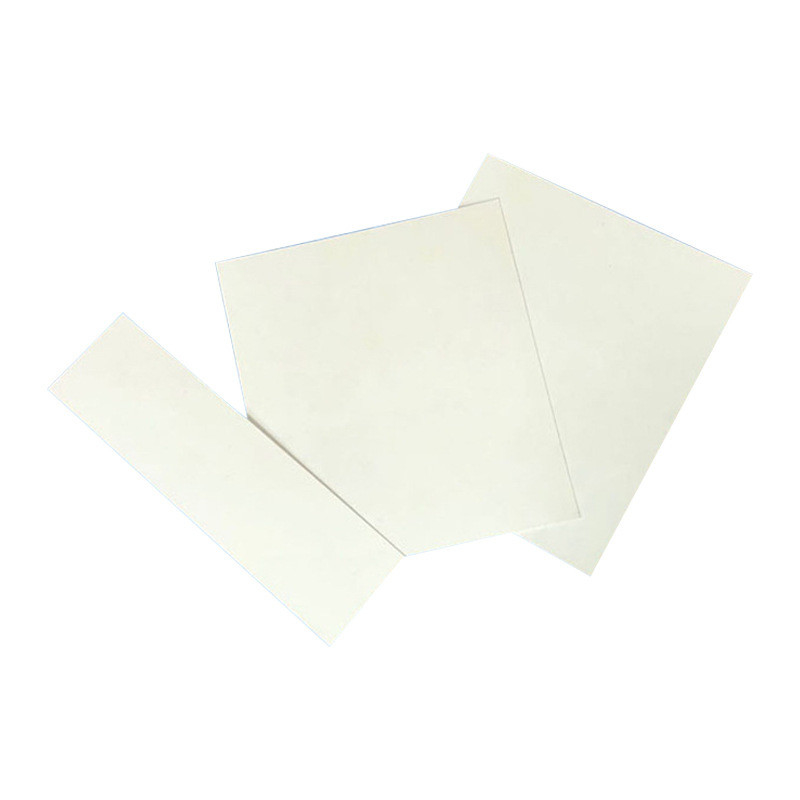

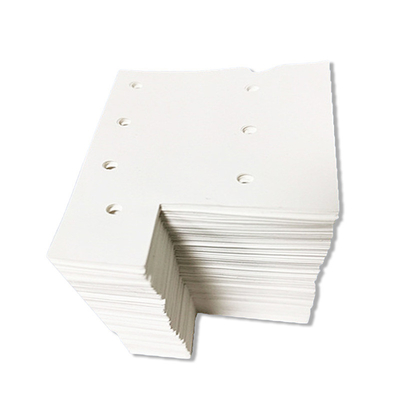

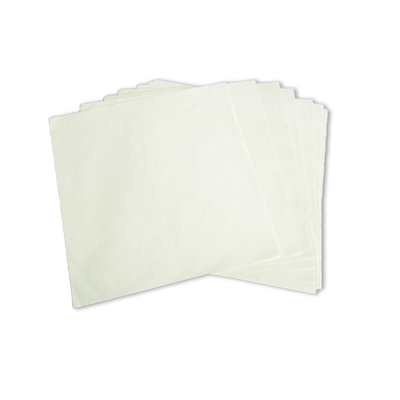

PRODUCT DISPLAY

PACKING OF TRANSPORT

BERGQUIST SIL PAD TSP 3500 High Performance Thermal Silicon Film 2

COMPANY PROFILE

SHENZHEN PUFENG PACKING MATERIAL CO.,LTD (PUFENG) is an international machining manufacturer, who is devoting to the precision die-cutting machining field, designing adhesive products, insulation products, sourcing the best solutions and improving the quality and performance of products for customer.
The operation principle of PUFENG is "Running based on the market and sincerity,client and high quality come first." In order to provide a complete set of on-step products and service to customer, PUFENG has formed a strong technical team for worldwide customers to develop precision products. PUFENG’s quality principle is “Serve customers precisely on every tiny point of the demand from customer.” We hope to build up business relationships with you on the basis of equality and mutual benefit.

OUR SERVICES

1.Your enquiries about our products will be answered within 12 hours.

2.OEM or ODM projects are very welcome.

3.We can die cut or design products according to your requirements.shock-proof, shading, etc.

4.Provide perfect after-sales service, if you have questions, please contact us.

5.Pack according to your requirement and deliver on time.

COMMON PROBLEM

1.)How to order from Pufeng?
Just send us an email or call us.

2.)Do you provide free samples for testing?
Yes, we provide samples free of charge.

3.)How to deliver the goods?
We will advise you on the appropriate mode of transport, sea, air or express. Of course, if you have your own repeater, that's no problem.

4.)Can we trust the quality of Pufeng products?
Of course, don't worry. Our quality will definitely match the samples we send. If not, we will be responsible.

5.)What payment does Buffon accept?
For small quantities, we require 100% TT payment in advance; Other conditions, negotiable.

6.)What is the lead time of each order?
If the tape you ordered is in stock, we can deliver it within 1~3 days.
If die cutting is required, delivery time shall be determined by quantity.
