Bergquist Sil-Pad K-6 Kapton substrate SPK6 thermal conductive silicone Pad

Description of products :

• Sil-Pad K-6 is a medium performance thermal insulation product with thin film substrate. The material is made of Kapton film coated with silicone elastomer. It has good thermal conductivity and strong and durable insulation layer, which can solve the assembly failure problem caused by material puncture.

Product features/Applications :

Configurations available :

• Sheet form,die-cut parts and roll form

• With or without pressure sensitive adhesive​

PRODUCT PARAMETERS

Test item	Unit	Imperial value	Meteic value	Test method
Color	-	Bluegreen	Bluegreen	Visual
Reinforcement Carrier	-	Polymide	Polymide	-
Thickness (1)	inch / MM	0.006	0.152	ASTM D374
Hardness	Shore A	90	90	ASTM D2240
Disruptive Strength	(lbs/inch)/(kN/m)	30	5	ASTM D1458
Elongation (%)	%	40	40	ASTM D412
Tensle Strength	psi / MPa	5000	34	ASTM D412
Dielectric Breakdown Voltage	Vac	6000	6000	ASTM D149
Volume Resistivity	Ohm-meter	1×1012	1×1012	ASTM D257
Continuous Use Temp	°F / ​℃	-76 ~ 356	-60 ~ 180	-
Flame retardant rate	-	V - 0	V - 0	UL 94
Dielectric constant	1000 MHz	4.0	4.0	ASTM D150
Teat conductivity coefficient	W/m·K	1.1	1.1	ASTM D5470

THERMAL PERFORMANCEvs PRESSURE


Pressure (psi)	10	25	50	100	200
TO-220 Thermal Performance (°C/W)	3.24	3.03	2.76	2.45	2.24
Thermal Impedance (°C-in2/W)	0.82	0.62	0.46	0.41	0.36

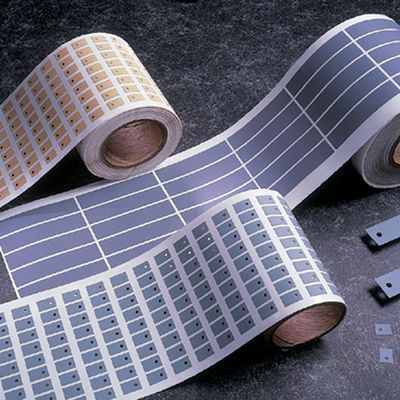

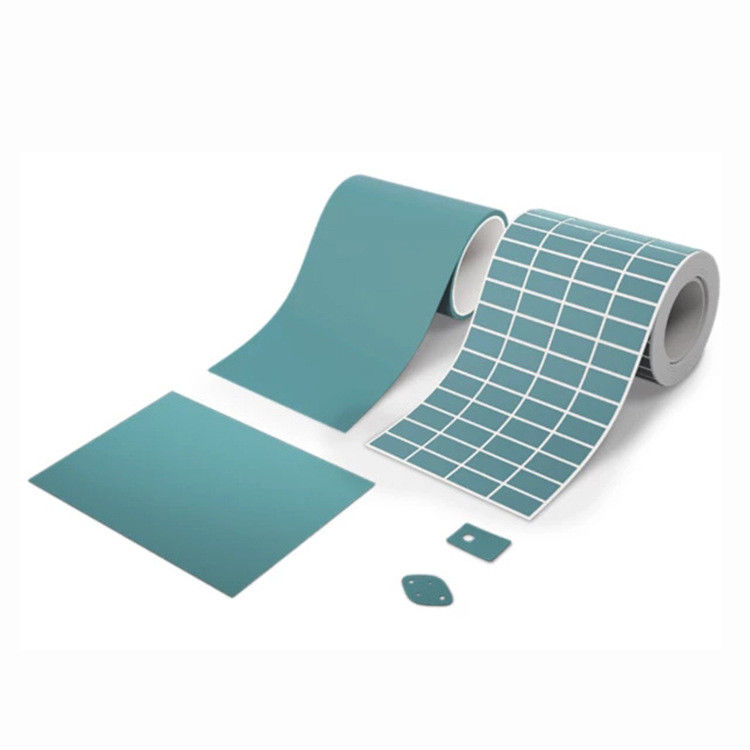

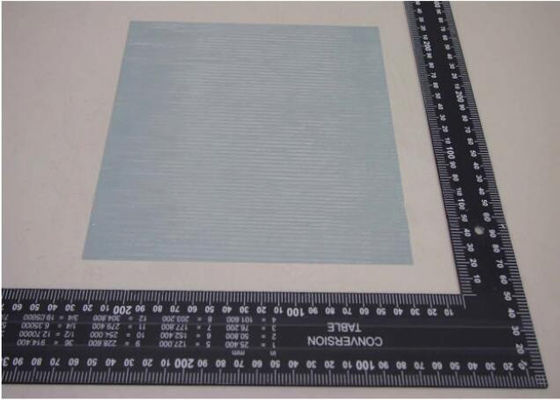

PRODUCT DISPLAY

PACKING OF TRANSPORT
