0.3~10mm 2.5W/m·K Blue Color LED Light Insulation Silicone Sheet

Name: 0.3~10mm 2.5W/m·K Blue Color LED Light Insulation Silicone Sheet
Brand: SZ PUFENG PACKING MATERIAL LIMITED
SKU: PF250
Price: 25.00 USD
Availability: InStock

Brand Name:	PF
Model Number:	PF250
MOQ:	1roll
Price:	USD1~USD50
Delivery Time:	3~5working days normally
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand:

Model:

PF250

Color:

Blue

Base Material:

Silica Gel

Fire Resistance:

V-0

Temperature- Resistance (℃):

-40 ~ 200（℃）

Characteristic:

Insulation

Specification:

Customizable

Packaging Details:

packing in cartons

Supply Ability:

10000roll/week

Highlight:

0.3~10mm LED light insulation silicone sheet

2.5W/m·K silicone insulation sheet

silicone insulation sheet 0.3~10mm

Product Description

0.3~10mm 2.5W/m·K blue color LED light insulation silicone sheet

Product features/Applications:

Good thermal conductivity; Soft and high compressibility, can be used as shock absorber.

Self-adhesive, no fastening device required; Easy to construct; Electrical insulation; Available in a variety of thickness options.

Heating power devices for computers, notebooks, electronic equipment, automobiles, solar energy, LED and other products.

PRODUCT PARAMETERS

Test item	Test method	Unit	PF200 Test value	PF250 Test value
Color			Blue	Blue
Thickness	ASTM D374	MM	0.3 ~ 10	0.3 ~ 10
Hardness	ASTM D2240	Shore 00	40 ~ 80	40 ~ 80
Proportion	ASTM D792	g/cm³	2.5	2.8
Tensile strength	ASTM D412	Map	0.29	0.25
Elongation at break	ASTM D412	%	45	60
Tear strength	GBT529-2008	KN/m	0.9	0.6
Breakdown voltage	ASTM D149	KV/mm	≥ 10	≥ 10
Mass resistivity	ASTM D257	Ω·cm	1×10¹²	1×10¹³
Temperature range	EN344	℃	-40 ~ 200	-40 ~ 200
Flame retardant rate	UL 94		V - 0	V - 0
Rate of weight loss	@150℃240H	%	≤ 0.3%	≤ 0.3%
Dielectric constant	ASTM D150	@1MHz	5.69	6.79
Teat conductivity coefficient	ISO 22007-2	W/m·K	2.0	2.5

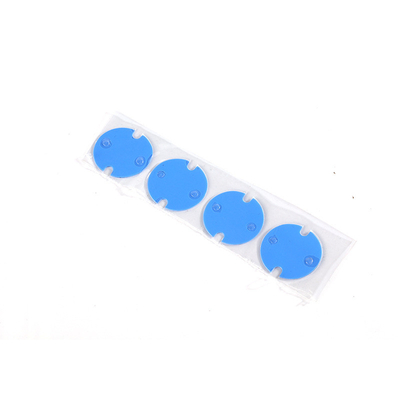

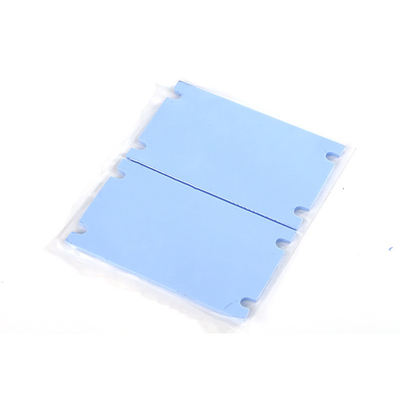

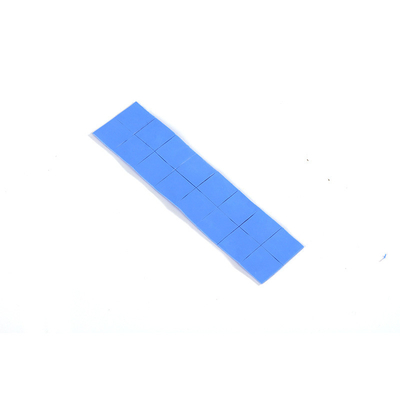

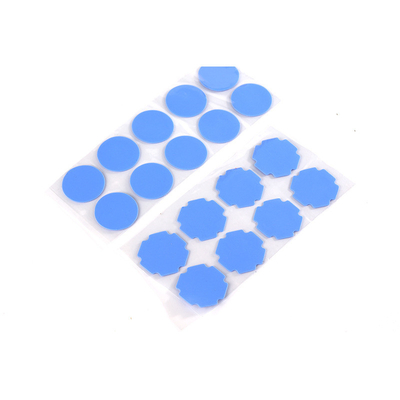

PRODUCT DISPLAY

PACKING OF TRANSPORT

0.3~10mm 2.5W/m·K Blue Color LED Light Insulation Silicone Sheet 2

COMPANY PROFILE

SHENZHEN PUFENG PACKING MATERIAL CO.,LTD (PUFENG) is an international machining manufacturer, who is devoting to the precision die-cutting machining field, designing adhesive products, insulation products, sourcing the best solutions and improving the quality and performance of products for customer.
The operation principle of PUFENG is "Running based on the market and sincerity,client and high quality come first." In order to provide a complete set of on-step products and service to customer, PUFENG has formed a strong technical team for worldwide customers to develop precision products. PUFENG’s quality principle is “Serve customers precisely on every tiny point of the demand from customer.” We hope to build up business relationships with you on the basis of equality and mutual benefit.

OUR SERVICES

1.Your enquiries about our products will be answered within 12 hours.

2.OEM or ODM projects are very welcome.

3.We can die cut or design products according to your requirements.shock-proof, shading, etc.

4.Provide perfect after-sales service, if you have questions, please contact us.

5.Pack according to your requirement and deliver on time.

COMMON PROBLEM

1.)How to order from Pufeng?
Just send us an email or call us.

2.)Do you provide free samples for testing?
Yes, we provide samples free of charge.

3.)How to deliver the goods?
We will advise you on the appropriate mode of transport, sea, air or express. Of course, if you have your own repeater, that's no problem.

4.)Can we trust the quality of Pufeng products?
Of course, don't worry. Our quality will definitely match the samples we send. If not, we will be responsible.

5.)What payment does Buffon accept?
For small quantities, we require 100% TT payment in advance; Other conditions, negotiable.

6.)What is the lead time of each order?
If the tape you ordered is in stock, we can deliver it within 1~3 days.
If die cutting is required, delivery time shall be determined by quantity.
