3W/m·K 0.3~10mm High Thermal Conductivity Electronic Components Heat Conducting Fin

Name: 3W/m·K 0.3~10mm High Thermal Conductivity Electronic Components Heat Conducting Fin
Brand: SZ PUFENG PACKING MATERIAL LIMITED
SKU: PF300
Price: 25.00 USD
Availability: InStock

Brand Name:	PF
Model Number:	PF300
MOQ:	1roll
Price:	USD1~USD50
Delivery Time:	3~5working days normally
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand:

Model:

PF300

Color:

Blue

Base Material:

Silica Gel

Fire Resistance:

V-0

Temperature- Resistance (℃):

-40 ~ 200（℃）

Characteristic:

Heat Dissipation

Specification:

Customizable

Packaging Details:

packing in cartons

Supply Ability:

10000roll/week

Highlight:

3W/m·K heat conducting fin

0.3~10mm heat conducting fin

High Thermal Conductivity heat conducting fin

Product Description

3W/m·K high thermal conductivity electronic components heat conduction plate

Product features/Applications:

High cost performance, high thermal conductivity, low thermal resistance.

High adherence, soft and elastic, easy to install, can be repeatedly disassembled.

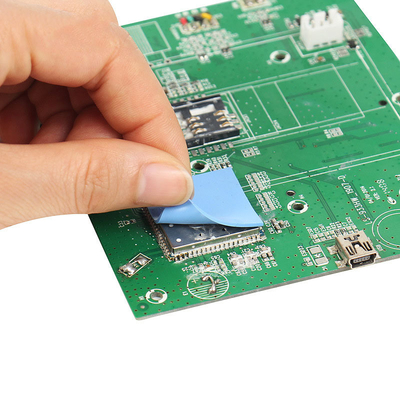

Used in electronic appliances, automotive machinery and other body as heat dissipation, insulation components, notebook computers, computer hosts, power devices, high-power LED lights and so on.

PRODUCT PARAMETERS

Test item	Test method	Unit	Parameter values
Color			Blue
Thickness	ASTM D374	MM	0.3 ~ 10
Hardness	ASTM D2240	Shore 00	40 ~ 80
Proportion	ASTM D792	g/cm³	3.0
Tensile strength	ASTM D412	Map	0.19
Elongation at break	ASTM D412	%	40
Tear strength	GBT529-2008	KN/m	0.9
Breakdown voltage	ASTM D149	KV/mm	≥ 10
Mass resistivity	ASTM D257	Ω·cm	1×10¹²
Temperature range	EN344	℃	-40~200
Flame retardant rate	UL 94		V-0
Rate of weight loss	@150℃240H	%	≤ 0.3%
Dielectric constant	ASTM D150	@1MHz	7.0
Teat conductivity coefficient	ISO 22007-2	W/m·K	3.0

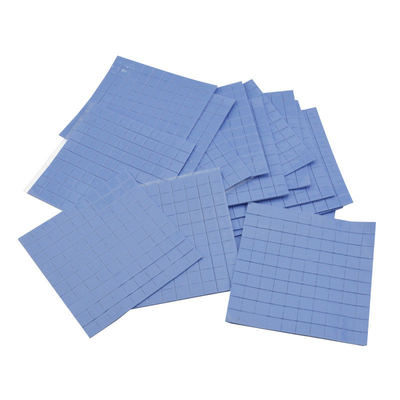

PRODUCT DISPLAY

PACKING OF TRANSPORT

3W/m·K 0.3~10mm High Thermal Conductivity Electronic Components Heat Conducting Fin 2

COMPANY PROFILE

SHENZHEN PUFENG PACKING MATERIAL CO.,LTD (PUFENG) is an international machining manufacturer, who is devoting to the precision die-cutting machining field, designing adhesive products, insulation products, sourcing the best solutions and improving the quality and performance of products for customer.

The operation principle of PUFENG is "Running based on the market and sincerity,client and high quality come first." In order to provide a complete set of on-step products and service to customer, PUFENG has formed a strong technical team for worldwide customers to develop precision products. PUFENG’s quality principle is “Serve customers precisely on every tiny point of the demand from customer.” We hope to build up business relationships with you on the basis of equality and mutual benefit.

OUR SERVICES

1.Your enquiries about our products will be answered within 12 hours.

2.OEM or ODM projects are very welcome.

3.We can die cut or design products according to your requirements.shock-proof, shading, etc.

4.Provide perfect after-sales service, if you have questions, please contact us.

5.Pack according to your requirement and deliver on time.

COMMON PROBLEM

1.)How to order from Pufeng?
Just send us an email or call us.

2.)Do you provide free samples for testing?
Yes, we provide samples free of charge.

3.)How to deliver the goods?
We will advise you on the appropriate mode of transport, sea, air or express. Of course, if you have your own repeater, that's no problem.

4.)Can we trust the quality of Pufeng products?
Of course, don't worry. Our quality will definitely match the samples we send. If not, we will be responsible.

5.)What payment does Buffon accept?
For small quantities, we require 100% TT payment in advance; Other conditions, negotiable.

6.)What is the lead time of each order?
If the tape you ordered is in stock, we can deliver it within 1~3 days.
If die cutting is required, delivery time shall be determined by quantity.
