BERGQUIST GAP PAD TGP HC5000S Heat Conduction Insulation Silicone Thermal Pad

Name: BERGQUIST GAP PAD TGP HC5000S Heat Conduction Insulation Silicone Thermal Pad
Brand: SZ PUFENG PACKING MATERIAL LIMITED
SKU: GAP PAD TGP HC5000S
Price: 25.00 USD
Availability: InStock

Brand Name:	BERGQUIST
Model Number:	GAP PAD TGP HC5000S
MOQ:	1roll
Price:	USD1~USD50
Delivery Time:	3~5working days normally
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand:

BERGQUIST

Model:

GAP PAD TGP HC5000S

Color:

Violet

Base Material:

Silicone

Reinforcement Carrier:

Fiberglass

Fire Resistance:

V-0

Temperature- Resistance (℃):

- 60 ~ 200（℃）

Specification:

Customizable

Packaging Details:

packing in cartons

Supply Ability:

10000roll/week

Highlight:

BERGQUIST silicone thermal pad

TGP HC5000S silicone thermal pad

Heat Conduction Insulation silicone thermal pad

Product Description

BERGQUIST GAP PAD TGP HC5000S heat conduction insulation silicone pad

Product features/Applications:

Thermal Conductivity: 5.0 W/m-K

High-compliance, low compression stress；Fiberglass reinforced for shear and tear resistance.

Used in telecommunications, Integrated circuits ,digital signal processing systems, consumer electronics, hot modules to radiators,Thermal management , TIM (Thermal Interface Material)

PRODUCT PARAMETERS

Test item	Test method	Unit	Imperial value
Color	Visual	-	Violet
Reinforcement Carrier	-	-	Fiberglass
Technology	-	-	Silicone
Thickness	ASTM D374	MM	0.508 ~ 3.175
Inherent Surface Tack	-	-	2
Hardness	ASTM D2240	Shore A	35
Heat Capacity	ASTM E1269	J/g-K	1.0
Density	ASTM D792	g/cc	3.2
Young's Modulus	ASTM D575	psi / kpa	17.5 / 121
Dielectric Breakdown Voltage	ASTM D149	Vac	5000
Volume Resistivity	ASTM D257	Ohm-meter	1×10¹⁰
Operating Temperature Range	-	℃	- 60 ~ 200
Flame retardant rate	UL 94	-	V - 0
Dielectric constant	ASTM D150	1000 MHz	8.0
Teat conductivity coefficient	ASTM D5470	W/m·K	5.0

Thermal Properties

Pressure
(psi)

Thermal Impedance

(°C-in²/W)

0.35

0.3

0.26

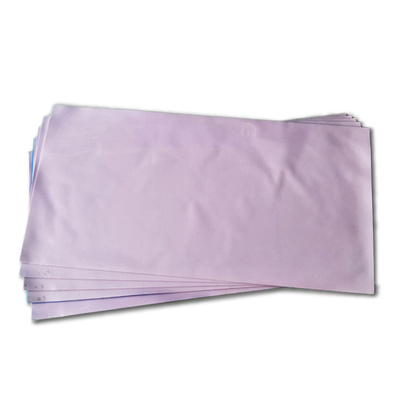

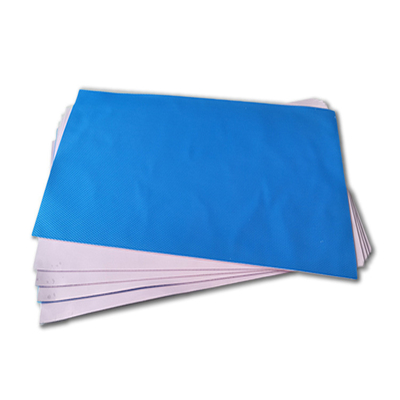

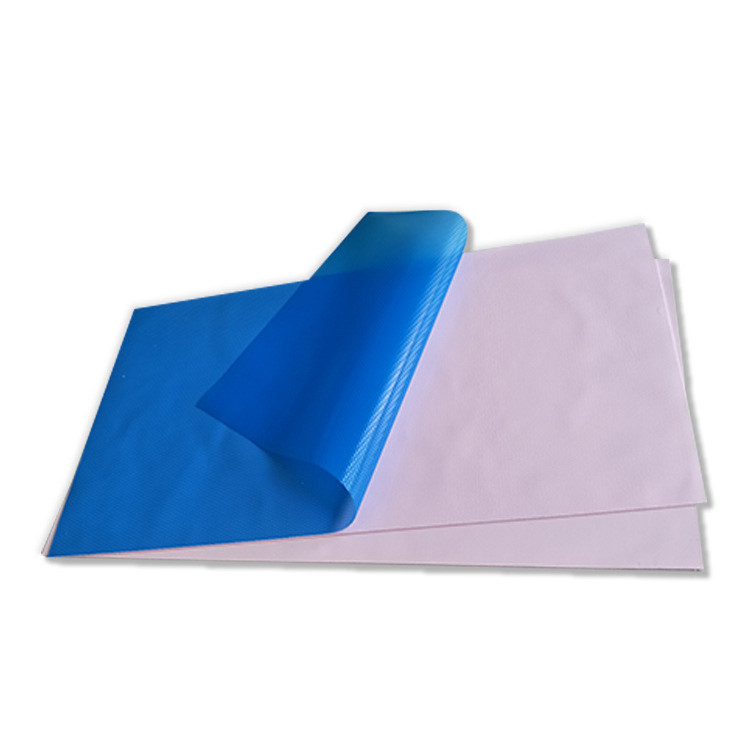

PRODUCT DISPLAY

PACKING OF TRANSPORT

BERGQUIST GAP PAD TGP HC5000S Heat Conduction Insulation Silicone Thermal Pad 2

COMPANY PROFILE

SHENZHEN PUFENG PACKING MATERIAL CO.,LTD (PUFENG) is an international machining manufacturer, who is devoting to the precision die-cutting machining field, designing adhesive products, insulation products, sourcing the best solutions and improving the quality and performance of products for customer.
The operation principle of PUFENG is "Running based on the market and sincerity,client and high quality come first." In order to provide a complete set of on-step products and service to customer, PUFENG has formed a strong technical team for worldwide customers to develop precision products. PUFENG’s quality principle is “Serve customers precisely on every tiny point of the demand from customer.” We hope to build up business relationships with you on the basis of equality and mutual benefit.

OUR SERVICES

1.Your enquiries about our products will be answered within 12 hours.

2.OEM or ODM projects are very welcome.

3.We can die cut or design products according to your requirements.shock-proof, shading, etc.

4.Provide perfect after-sales service, if you have questions, please contact us.

5.Pack according to your requirement and deliver on time.

COMMON PROBLEM

1.)How to order from Pufeng?
Just send us an email or call us.

2.)Do you provide free samples for testing?
Yes, we provide samples free of charge.

3.)How to deliver the goods?
We will advise you on the appropriate mode of transport, sea, air or express. Of course, if you have your own repeater, that's no problem.

4.)Can we trust the quality of Pufeng products?
Of course, don't worry. Our quality will definitely match the samples we send. If not, we will be responsible.

5.)What payment does Buffon accept?
For small quantities, we require 100% TT payment in advance; Other conditions, negotiable.

6.)What is the lead time of each order?
If the tape you ordered is in stock, we can deliver it within 1~3 days.
If die cutting is required, delivery time shall be determined by quantity.
