Thermal Conductive Pad
Created with Pixso. Bergquist Gap Pad 2500S20/TGP2400 Thermal Conductive Silicone Pad

Bergquist Gap Pad 2500S20/TGP2400 Thermal Conductive Silicone Pad

Brand Name: BERGQUIST
Model Number: Gap Pad 2500S20/TGP2400
MOQ: 1roll
Price: USD1~USD50
Delivery Time: 3~5working days normally
Payment Terms: T/T
Detail Information
Place of Origin:
China
Brand:
BERGQUIST
Model:
Gap Pad 2500S20/TGP2400
Color:
Light Yellow
Base Material:
Fiberglass
Fire Resistance:
V-0
Temperature- Resistance (℃):
- 60 ~ 200(℃)
Characteristic:
Uitra-low Tension'S-Class"' Thermal Resistance
Specification:
Customizable
Packaging Details:
packing in cartons
Supply Ability:
10000roll/week
Highlight:

Gap Pad 2500S20/TGP2400

,

Thermal conductive silicone pad

,

Bergquist Gap Pad 2500S20/TGP2400

Product Description

Bergquist Gap Pad 2500S20/TGP2400 Thermal conductive silicone pad




Product overview :
  • Gap Pad 2500S20 is a glass fiber based thermal conductive material with a thermal conductivity of 2.4W/m.K. The polymer material has unusual softness and elasticity. The use of glass fiber substrate is easier to process and die cutting, and the insulation effect and tear resistance are better.

Product features/Applications:

  • Thermal conductivity: 2.4 W/m-K.
  • Super fit, gel-like material; Reinforced glass fiber with puncture resistance, shear resistance and tear resistanc;Low 'S-Class" thermal resistance at ultra-low pressures.
  • Between processors and heat sinks,Between graphics chips and heat sinks,DVD and CDROM electronics cooling,Areas where heat needs to be transferred to a frame, chassis or other type of heat spreader.
PRODUCT PARAMETERS



Test item


Test method Unit

Imperial value

Meteic value


Color


Visual - Light Yellow Light Yellow


Reinforcement Carrier


- - Fiberglass Fiberglass


Thickness


ASTM D374 inch / MM 0.010 ~ 0.250 0.254 ~ 6.350


Inherent Surface
Tack

- 1 sided 2 2


Density


ASTM D792 g/cc 3.1 3.1


Heat Capacity


ASTM E1269 J/g-K 1.0 1.0


Hardness(1)



ASTM D2240 Shore 00 20 20


Young's Modulus
(2)

ASTM D575 psi / kPa 5 35


Dielectric Breakdown Voltage

ASTM D149 Vac > 3000 > 3000


Volume Resistivity


ASTM D257 Ohm-meter 1×1011 1×1011


Continuous Use Temp


- °F / ​℃ -76 ~ 392 -60 ~ 200


Flame retardant rate


UL 94 - V - 0 V - 0


Dielectric constant


ASTM D150 1000 MHz 6.6 6.6


Teat conductivity
coefficient

ASTM D5470 W/m·K 2.4 2.4


THERMAL PERFORMANCE vs. STRAIN


Deflection (% strain)

10 20 30

Thermal Impedance (°C-in2/W) 0.040" (3)

0.75 0.68 0.61

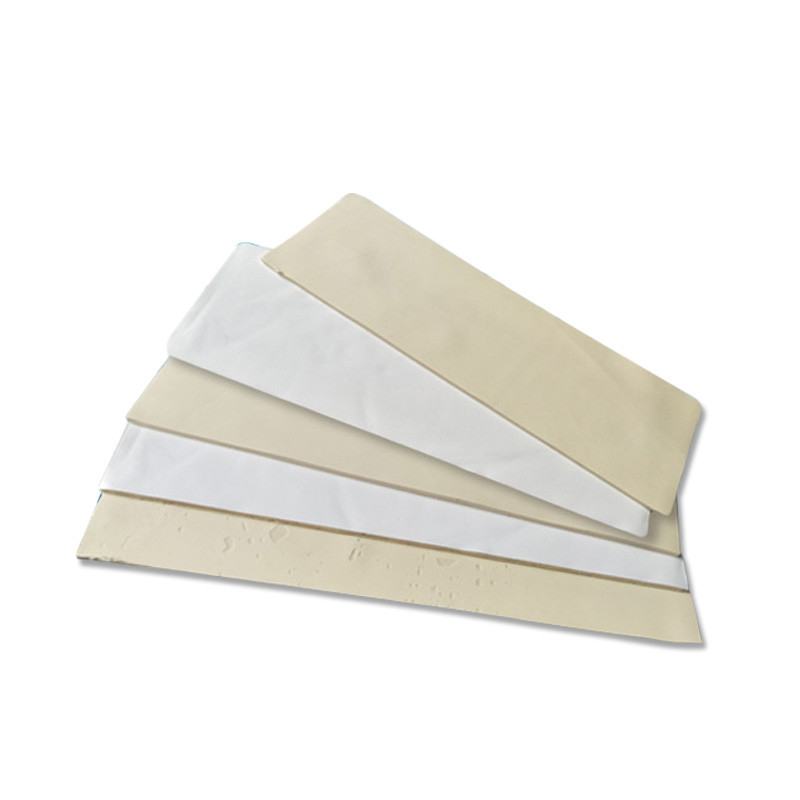

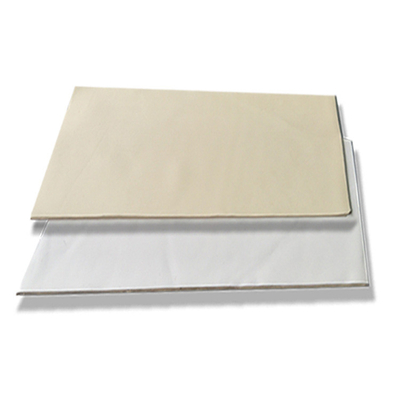

PRODUCT DISPLAY

Bergquist Gap Pad 2500S20/TGP2400 Thermal Conductive Silicone Pad 0Bergquist Gap Pad 2500S20/TGP2400 Thermal Conductive Silicone Pad 1

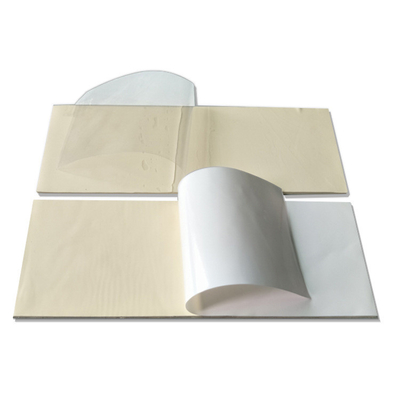

PACKING OF TRANSPORT


Bergquist Gap Pad 2500S20/TGP2400 Thermal Conductive Silicone Pad 2


COMPANY PROFILE


SHENZHEN PUFENG PACKING MATERIAL CO.,LTD (PUFENG) is an international machining manufacturer, who is devoting to the precision die-cutting machining field, designing adhesive products, insulation products, sourcing the best solutions and improving the quality and performance of products for customer.
The operation principle of PUFENG is "Running based on the market and sincerity,client and high quality come first." In order to provide a complete set of on-step products and service to customer, PUFENG has formed a strong technical team for worldwide customers to develop precision products. PUFENG’s quality principle is “Serve customers precisely on every tiny point of the demand from customer.” We hope to build up business relationships with you on the basis of equality and mutual benefit.

Bergquist Gap Pad 2500S20/TGP2400 Thermal Conductive Silicone Pad 3Bergquist Gap Pad 2500S20/TGP2400 Thermal Conductive Silicone Pad 4



OUR SERVICES


1.Your enquiries about our products will be answered within 12 hours.


2.OEM or ODM projects are very welcome.


3.We can die cut or design products according to your requirements.shock-proof, shading, etc.


4.Provide perfect after-sales service, if you have questions, please contact us.


5.Pack according to your requirement and deliver on time.


COMMON PROBLEM



1.)How to order from Pufeng?
Just send us an email or call us.

 2.)Do you provide free samples for testing?
Yes, we provide samples free of charge.

3.)How to deliver the goods?
We will advise you on the appropriate mode of transport, sea, air or express. Of course, if you have your own repeater, that's no problem.

4.)Can we trust the quality of Pufeng products?
Of course, don't worry. Our quality will definitely match the samples we send. If not, we will be responsible.

 5.)What payment does Buffon accept?
For small quantities, we require 100% TT payment in advance; Other conditions, negotiable.

6.)What is the lead time of each order?
If the tape you ordered is in stock, we can deliver it within 1~3 days.
If die cutting is required, delivery time shall be determined by quantity.
