Thermal Conductive Pad
Created with Pixso. Bergquist 3.0 W/m·K Gap Pad 3000S30/TGP3000 Insulated Silicone Gasket

Bergquist 3.0 W/m·K Gap Pad 3000S30/TGP3000 Insulated Silicone Gasket

Brand Name: BERGQUIST
Model Number: Gap Pad 3000S30/TGP3000
MOQ: 1roll
Price: USD1~USD50
Delivery Time: 3~5working days normally
Payment Terms: T/T
Detail Information
Place of Origin:
China
Brand:
BERGQUIST
Model:
Gap Pad 3000S30/TGP3000
Color:
Light Blue
Reinforcement CarrierCarrier:
Fiberglass
Fire Resistance:
V-0
Temperature- Resistance (℃):
- 60 ~ 200(℃)
Characteristic:
Electrical Insulation
Specification:
Customizable
Packaging Details:
packing in cartons
Supply Ability:
10000roll/week
Highlight:

3.0 W/m·K Gap Pad

,

3000S30/TGP3000 Gap Pad

,

insulated silicone gasket

Product Description

Bergquist 3.0 W/m·K Gap Pad 3000S30/TGP3000 insulated silicone gasket


Product overview :

  • Gap Pad 3000S30 is a thermal gap filler material that provides outstanding thermal conductivity at low pressures thanks to a new high thermal conductivity filler and low modulus resin formulation.

Product features/Applications:

  • Thermal conductivity: 3.0 W/m-K.
  • Soft, high obedience; Anti-puncture, anti-shear and anti-tear properties; Designed for low pressure applications.
  • Used in Processors,Server S-RAMs,Mass storage drives ,Wireline / wireless communications hardware,Notebook computers,BGA packages,Power conversion.
PRODUCT PARAMETERS



Test item


Test method Unit

Meteic value


Color


Visual - Light blue


Reinforcement Carrier


- - Fiberglass


Thickness


ASTM D374  MM 0.254 ~ 3.175


Inherent Surface
Tack

- 1 sided 2


Density


ASTM D792 g/cc 3.2


Heat Capacity


ASTM E1269 J/g-K 1.0


Hardness


ASTM D2240 Shore 00 30


Young's Modulus


ASTM D575 psi / kPa 26 / 180


Dielectric Breakdown Voltage

ASTM D149 Vac >3000


Volume Resistivity


ASTM D257 Ohm-meter 1×109


Continuous Use Temp


- ​℃ -60 ~ 200


Flame retardant rate


UL 94 - V - 0


Dielectric constant


ASTM D150 1000 MHz 7.0


Teat conductivity
coefficient

ASTM D5470 W/m·K 3.0

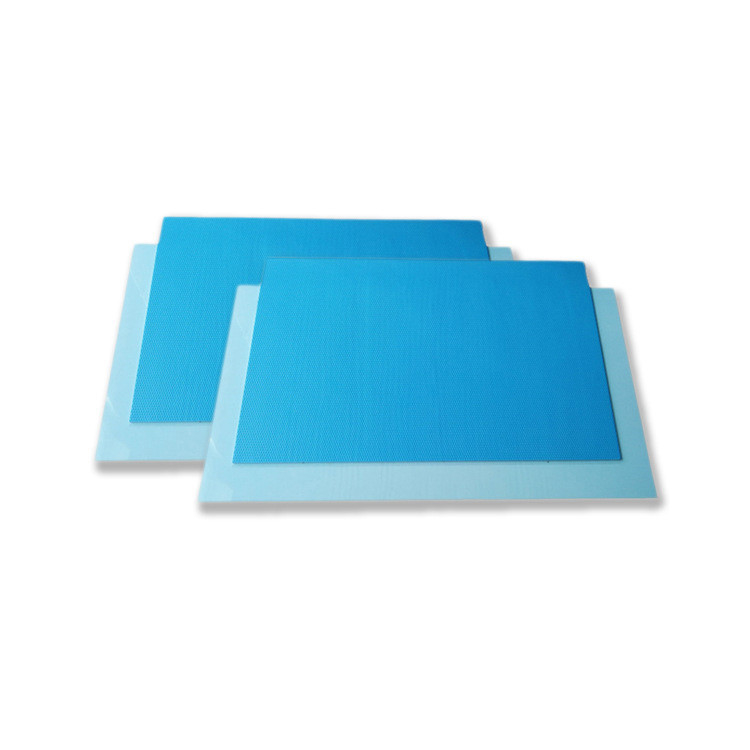

PRODUCT DISPLAY

Bergquist 3.0 W/m·K Gap Pad 3000S30/TGP3000 Insulated Silicone Gasket 0

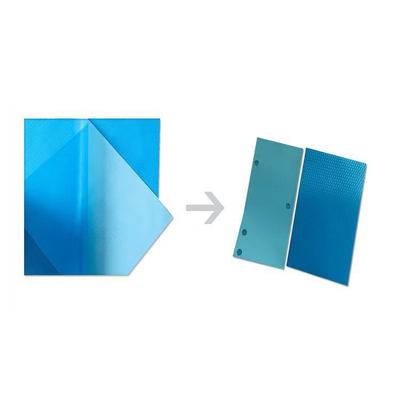

PACKING OF TRANSPORT


Bergquist 3.0 W/m·K Gap Pad 3000S30/TGP3000 Insulated Silicone Gasket 1


COMPANY PROFILE


SHENZHEN PUFENG PACKING MATERIAL CO.,LTD (PUFENG) is an international machining manufacturer, who is devoting to the precision die-cutting machining field, designing adhesive products, insulation products, sourcing the best solutions and improving the quality and performance of products for customer.
The operation principle of PUFENG is "Running based on the market and sincerity,client and high quality come first." In order to provide a complete set of on-step products and service to customer, PUFENG has formed a strong technical team for worldwide customers to develop precision products. PUFENG’s quality principle is “Serve customers precisely on every tiny point of the demand from customer.” We hope to build up business relationships with you on the basis of equality and mutual benefit.

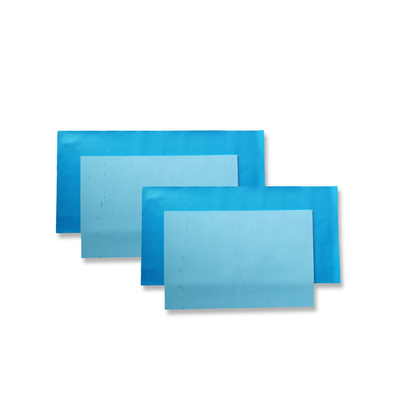

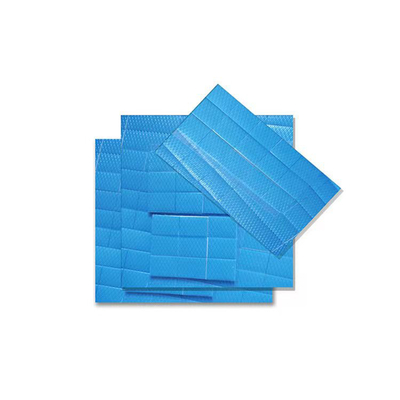

Bergquist 3.0 W/m·K Gap Pad 3000S30/TGP3000 Insulated Silicone Gasket 2Bergquist 3.0 W/m·K Gap Pad 3000S30/TGP3000 Insulated Silicone Gasket 3



OUR SERVICES


1.Your enquiries about our products will be answered within 12 hours.


2.OEM or ODM projects are very welcome.


3.We can die cut or design products according to your requirements.shock-proof, shading, etc.


4.Provide perfect after-sales service, if you have questions, please contact us.


5.Pack according to your requirement and deliver on time.


COMMON PROBLEM



1.)How to order from Pufeng?
Just send us an email or call us.

 2.)Do you provide free samples for testing?
Yes, we provide samples free of charge.

3.)How to deliver the goods?
We will advise you on the appropriate mode of transport, sea, air or express. Of course, if you have your own repeater, that's no problem.

4.)Can we trust the quality of Pufeng products?
Of course, don't worry. Our quality will definitely match the samples we send. If not, we will be responsible.

 5.)What payment does Buffon accept?
For small quantities, we require 100% TT payment in advance; Other conditions, negotiable.

6.)What is the lead time of each order?
If the tape you ordered is in stock, we can deliver it within 1~3 days.
If die cutting is required, delivery time shall be determined by quantity.
