Thermal Conductive Pad
Created with Pixso. Bergquist 0.9W/m·k SIL PAD TSP K900/SP K-4 Thermal Conductive Silicon Film

Bergquist 0.9W/m·k SIL PAD TSP K900/SP K-4 Thermal Conductive Silicon Film

Brand Name: BERGQUIST
Model Number: SIL PAD TSP K900/SP K-4
MOQ: 1roll
Price: USD1~USD50
Delivery Time: 3~5working days normally
Payment Terms: T/T
Detail Information
Place of Origin:
China
Brand:
BERGQUIST
Model:
SIL PAD TSP K900/SP K-4
Color:
Gray
Reinforcement CarrierCarrier:
Kapton
Fire Resistance:
VTM-0
Temperature- Resistance (℃):
- 60 ~ 180(℃)
Rubber-faced:
With Or Without Pressure-sensitive Adhesive
Specification:
Customizable
Packaging Details:
packing in cartons
Supply Ability:
10000roll/week
Highlight:

Bergquist Thermal Conductive Silicon Film

,

0.9W/m·k Thermal Conductive Silicon Film

Product Description

Bergquist 0.9W/m·k SIL PAD TSP K900/SP K-4 thermal conductive silicon film

Product overview:

  • Using a special Kaoton film substrate, it is a durable insulating gasket that can withstand high pressures and can completely replace thermal grease to conduct heat.

Product features/Applications :

  • Thermal impedance: 0.9W/m·k.
  • With high temperature resistance, high insulation strength, durable.
  • Used in computer motherboard, communication hardware, new energy vehicle equipment, power supply, chassis power conversion equipment and so on.
PRODUCT PARAMETERS



Test item


Test method Unit Meteic value

Color

Visual - Gray

Reinforcement Carrier

- - Kapton

Thickness

ASTM D374 MM 0.15 ± 0.025

Hardness

ASTM D2240 Shore A 90


Breaking Strength


ASTM D 1458 (lbs/inch) / (kN/m) 5


Elongation (%)


ASTM D412 % 40


Tensle Strength


ASTM D412 psi / MPa 35

Dielectric Breakdown Voltage
ASTM D149 Vac 6000

Volume Resistivity

ASTM D257 Ohm-meter 1×1012

Continuous Use Temp

- ℉ / ​℃ -60 ~ 180

Flame retardant rate

UL 94 - VTM - 0

Dielectric constant

ASTM D150 1000 MHz 5.0

Teat conductivity
coefficient
ASTM D5470 W/m·K 0.9a


THERMAL PERFORMANCEvs PRESSURE


Pressure
(psi)
10 25 50 100 200

TO-220 Thermal Performance

(°C/W)

3.66 3.43 3.13 2.74 2.42

Thermal Impedance

(°C-in2/W)

1.07 0.68 0.48 0.42 0.38

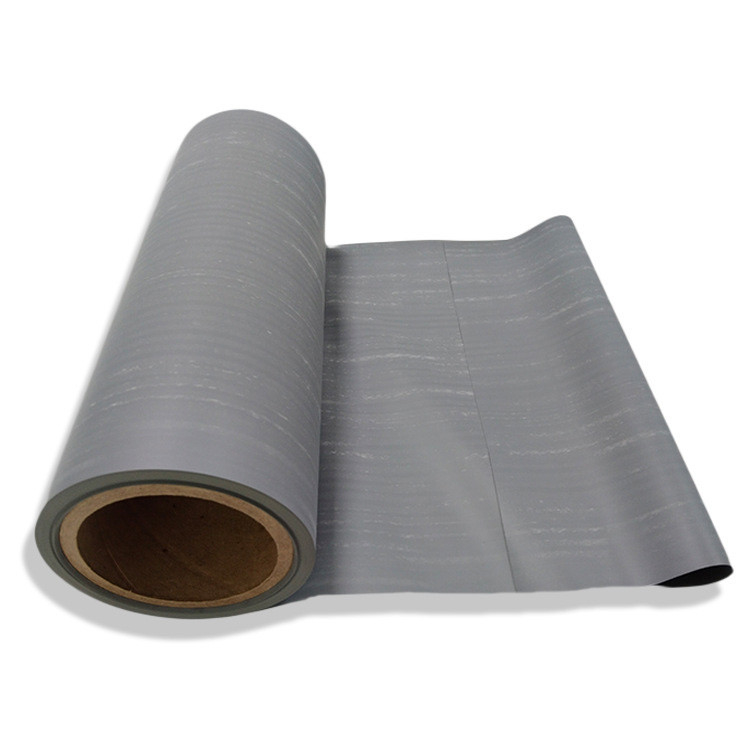

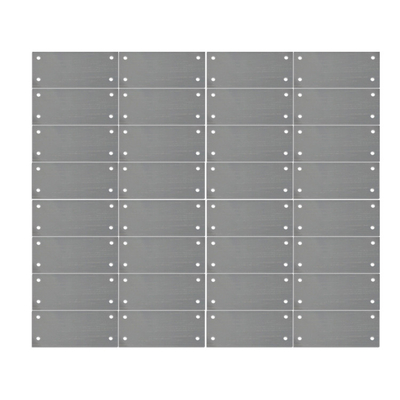

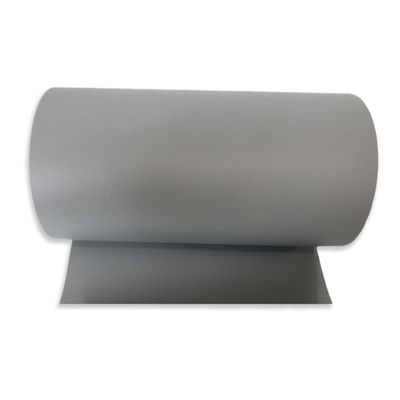

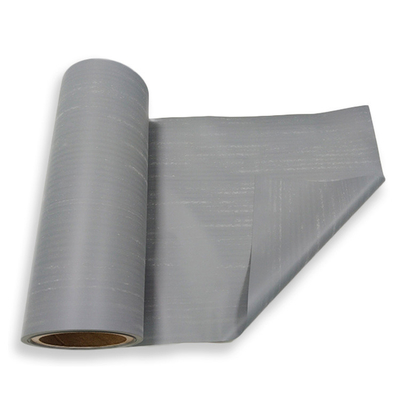

PRODUCT DISPLAY

Bergquist 0.9W/m·k SIL PAD TSP K900/SP K-4 Thermal Conductive Silicon Film 0Bergquist 0.9W/m·k SIL PAD TSP K900/SP K-4 Thermal Conductive Silicon Film 1


PACKING OF TRANSPORT


Bergquist 0.9W/m·k SIL PAD TSP K900/SP K-4 Thermal Conductive Silicon Film 2


COMPANY PROFILE


SHENZHEN PUFENG PACKING MATERIAL CO.,LTD (PUFENG) is an international machining manufacturer, who is devoting to the precision die-cutting machining field, designing adhesive products, insulation products, sourcing the best solutions and improving the quality and performance of products for customer.
The operation principle of PUFENG is "Running based on the market and sincerity,client and high quality come first." In order to provide a complete set of on-step products and service to customer, PUFENG has formed a strong technical team for worldwide customers to develop precision products. PUFENG’s quality principle is “Serve customers precisely on every tiny point of the demand from customer.” We hope to build up business relationships with you on the basis of equality and mutual benefit.

Bergquist 0.9W/m·k SIL PAD TSP K900/SP K-4 Thermal Conductive Silicon Film 3Bergquist 0.9W/m·k SIL PAD TSP K900/SP K-4 Thermal Conductive Silicon Film 4



OUR SERVICES


1.Your enquiries about our products will be answered within 12 hours.


2.OEM or ODM projects are very welcome.


3.We can die cut or design products according to your requirements.shock-proof, shading, etc.


4.Provide perfect after-sales service, if you have questions, please contact us.


5.Pack according to your requirement and deliver on time.


COMMON PROBLEM



1.)How to order from Pufeng?
Just send us an email or call us.

 2.)Do you provide free samples for testing?
Yes, we provide samples free of charge.

3.)How to deliver the goods?
We will advise you on the appropriate mode of transport, sea, air or express. Of course, if you have your own repeater, that's no problem.

4.)Can we trust the quality of Pufeng products?
Of course, don't worry. Our quality will definitely match the samples we send. If not, we will be responsible.

 5.)What payment does Buffon accept?
For small quantities, we require 100% TT payment in advance; Other conditions, negotiable.

6.)What is the lead time of each order?
If the tape you ordered is in stock, we can deliver it within 1~3 days.
If die cutting is required, delivery time shall be determined by quantity.
