Product Details
Place of Origin: Guangdong,China Mainland
Brand Name: PF
Certification: ROHS
Model Number: 00
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: USD 0.5 per piece
Packaging Details: Standard package for export
Delivery Time: 3~10 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000000 pieces per day
Product Name: |
Silicone Thermal Conductive Pad |
Thickness: |
0.25~15mm |
Thermal Conductivity: |
1W/mk-10W/mk |
Size: |
According To Customer Needs |
Application: |
High Temperature |
Color: |
Black,White,Blue |
Product Name: |
Silicone Thermal Conductive Pad |
Thickness: |
0.25~15mm |
Thermal Conductivity: |
1W/mk-10W/mk |
Size: |
According To Customer Needs |
Application: |
High Temperature |
Color: |
Black,White,Blue |

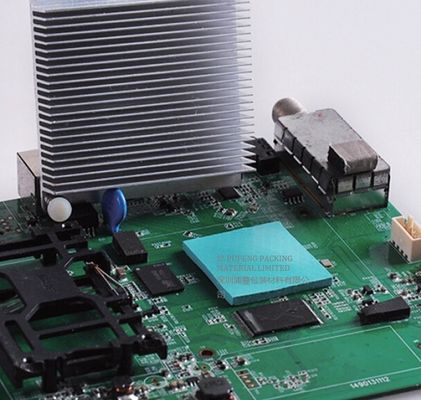

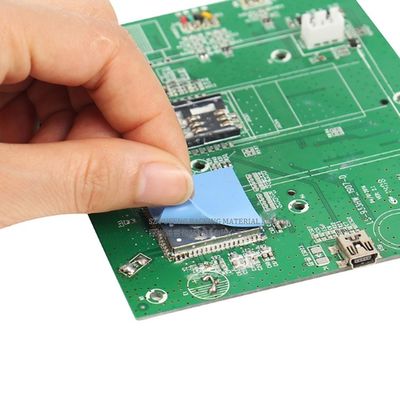

Self Adhesive silicone Thermal Conductive Pad 0.25mm Insulation
APPLICATION
* Communication equipment
* LED lighting
* Switch power supply
* Backlight module
* Medical equipment
* Mobile equipment
* Video equipment
* Household equipment
PHYSICAL PROPERTIES
| Property | Unit | Test Value | Test Method |
| Specific Gravity | g/cm3 | 2.3 | ASTM D792 |
| Harness | Shore A | 40°-60° | ASTM D2240 |
| Thermal Conductivity | W/m-k | 1.5 | ASTM D5470 |
| Fire Retardant Rating | - | V-0 | UL-94 |
| Specific Inductive Capacity (SIC) | Kgf/cm2 | 5.5 | ASTM D412 |
| Dielectric Breakdown | Kgf/cm | 0.5-7.4 | ASTM D1458 |
| Voltage Withstand | Kv/mm | ≥5.5 | - |
| Thermal Impedance | ℃-in2/W | 0.25 | ASTM D5470 |
| Temperature Resistance | ℃ | -60℃~220℃ | EN344 |
| Tension Changes | % | +50 | ASTM D573 |
| Extension Changes | % | -25 | ASTM D573 |
| Volume Changes | %(0.3/m) | +2% | 24 hr/25℃ |
| Thickness | mm | 0.25-12mm | ASTM D347 |
Note: The above technical information and data should be considered representative or typical only and should not be used for specification purposes.
SHELF LIFE
Product shelf life is 2 years from date of manufacture when stored at room temperature conditions (72°F [22°C] and 50% RH) in the products original packaging.
AVAILABLE SIZES
Available Sizes: 200mm*400mm, 300mm*300mm etc. (Can be Customized)
Custom Sizes: If you need customized sizes or die cut parts please feel free to contact sales representative.
Our Services
1. Your inquiry related to our product will be replied within 12 hours.
2. OEM or ODM projects are highly welcome.
3. We can die cut or design the products according to your requirements.
4. Perfect after-sale service offered,please contact us if you got question.
5. Packing as your request and promptly delivery
FAQ
1) How to order from PUFENG?
Just send us email or call us.
2) Do you offer the free sample for testing?
Yes, we offer thee samples for free.
3) How to ship the order?
We will suggest you the appropriate way of shipment, by sea, by air or by courier. Of course if you will have your own forwarder, that is no problem.
