|Adhesive:||Silicone||Adhesive Type:||Pressure Sensitive|
|Materia:||Insulation Polyimide Film||Feature:||Heat-Resistant|

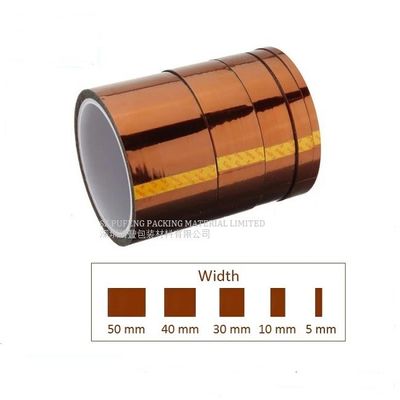

25 Micron high temperature kapton tape,
Silicone High Temperature Kapton Tape,
Heat Resistant Kapton Polyimide Tape
Good price 500mm kaptons gold color high temperature silicone adhesive tape

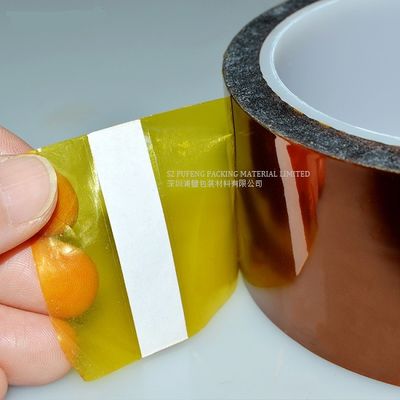

Polymide silicone adhesive tape is using polymide film as base material and coating silicone adhesive on one side which can resist high temperature in application. This tape is also called "kapton tape".
Nominal thickness(mm):0.025, 0.04, 0.05,0.075, 0.10, 0.125
Nominal width(mm): 500,914 and customized
It is Class H insulating material.
This product has excellent physical, chemical, and electrical properties, atomic radiation resistant, solvent resistant, low & high temperature resistant, It performs successfully in the wide range of temperature as low as -452F(-269℃) and as high as +500F(+260℃). Because of its unique excellent properties, it is the ideal choice among many applications.
|Rupture elongation||MD and TD||%||≥35|
|Contraction rate, MD and TD 150°||%||≤1.0|
|Electrical operating frequency strength||Average value||MV/m||≥150||≥130||≥110|
|Surface resistively, 200℃||Ω||≥1.0X1013|
|Relative dielectric factor constant 48-62Hz||3.5±0.4|
|Mdeia loss factor 48-62Hz||≤4.0X10-3|
|Long-term thermal resistant temp. index||≥18|

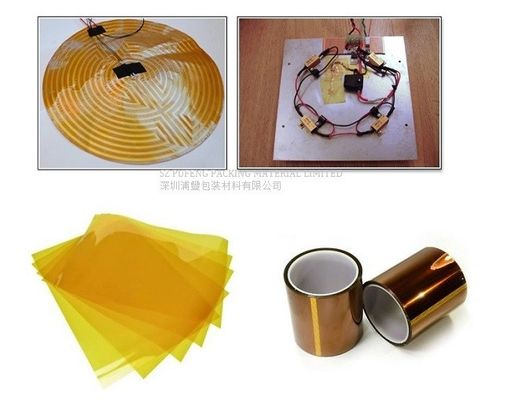

This product can be used in flexible prinyed circuits and as insulating materials of flat electric cables, electromagnetic wires and motors.
