3M™ 5419 Single-Sided Polyimide Film Tape - Extremely Low Electrostatic Discharge Performance

Name: 3M™ 5419 Single-Sided Polyimide Film Tape - Extremely Low Electrostatic Discharge Performance
Brand: SZ PUFENG PACKING MATERIAL LIMITED
SKU: 5419
Price: 25.00 USD
Availability: InStock

Brand Name:	3M
Model Number:	5419
MOQ:	1roll
Price:	USD1~USD50
Delivery Time:	3~5working days normally
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand:

Model:

5419

Color:

Gold

Adhesive:

Silicone

Adhesive Side:

Single Sided

Material:

Polyimide Film

Thickness:

0.07mm

Specialty:

Waterproof / Flame Retardant

Temperature:

-73℃ ~ 260℃

Specification:

635mm × 33m (Customizable)

Packaging Details:

packing in cartons

Supply Ability:

10000roll/week

Product Description

3M™ 5419 Single-Sided Polyimide Film Tape - Extremely Low Electrostatic Discharge Performance

Product Description :

3M™ Low Static Polyimide Film Tape 5419 is a Gold polyimide film-backed silicone adhesive tape with unique and extremely low electrostatic discharge properties.

By using proprietary technology, extremely low electrostatic discharge can be generated during unfolding and removal from the PWB. Conventional polyimide tapes usually generate voltages exceeding 10,000 volts during use, which may damage the electronic components installed on the board. 3M Tape 5419 overcomes this problem without any typical drawbacks of conventional "anti-static" or "non-static" tapes (such as variable adhesion and opacity).

Product Features :

High temperature resistance

High tensile strength

Good chemical resistance

Remove no residual glue

Comply with ROHS environmental protection halogen-free

Product Applications :

Suitable for wave soldering shielding of electronic circuit boards, protection of gold pins, insulation of high-end electrical appliances, insulation of motors, and fixation of positive and negative electrodes of lithium batteries.

PRODUCT PARAMETERS

Model

3M 5419

Colour

Gold

Adhesive

Silicone

Material

PI film

Tensile strength at Break

(lb/in)

33 lb/in

Temperature Use Range

(℃)

-73℃ ~ 260℃

Thickness

(mm)

0.07mm ,(Customizable)

Specification

635mm × 33m (Customizable)

Our services

Processing such as production, die-cutting, stamping, molding, compounding, and slitting can be carried out according to the customer's requirements. The width can be cut to the size specified by the customer.

Storage period

Under conditions of 21°C and 50% relative humidity, the original packaging state allows for a storage period of 24 months from the date of production.

PRODUCT DISPLAY

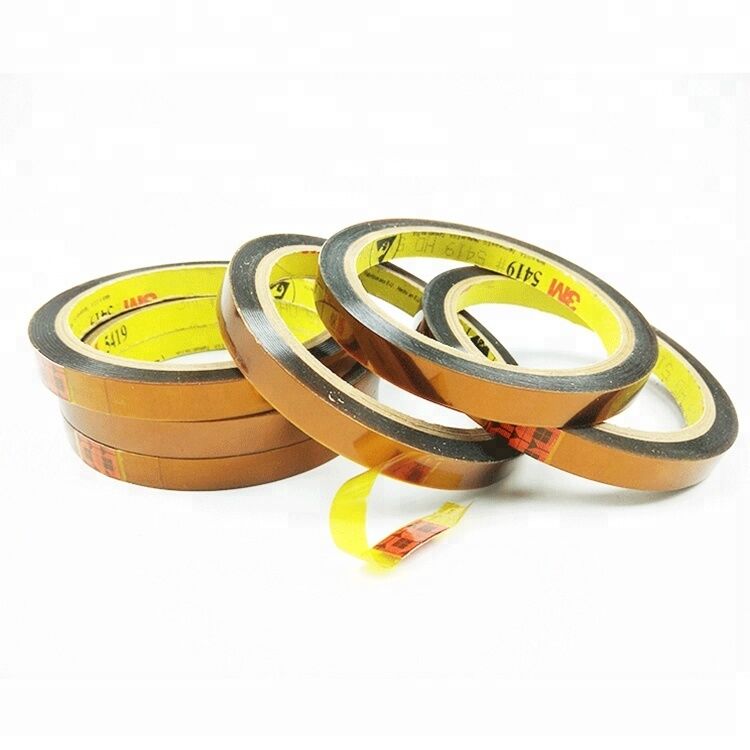

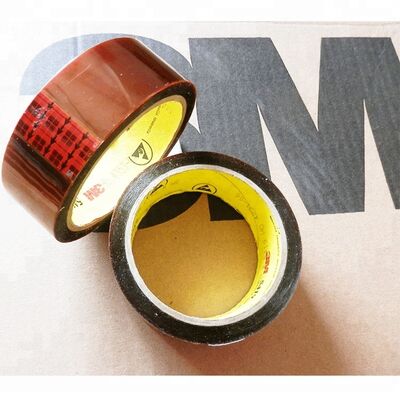

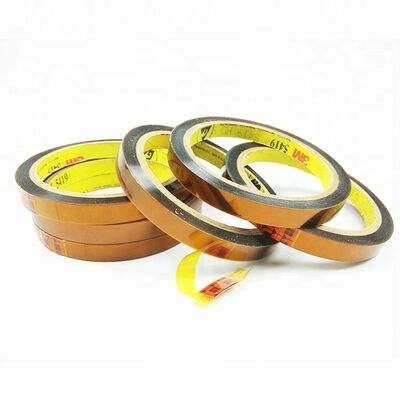

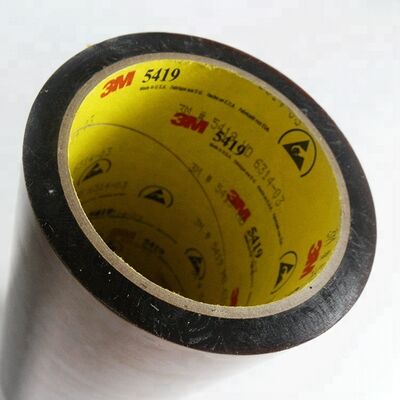

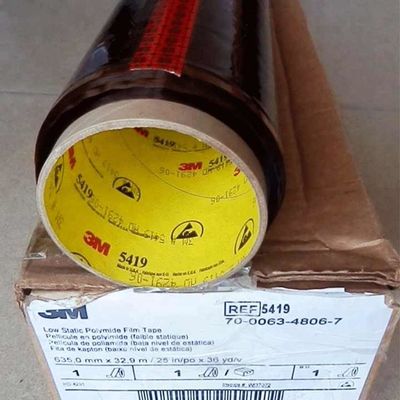

3M™ 5419 Single-Sided Polyimide Film Tape - Extremely Low Electrostatic Discharge Performance 0

3M™ 5419 Single-Sided Polyimide Film Tape - Extremely Low Electrostatic Discharge Performance 1

OUR SERVICES

1.Your enquiries about our products will be answered within 12 hours.

2.OEM or ODM projects are very welcome.

3.We can die cut or design products according to your requirements.

4.Provide perfect after-sales service, if you have questions, please contact us.

5.Pack according to your requirement and deliver on time.

COMMON PROBLEM

1.)How to order from Pufeng?
Just send us an email or call us.

2.)Do you provide free samples for testing?
Yes, we provide samples free of charge.

3.)How to deliver the goods?
We will advise you on the appropriate mode of transport, sea, air or express. Of course, if you have your own repeater, that's no problem.

4.)Can we trust the quality of Pufeng products?
Of course, don't worry. Our quality will definitely match the samples we send. If not, we will be responsible.

5.)What payment does Buffon accept?
For small quantities, we require 100% TT payment in advance; Other conditions, negotiable.

6.)What is the lead time of each order?
If the tape you ordered is in stock, we can deliver it within 1~3 days.
If die cutting is required, delivery time shall be determined by quantity.
