|Product Name:||Silicone Thermal Pad||Application:||High Temperature,High Voltage|
|Type:||Insulation Sheet,silicone Thermal Pad||Material:||Silicone,Thermal Interface Pad|
20mm Heatsink Thermal Pad,
0.2mm Heatsink Thermal Pad,
6KV silicone thermal pad
Soft Heat Sink Thermal Conductivity UL Certificated Thermal Silicone Pad
LED Thermal Pad

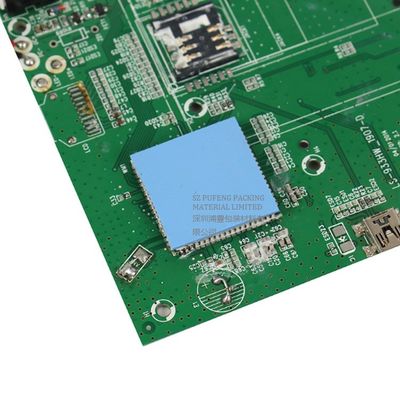

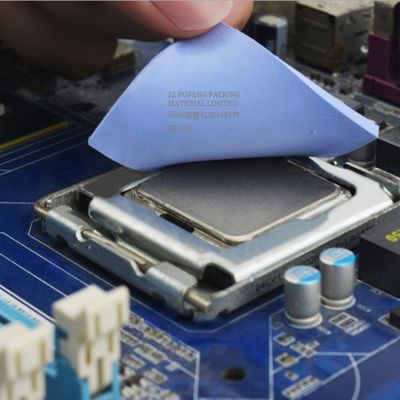

LED thermal pad is a high performance thermal conductive gap filling material, mainly used for thermal interface between electronic components and heat sink or product outer covering.
* Communication equipment
* LED lighting
* Switch power supply
* Backlight module
* Medical equipment
* Mobile equipment
* Video equipment
* Household equipment
* Thermal Conductivity: 1.2-8.0W/m.K
* Low Compression application
* Easy in assembly and reusable
* Superior Temperature endurance
* Excellent electrical isolation
* Double side in natural inherent tack
Parameters of silicone thermal pad
|PROPERTIES||UNITS||PFT 40||PFT 50||PFT 60||PFT 80||TEST METHOD|
|Color||/||Brown||Dark Red||Light Grey||Grey||Visual|
|Thermal impedance @1mm/20Psi||℃in2/W||0.36||0.21||0.2||0.15||ASTM D5470|
|Specific Gravity||g/cm3||2.8||3||3.2||3.4||ASTM D792|
|Volume Resistivity||ΩCM||1.0×1014Ω||1.0×1014Ω||1.0×1013Ω||1.0×1013Ω||ASTM D257|
|Thermal Conductivity||W/mk||4||5||6.5||8||ASTM D5470|
|Breakdown Voltage||KV/mm||≧9||≧10||≧10||≧8||ASTM D149|
|Dielectric Constant||@1MHz||5||5||5||7.5||ASTM D150|
|Thickness (±10%)||mm||0.5 ~5.0||0.5 ~5.0||0.5 ~5.0||0.5 ~5.0||ASTM D374|
|Hardness||Shore 00||50||55||60||70±10||ASTM D2240|
|Self-adhesive||/||Double sided||Doublesided||Double sided||Double sided|
|PROPERTIES||UNITS||PFT 12||PFT 15||PFT 20||PFT 25||PFT 30||TEST METHOD|
|Color||/||White Grey||White Grey||Grey||Orange||Blue||Visual|
|Thermal impedance @1mm/20Psi||℃in2/W||0.8||0.7||0.5||0.47||0.42||ASTMD5470|
|Specific Gravity||g/cm3||1.8||2||2.4||2.9||3||ASTM D792|
|Breakdown Voltage||KV/mm||≧10||≧10||≧10||≧10||≧9||ASTM D149|
|Dielectric Constant||@1MHz||5.5||5.5||6||5.5||5.6||ASTM D150|
|Thickness (±10%)||mm||0.2~10||0.2~10||0.2~10||0.3~5.0||0.3~5.0||ASTM D374|
|Self-adhesive||/||Double sided||Double sided||Double sided||Double sided||Double sided|
Product shelf life is 2 years from date of manufacture when stored at room temperature conditions (72°F [22°C] and 50% RH) in the products original packaging.
Available Sizes: 200mm*400mm, 300mm*300mm etc. (Can be Customized)
Custom Sizes: If you need customized sizes or die cut parts please feel free to contact sales representative.
Thermal conductive silicone pad is specially designed for the purpose of high performance thermal conductivity.

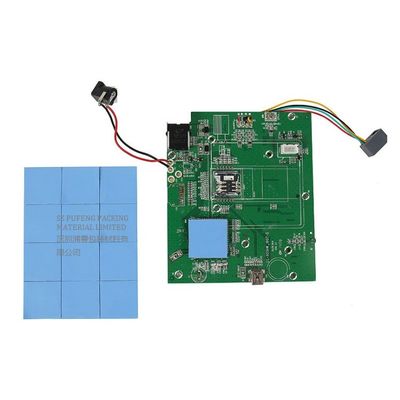

Pad standard size 400mm*200mm according to customer needs to cut the shapes.
Basic thickness 0.3mm/0.5mm/1mm/1.5mm/2mm/3mm, special size and thickness can be customized.
The product itself is slightly viscous, if need to strengthen the adhesive can be according to customer's requirement
Product color is mass production, if need special color can be adjusted to the actual situation
1. Your inquiry related to our product will be replied within 12 hours.
2. OEM or ODM projects are highly welcome.
3. We can die cut or design the products according to your requirements.
4. Perfect after-sale service offered,please contact us if you got question.
5. Packing as your request and promptly delivery
1) How to order from PUFENG?
Just send us email or call us.
2) Do you offer the free sample for testing?
Yes, we offer thee samples for free.
3) How to ship the order?
We will suggest you the appropriate way of shipment, by sea, by air or by courier. Of course if you will have your own forwarder, that is no problem.
4) Can we trust the quality of product from PUFENG?
Sure, do not worry about that. Our quality wills absolutely compliance to the sample we send. If not, we will take charge of that.
5) What payment PUFENG accepts?
For the small quantity, we request 100% advanced TT payment; other conditions, negotiable.
6) How about the lead time of per order?
If the tape you order have stock, we can ship out within 1~3 days.
If die-cuts requested, the lead time shall be according to the quantity.
