|Product Name:||Silicone Thermal Pad||Thickness:||0.25~15mm|
|Thermal Conductivity:||1W/mk-10W/mk||Size:||According To Customer Needs|
|Application:||High Temperature,High Voltage||Color:||Black,White,Blue|
|Rated Voltage:||6KV||Type:||Insulation Sheet,silicone Thermal Pad|
1W/Mk Thermal Conductive Pad,
10W/Mk Thermal Conductive Pad,
15mm thermal conductive silicone pad
Led battery silicon heat dissipation thermal pad for cell phone laptop

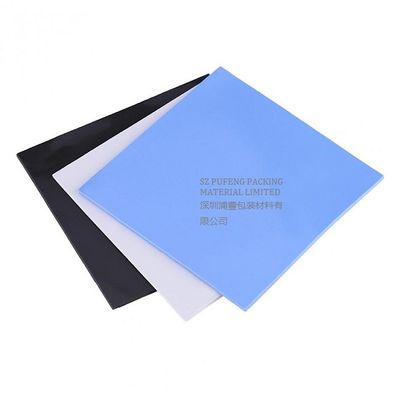

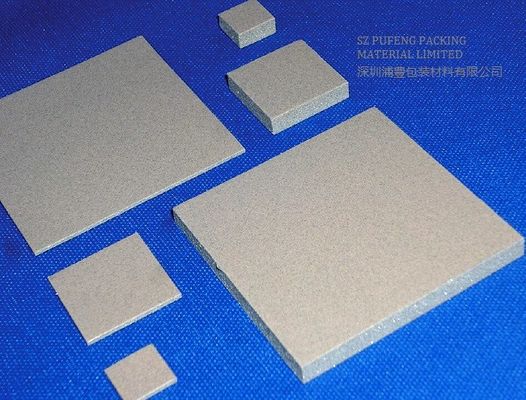

LED Thermal Pad
LED thermal pad is a high performance thermal conductive gap filling material, mainly used for thermal interface between electronic components and heat sink or product outer covering.
* Excellent thermal conductivity
* Self-adhesive, natural sticky, no extra surface added adhesives
* Soft and flexible
* Wide working temperature range
* Various thicknesses for choice
* Stable and Economy
* Communication equipment
* LED lighting
* Switch power supply
* Backlight module
* Medical equipment
* Mobile equipment
* Video equipment
* Household equipment
|Property||Unit||Test Value||Test Method|
|Specific Gravity||g/cm3||2.3||ASTM D792|
|Harness||Shore A||40°-60°||ASTM D2240|
|Thermal Conductivity||W/m-k||1.5||ASTM D5470|
|Fire Retardant Rating||-||V-0||UL-94|
|Specific Inductive Capacity (SIC)||Kgf/cm2||5.5||ASTM D412|
|Dielectric Breakdown||Kgf/cm||0.5-7.4||ASTM D1458|
|Thermal Impedance||℃-in2/W||0.25||ASTM D5470|
|Tension Changes||%||+50||ASTM D573|
|Extension Changes||%||-25||ASTM D573|
|Volume Changes||%(0.3/m)||+2%||24 hr/25℃|
Note: The above technical information and data should be considered representative or typical only and should not be used for specification purposes.
Product shelf life is 2 years from date of manufacture when stored at room temperature conditions (72°F [22°C] and 50% RH) in the products original packaging.
Available Sizes: 200mm*400mm, 300mm*300mm etc. (Can be Customized)
Custom Sizes: If you need customized sizes or die cut parts please feel free to contact sales representative.
