Product Details
Place of Origin: Guangdong,China Mainland
Brand Name: PF
Certification: ROHS
Model Number: 00
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: USD 0.5 per piece
Packaging Details: Standard package for export
Delivery Time: 3~10 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000000 pieces per day
Product Name: |
Silicone Thermal Pad |
Thickness: |
0.25~15mm |
Thermal Conductivity: |
1W/mk-10W/mk |
Size: |
According To Customer Needs |
Application: |
High Temperature,High Voltage |
Color: |
Black,White,Blue |
Product Name: |
Silicone Thermal Pad |
Thickness: |
0.25~15mm |
Thermal Conductivity: |
1W/mk-10W/mk |
Size: |
According To Customer Needs |
Application: |
High Temperature,High Voltage |
Color: |
Black,White,Blue |

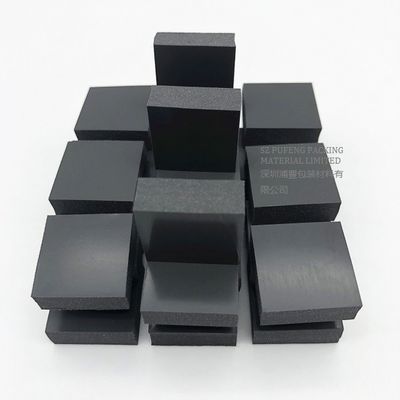

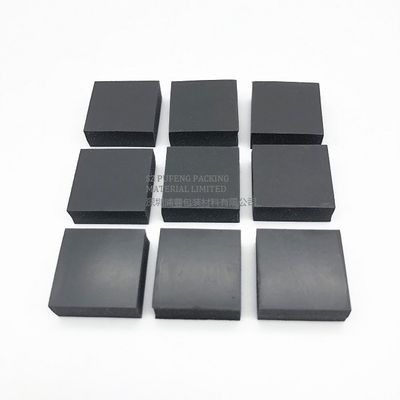

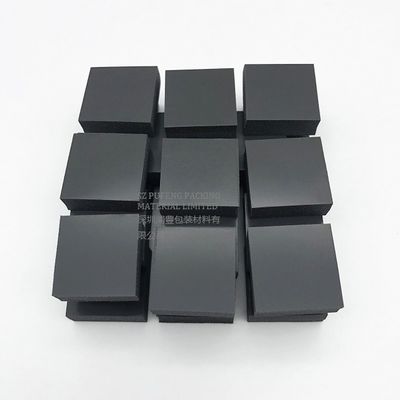

Insulation electric thermally conductive silicon thermal heating pad
LED Thermal Pad
LED thermal pad is a high performance thermal conductive gap filling material, mainly used for thermal interface between electronic components and heat sink or product outer covering.
FEATURES
* Excellent thermal conductivity
* Self-adhesive, natural sticky, no extra surface added adhesives
* Soft and flexible
* Wide working temperature range
* Various thicknesses for choice
* Stable and Economy
APPLICATION
* Communication equipment
* LED lighting
* Switch power supply
* Backlight module
* Medical equipment
* Mobile equipment
* Video equipment
* Household equipment
PHYSICAL PROPERTIES
| Property | Unit | Test Value | Test Method |
| Specific Gravity | g/cm3 | 2.3 | ASTM D792 |
| Harness | Shore A | 40°-60° | ASTM D2240 |
| Thermal Conductivity | W/m-k | 1.5 | ASTM D5470 |
| Fire Retardant Rating | - | V-0 | UL-94 |
| Specific Inductive Capacity (SIC) | Kgf/cm2 | 5.5 | ASTM D412 |
| Dielectric Breakdown | Kgf/cm | 0.5-7.4 | ASTM D1458 |
| Voltage Withstand | Kv/mm | ≥5.5 | - |
| Thermal Impedance | ℃-in2/W | 0.25 | ASTM D5470 |
| Temperature Resistance | ℃ | -60℃~220℃ | EN344 |
| Tension Changes | % | +50 | ASTM D573 |
| Extension Changes | % | -25 | ASTM D573 |
| Volume Changes | %(0.3/m) | +2% | 24 hr/25℃ |
| Thickness | mm | 0.25-12mm | ASTM D347 |
Note: The above technical information and data should be considered representative or typical only and should not be used for specification purposes.
SHELF LIFE
Product shelf life is 2 years from date of manufacture when stored at room temperature conditions (72°F [22°C] and 50% RH) in the products original packaging.
AVAILABLE SIZES
Available Sizes: 200mm*400mm, 300mm*300mm etc. (Can be Customized)
Custom Sizes: If you need customized sizes or die cut parts please feel free to contact sales representative.
Our Services
1. Your inquiry related to our product will be replied within 12 hours.
2. OEM or ODM projects are highly welcome.
3. We can die cut or design the products according to your requirements.
4. Perfect after-sale service offered,please contact us if you got question.
5. Packing as your request and promptly delivery
FAQ
1) How to order from PUFENG?
Just send us email or call us.
2) Do you offer the free sample for testing?
Yes, we offer thee samples for free.
3) How to ship the order?
We will suggest you the appropriate way of shipment, by sea, by air or by courier. Of course if you will have your own forwarder, that is no problem.
4) Can we trust the quality of product from PUFENG?
Sure, do not worry about that. Our quality wills absolutely compliance to the sample we send. If not, we will take charge of that.
5) What payment PUFENG accepts?
For the small quantity, we request 100% advanced TT payment; other conditions, negotiable.
6) How about the lead time of per order?
If the tape you order have stock, we can ship out within 1~3 days.
If die-cuts requested, the lead time shall be according to the quantity.
