Heat Resistant 50 Micron Kapton Polyimide Tape With Low Voltage Electrolytic 120C

Product Details

Place of Origin: Guangdong, China (Mainland)

Brand Name: PF

Certification: ROHS

Model Number: KT005

Payment & Shipping Terms

Minimum Order Quantity: 1 roll

Price: USD 1~150 / ROLL

Packaging Details: Standard export carton for polyimide tape

Delivery Time: 3~7 work days

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 10000 rolls per day

Get Best Price
Contact Now
Specifications
Highlight:

50 Micron Kapton Polyimide Tape

,

Heat Resistance Kapton Polyimide Tape

,

120C high temperature polyimide tape

Name:
Kapton Film / Polyimide Tape
Feature:
Heat Resistrance Anti-static
Temperature:
120 - 260 ℃
Material:
Polyimide,PI Film
Adhesive:
Silicone
Color:
Amber,golden,gold
Thickness:
50mic~100mic
Usage:
Temperature Resistance,ESD Protection,Golden Finger
Name:
Kapton Film / Polyimide Tape
Feature:
Heat Resistrance Anti-static
Temperature:
120 - 260 ℃
Material:
Polyimide,PI Film
Adhesive:
Silicone
Color:
Amber,golden,gold
Thickness:
50mic~100mic
Usage:
Temperature Resistance,ESD Protection,Golden Finger
Description
Heat Resistant 50 Micron Kapton Polyimide Tape With Low Voltage Electrolytic 120C

Free Sample Heat Resistance Silicone Adhesive kapton polyimide tape





Silicone Adhesive Polyimide Tape Heat Resistant High Temperature Polyimide Tape is based on polyimide film and coated with high performance silicone adhesive for temperature resistance and electrical insulation. It is wiely applied for motor insulation ,gold finger protection for PCB during wave soldering.


Item Unit Value Test method
Width mm 10-1000 Micrometer
Length m 10-100 Micrometer
Thickness mm 0.15 Micrometer
Short-term temperature 300 Thermostat
Long-term temperature 260 Thermostat
Adhesion to Steel N/25MM 7 ASTM D-3330
Tensile Strength N/25MM 115 ASTM D-897
Elongation at break (%) 50 Tensile tester
Breakdown Voltage KV 4.5 Voltage tester


Features


1.  Heat resistance

2.  High voltage insulation

3.  Acid and alkali resistant

4.  Low voltage electrolytic

5.  Amber (black is customized)

6.  Roll core can be made as 76mm and 38mm.





Applications


Protect golden finger when PCB board in soldering tin furnace, insulation of coil, wave-soldering protection, electrical insulation, high temperature resistance etc. No residue leaving after peeling off.







Product composition:



→ kapton film/polyimide tape



→silicone pressure sensitive adhesive







Application ideals:

Ideal for switch.motor .relay.cable.coils.capacitance and lithium battery.SMT.transformer fabrication and so on.



Thickness (mm) Width (mm)

Length

(m)

resistance

temperature

0.065 2-500 33 260(°C)
0.065 2-500 33 300(°C)
0.065 2-500 33 260(°C)
0.08 2-500 33 260(°C)
0.115 2-500 33 260(°C)
0.165 2-500 33 260(°C)
0.25 2-500 10 260(°C)



Storage condition and Shelf life:

The product should be stored in the ambient temperature, in the 20~80%RH.

You can obtain the best properties within 12 months after product date.



Product Show:

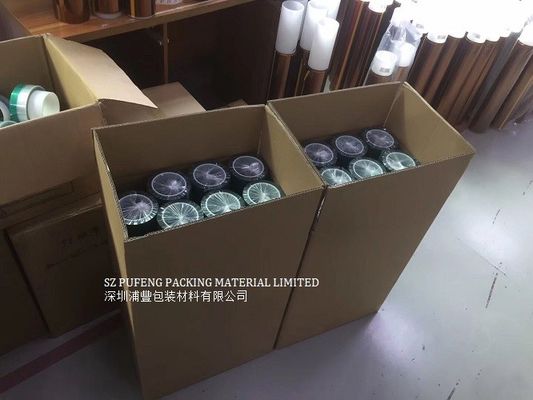

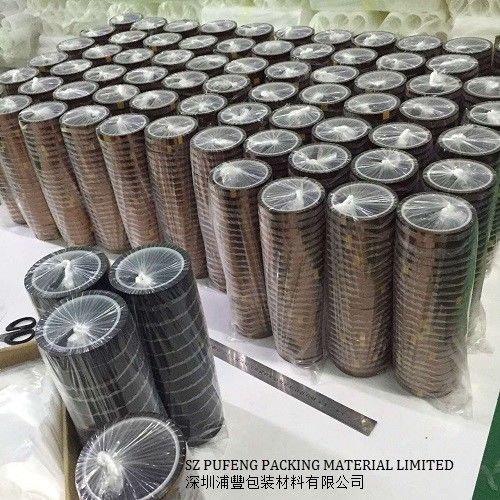

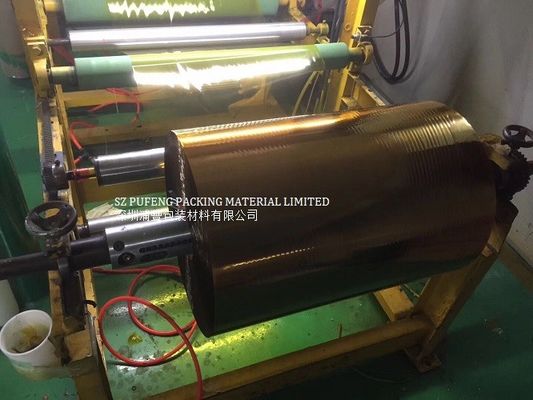

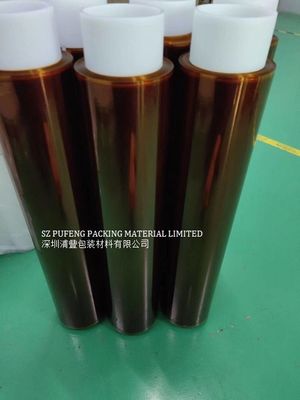

Heat Resistant 50 Micron Kapton Polyimide Tape With Low Voltage Electrolytic 120C 0Heat Resistant 50 Micron Kapton Polyimide Tape With Low Voltage Electrolytic 120C 1











Our Services



1. Your inquiry related to our product will be replied within 12 hours.



2. OEM or ODM projects are highly welcome.



3. We can die cut or design the products according to your requirements.



4. Perfect after-sale service offered,please contact us if you got question.



5. Packing as your request and promptly delivery



FAQ



1) How to order from PUFENG?

Just send us email or call us.



2) Do you offer the free sample for testing?

Yes, we offer thee samples for free.



3) How to ship the order?

We will suggest you the appropriate way of shipment, by sea, by air or by courier. Of course if you will have your own forwarder, that is no problem.



4) Can we trust the quality of product from PUFENG?

Sure, do not worry about that. Our quality wills absolutely compliance to the sample we send. If not, we will take charge of that.



5) What payment PUFENG accepts?

For the small quantity, we request 100% advanced TT payment; other conditions, negotiable.



6) How about the lead time of per order?

If the tape you order have stock, we can ship out within 1~3 days.

If die-cuts requested, the lead time shall be according to the quantity.



Heat Resistant 50 Micron Kapton Polyimide Tape With Low Voltage Electrolytic 120C 2
