Product Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: PF
Certification: ROHS
Model Number: KT008
Payment & Shipping Terms
Minimum Order Quantity: 1 roll
Price: USD 1~150 / ROLL
Packaging Details: Standard export carton for polyimide tape
Delivery Time: 3~7 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000 rolls per day
Name: |
Polyimide Tape / Kapton Tape |
Adhesive: |
Silicone |
Material: |
Polyimide Film |
Feature: |
Heat Resistrance |
Thickness: |
30mic~100mic |
Surface: |
Smooth,no Bubbles |
Color: |
Amber / Black |
Shape: |
Customized |
Adhesive Side: |
Single Sided |
Sample: |
Free Samples |
Name: |
Polyimide Tape / Kapton Tape |
Adhesive: |
Silicone |
Material: |
Polyimide Film |
Feature: |
Heat Resistrance |
Thickness: |
30mic~100mic |
Surface: |
Smooth,no Bubbles |
Color: |
Amber / Black |
Shape: |
Customized |
Adhesive Side: |
Single Sided |
Sample: |
Free Samples |
High Temperature Tape ESD Kapton Tape No Residue Anti Static Polyimide Tape
ESD Polymide Silicone Tape
Features:
High solvent resistance, Anti-static treatment on surface
Product Description:
Polymide heat-resistance single-sided tape is made of polymide backing material and silicone adhesive,which apply to sheilding and insulating popose in SMT field.
Application:
This product is used for printing circuit board,PC main board.
Protective golden finger when PCB board in soldering tin furnace,insulation of coil,wave-soldering protection,electrical insulation,high temperature resistance, etc.No residue leaving after tape removed.
| Backing material | PI film | |||||
| Product Structure | Color | Brown | ||||
| Standard size | Any width~500mm width * 33m length | |||||
| Total thickness | 0.08mm±0.005mm (Film 0.05mm+Adhesive 0.03mm) | |||||
| Iterm | PSTC standard | |||||
| Product Properties | Release force(to steel plate) | Min 5.5N/25mm. width | PSTC-101 | |||
| Tensile Strength | Min 115N/25mm. width | PSTC-31 | ||||
| Elongation at Break | Min 50% | PSTC-31 | ||||
| Anti-static value | 1061Ω-109Ω | PSTC-009 | ||||
| Breakdown Voltage | Min 5.0Kv | PSTC-51 | ||||
| Temp-resistant | 250℃ |

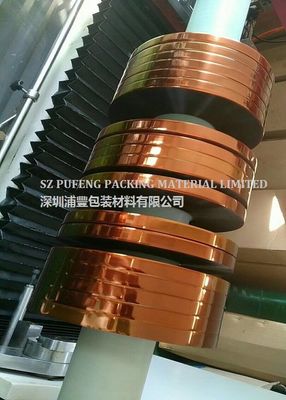

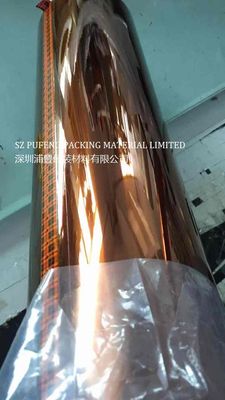

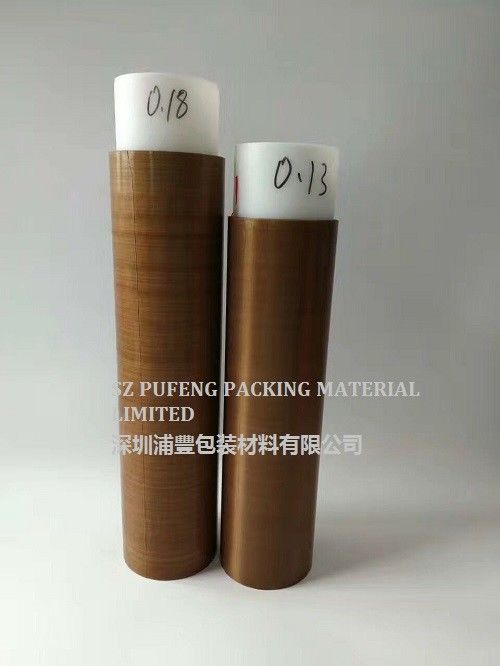

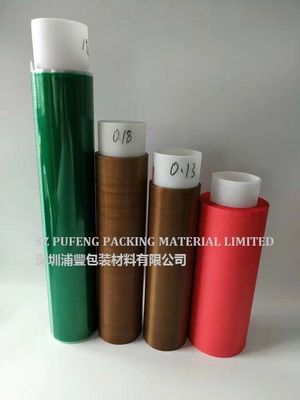

Product Show:
Our Services
1. Your inquiry related to our product will be replied within 12 hours.
2. OEM or ODM projects are highly welcome.
3. We can die cut or design the products according to your requirements.
4. Perfect after-sale service offered,please contact us if you got question.
5. Packing as your request and promptly delivery
FAQ
1) How to order from PUFENG?
Just send us email or call us.
2) Do you offer the free sample for testing?
Yes, we offer thee samples for free.
3) How to ship the order?
We will suggest you the appropriate way of shipment, by sea, by air or by courier. Of course if you will have your own forwarder, that is no problem.
4) Can we trust the quality of product from PUFENG?
Sure, do not worry about that. Our quality wills absolutely compliance to the sample we send. If not, we will take charge of that.
5) What payment PUFENG accepts?
For the small quantity, we request 100% advanced TT payment; other conditions, negotiable.
6) How about the lead time of per order?
If the tape you order have stock, we can ship out within 1~3 days.
If die-cuts requested, the lead time shall be according to the quantity.
