High Voltage 2.4w/mk 0.25mm-12mm Silicon Thermal Pad

Product Details

Place of Origin: Guangdong,China(Mainland)

Brand Name: PF

Certification: ROHS

Model Number: Silicone pad

Payment & Shipping Terms

Minimum Order Quantity: 10 square meters

Price: USD 0.5~20 per square meters

Packaging Details: Standard package for export

Delivery Time: 3~8 work days

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 1000000 square meters per day

Get Best Price
Contact Now
Specifications
Highlight:

12mm Silicon Thermal Pad

,

0.25mm silicon thermal pad

,

2.4w/Mk sil pad thermal conductivity

Material:
Silicone
Type:
Insulation Sheet
Application:
High Voltage
Tensile Strength:
30 ± 3 C㎡
Thickness::
0.25mm To 12mm
Rated Voltage::
≥5.5 Kv/mm
Sample:
Free Samples
Thickness:
As Required
Material:
Silicone
Type:
Insulation Sheet
Application:
High Voltage
Tensile Strength:
30 ± 3 C㎡
Thickness::
0.25mm To 12mm
Rated Voltage::
≥5.5 Kv/mm
Sample:
Free Samples
Thickness:
As Required
Description
High Voltage 2.4w/mk 0.25mm-12mm Silicon Thermal Pad

Thermal Conductive Silicone Pad for conducting heat and help by conforming to uneven surfaces



PRODUCT DESCRIPTION



Thermal Conductive Silicone Pad



The thermal conductive silicone pads are designed to conduct heat and help by conforming to uneven surfaces. They also help cushion items prone to breakage.







FEATURES

* Thermal conductivity: 2.4 w/m-k

* Size available: 200mm x 400mm, 300mm x 300mm, special size could be provided

* Low stress application

* Electrical isolating

* Flame retarding: V-0







APPLICATION

* Communicaiton equipment

* Mobile, video, networking equipment

* PC server/ work station

* LED lighting, backlight module, LCD-TV, CD/ROM-DVD cooling







PHYSICAL PROPERTIES

Test Item Unit Test Value Test Method
Specific Gravity g/cm³ 2.3 ASTM D792
Harness Shore A 40°-60° ASTM D2240
Thermal Conductivity W/m-k 1.5 ASTM D5470
Fire Retardant -- V-0 UL94
SIC Kgf/cm² 5.5 ASTM D412
Dielectric Breakdown Kgf/cm 0.5-7.4 ASTM D1458
Voltage Withstand Kv/mm >5.5 --

Note: The above technical information and data should be considered representative or typical only and should not be used for specification purposes.







SHELF LIFE

Product shelf life is 2 years from date of manufacture when stored at room temperature conditions (72°F [22°C] and 50% RH) in the products original packaging.





AVAILABLE SIZES

Width: Maximum width 41.70 inches (1060mm). (Can be customized)

Length: 25m/50m( Can be customized).

Custom Sizes: If you need customized sizes or die cut parts please free to contact NKS sales representative.

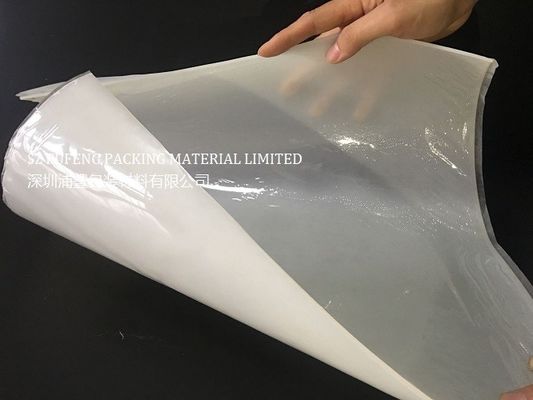

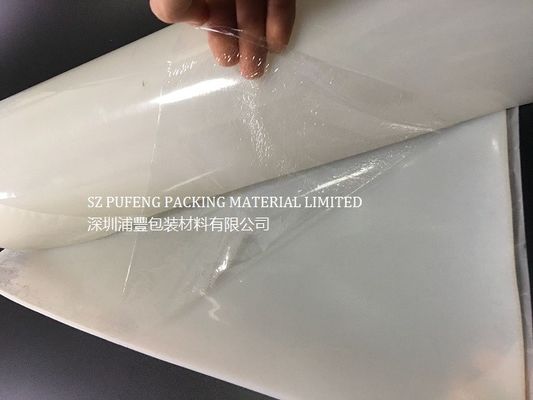

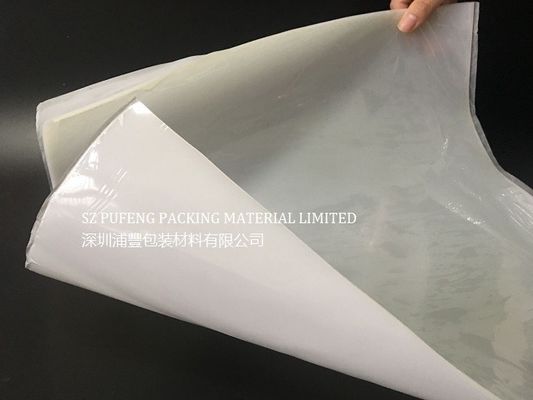

High Voltage 2.4w/mk 0.25mm-12mm Silicon Thermal Pad 0High Voltage 2.4w/mk 0.25mm-12mm Silicon Thermal Pad 1



Our Services



1. Your inquiry related to our product will be replied within 12 hours.



2. OEM or ODM projects are highly welcome.



3. We can die cut or design the products according to your requirements.



4. Perfect after-sale service offered,please contact us if you got question.



5. Packing as your request and promptly delivery









FAQ

1) How to order from PUFENG?

Just send us email or call us.



2) Do you offer the free sample for testing?

Yes, we offer thee samples for free.



3) How to ship the order?

We will suggest you the appropriate way of shipment, by sea, by air or by courier. Of course if you will have your own forwarder, that is no problem.



4) Can we trust the quality of product from PUFENG?

Sure, do not worry about that. Our quality wills absolutely compliance to the sample we send. If not, we will take charge of that.



5) What payment PUFENG accepts?

For the small quantity, we request 100% advanced TT payment; other conditions, negotiable.



6) How about the lead time of per order?

If the tape you order have stock, we can ship out within 1~3 days.

If die-cuts requested, the lead time shall be according to the quantity.
