Cellular Urethane Foam
Created with Pixso. Rogers PORON AquaPro 4701-37-14118-04 Polyurethane Foam Sheet | Ultra Soft IP68 Waterproof Sealing & Shock Absorption Gasket Material

Rogers PORON AquaPro 4701-37-14118-04 Polyurethane Foam Sheet | Ultra Soft IP68 Waterproof Sealing & Shock Absorption Gasket Material

Brand Name: Rogers
Model Number: 4701-37-14118-04
MOQ: 10
Price: USD0.01-0.5
Payment Terms: T/T
Detail Information
Place of Origin:
China
Certification:
Rohs
Material Type:
Ultra Soft Polyurethane Foam
Color:
Black
Operating Temperature:
-40°C To 90°C
Density:
224 Kg/m³
Compression Set:
< 10%
Compression Force Deflection:
1-5 Psi
Water Sealing Grade:
IP68
Standard Thickness:
3.00 Mm
Packaging Details:
carton packing
Supply Ability:
1000K Perday
Highlight:

PORON AquaPro polyurethane foam sheet

,

IP68 waterproof sealing gasket material

,

ultra soft shock absorption foam

Product Description
Product Overview: Rogers PORON AquaPro 4701-37-14118-04 Ultra Soft Polyurethane Foam

Rogers PORON® AquaPro™ 4701-37-14118-04 is a premium ultra-soft polyurethane foam sheet engineered for demanding sealing and cushioning applications. This 3mm foam delivers outstanding compression set resistance, high-efficiency shock absorption, and reliable IP68 waterproof sealing under low closure force. It is ideal for precision watertight gaskets, dust protection, and vibration damping in electronics, automotive, and industrial equipment. Custom die-cutting is available to match your exact specifications.

Key Features & Performance Benefits
  • IP68 Waterproof Sealing: Achieves excellent watertight and dustproof sealing under low closure force due to its ultra-soft texture, ensuring reliable protection for sensitive components.
  • Excellent Compression Set Resistance: Maintains original thickness and sealing performance over long-term use without collapsing, extending product service life.
  • Superior Shock Absorption: Provides high-efficiency cushioning, energy absorption, and vibration damping to protect delicate internal components from impact and mechanical stress.
  • Broad Temperature Stability: Performs reliably across a wide operating range from -40°C to 90°C, with intermittent tolerance up to 121°C.
Typical Applications
  • Consumer Electronics: Waterproof gaskets, dust seals, and display cushions for smartphones, smartwatches, and handheld devices.
  • Automotive & Transportation: Sealing and vibration isolation in automotive cameras, LiDAR systems, infotainment screens, and headlights.
  • Industrial & Telecom: Outdoor enclosures, base stations, and precision instruments requiring water ingress prevention and mechanical noise reduction.
Product Specifications
Physical Properties Typical Value
Material Type Ultra Soft Polyurethane Foam
Color Black
Standard Thickness 3.00 mm
Density 224 kg/m³
Water Sealing Grade IP68 / NEMA 4 Rated (under reliable compression)
Compression Force Deflection 1–5 psi (7–34 kPa)
Compression Set ≤ 10%
Operating Temperature -40°C to 90°C
Product Images

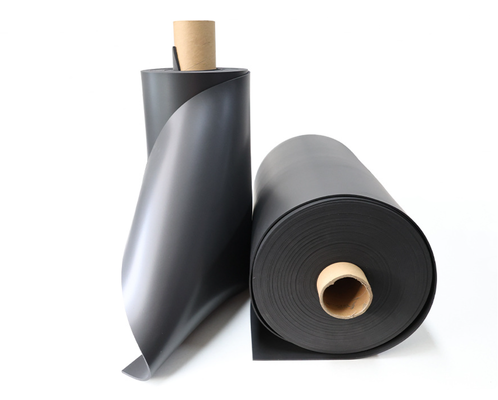

Rogers PORON AquaPro 4701-37-14118-04 ultra soft black polyurethane foam sheet roll for IP68 waterproof sealing gaskets

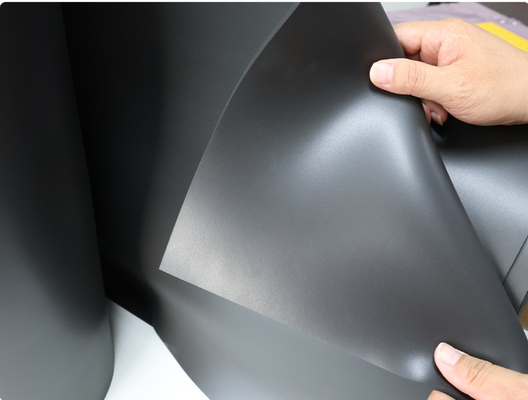

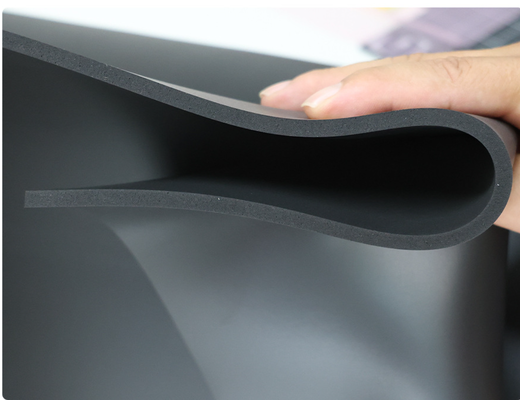

Close-up view of PORON AquaPro 4701-37-14118-04 3mm polyurethane foam sheet showing ultra soft texture for shock absorption and die-cut gasket applications

Company Profile: Shenzhen Pufeng Packing Material Co., Ltd.

SHENZHEN PUFENG PACKING MATERIAL CO., LTD (PUFENG) is an international machining manufacturer specializing in precision die-cutting, adhesive product design, insulation solutions, and sourcing optimal materials to enhance product quality and performance for customers worldwide.

In 2024, Pufeng established Shenzhen Jinchengyuan Electronic Materials Co., Ltd. to serve overseas markets. Founded in 2014, PUFENG operates two professional plants in mainland China dedicated to die-cutting machining and materials. The company is committed to becoming a leading manufacturer in precision die-cutting through creativity, innovation in advanced technology and management, state-of-the-art equipment, and top industry talent.

PUFENG’s operational principle is “Running based on the market and sincerity, client and high quality come first.” The company maintains a strong technical team to develop precision products for worldwide customers, with a quality principle of “Serve customers precisely on every tiny point of the demand from customer.”

We welcome opportunities to build business relationships based on equality and mutual benefit, and invite domestic and international partners to visit our facilities. Our team is dedicated to solving adhesive challenges and providing professional solutions and appropriate products.

Pufeng precision die-cutting manufacturing facility for polyurethane foam gaskets and adhesive products
Pufeng factory production line for custom die-cut PORON foam sealing and shock absorption materials

Our Services
  • Your enquiries about our products will be answered within 12 hours.
  • OEM or ODM projects are very welcome.
  • We can die cut or design products according to your requirements.
  • Provide perfect after-sales service — if you have questions, please contact us.
  • Pack according to your requirement and deliver on time.
Common Questions
1. How to order from Pufeng?

Just send us an email or call us.

2. Do you provide free samples for testing?

Yes, we provide samples free of charge.

3. How to deliver the goods?

We will advise you on the appropriate mode of transport — sea, air, or express. Of course, if you have your own forwarder, that is no problem.

4. Can we trust the quality of Pufeng products?

Of course, don’t worry. Our quality will definitely match the samples we send. If not, we will be responsible.

5. What payment methods does Pufeng accept?

For small quantities, we require 100% TT payment in advance; other conditions are negotiable.

6. What is the lead time of each order?

If the item you ordered is in stock, we can deliver it within 1–3 days. If die cutting is required, delivery time shall be determined by quantity.
