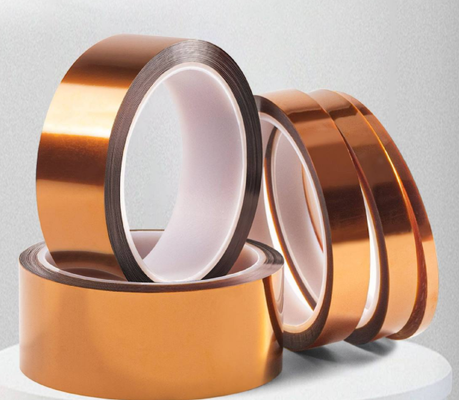

Kapton Polyimide Tape 50 Micron Silicone Adhesive Tape for High Temperature Applications Including Electrical Insulation

Name: Kapton Polyimide Tape 50 Micron Silicone Adhesive Tape for High Temperature Applications Including Electrical Insulation
Brand: SZ PUFENG PACKING MATERIAL LIMITED
SKU: -ES50
Price: 25.00 USD
Availability: InStock

Brand Name:	PUFENG
Model Number:	-ES50
MOQ:	1roll
Price:	USD1~USD50
Delivery Time:	3~5working days normally
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand:

PUFENG

Temperature Range:

260℃

Base Material:

PI Film

Temperature:

-73℃ ~ 260℃

Type:

Insulation Tape

Surface:

Smooth,no Bubbles

Use:

Transformer, Temperature Resistance

Adhesionto Steel:

5.5N/25mm

Application:

Electrical Insulation, Masking During Soldering, 3D Printing

Colour:

Amber

Adhesion Type:

Silicone

Width:

12 Mm

Temperature Resistance:

-269°C To 260°C (-452°F To 500°F)

Elongation At Break:

Approximately 50%

Specialty:

Insulation / High Temperature Resistance

Sample:

Free Samples

Packaging Details:

Each roll: seal transparent opp bag; Plastic bag; Carton box; Or as customer' requirements.

Supply Ability:

100000 Pieces Per Month

Highlight:

High Temperature PI Tape

Battery Pack Insulation Tape

Energy Storage Systems Polyimide Tape

Product Description

High Temperature PI Tape for Battery Pack Insulation and Energy Storage Systems

Product Overview

Industrial Grade 50μm Polyimide Kapton Tape with silicone adhesive for thermal protection and insulation applications. This custom die-cut tape is engineered for exceptional temperature resistance up to 260°C in demanding industrial environments.

Key Features

Heat Resistant — Up to 260°C
Electrically Insulating — Excellent dielectric performance
Flexible & Conformable — Easy to apply on complex surfaces
Tough & Durable — Strong resistance to tears and punctures
Chemical Resistant — Suitable for harsh working environments

Applications

Ideal for wave soldering and PCB masking, electrical insulation, precision component protection, motor insulation, and lithium battery component fixation. Widely applied across aviation, marine, aerospace, nuclear energy, and electrical & electronic industries.

Product Specifications

Brand	PUFENG
Color	Tawny / Amber
Model	PF050ES
Material	PI Film
Adhesive	Silicone
Thickness	0.05mm (Customizable)
Length	25mm, 33mm, 66mm
Width	1-500mm (Customizable)
Series	High temperature tape
Tearing method	A knife is required

Physical Parameters

Item	Unit	Parameter Values
Tensile Strength	N/25mm	115
Adhesion	N/25mm	1.5
Residue After Removal	—	No Residue
Breakdown Voltage	KV	55
Temperature	℃	260

We supply various sizes of thermal resistance tape to meet different application requirements. Custom die-cutting services for polyimide tape are also available. Contact us with your specific size requirements for prompt quotations.

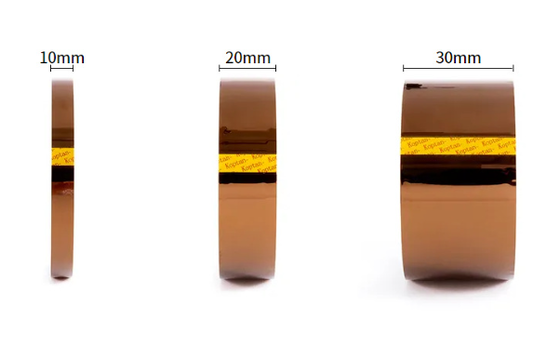

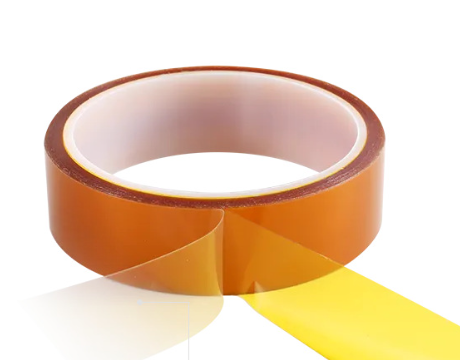

Product Display

Packaging & Transport
Company Profile
SHENZHEN PUFENG PACKING MATERIAL CO.,LTD (PUFENG) is an international machining manufacturer specializing in precision die-cutting solutions. We design and produce adhesive and insulation products, providing optimal solutions while enhancing product quality and performance for our customers.
Our operational principle is "Market-driven operation with sincerity, prioritizing client satisfaction and superior quality." PUFENG has established a strong technical team to develop precision products for global customers. Our quality principle emphasizes precise attention to every customer requirement detail.

Our Services
Prompt response to product inquiries within 12 hours
OEM and ODM project capabilities
Custom die-cutting and product design services
Comprehensive after-sales support
Custom packaging solutions and timely delivery
Frequently Asked Questions
How to order from Pufeng?
Simply contact us via email or phone to place your order.
Do you provide free samples for testing?
Yes, we provide complimentary samples free of charge.
How do you deliver the goods?
We recommend appropriate transport methods including sea, air, or express delivery. We can also accommodate your preferred shipping arrangements.
Can we trust the quality of Pufeng products?
Absolutely. Our product quality consistently matches the samples provided. We take full responsibility for quality assurance.
What payment methods does Pufeng accept?
For small quantities, we require 100% TT payment in advance. Other payment terms are negotiable based on order conditions.
What is the lead time for orders?
In-stock tape orders ship within 1-3 days. Die-cutting orders require additional time based on quantity and complexity.
