| Brand Name: | Rogers |
| Model Number: | BISCO HT-820 |
| MOQ: | 1roll |
| Price: | USD1~USD50 |
| Delivery Time: | 3~5working days normally |
| Payment Terms: | T/T |

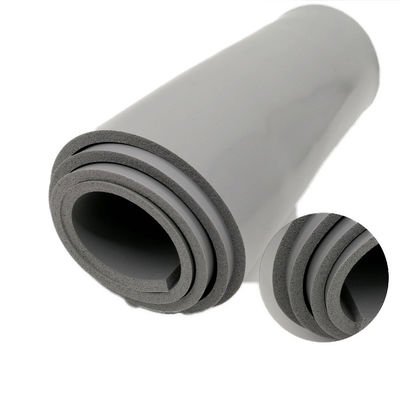

BISCO HT-820 Firm Cellular Silicone is a firm-grade silicone foam that provides enhanced durability and sealing.
LCD/battery pad, speaker shock absorption, environmental sealing, automotive dashboard/cup holder cushioning, EMI/RFI shielding auxiliary materials.
| Brand | Rogers |
| Series | BISCO |
| Model | HT-820 |
| Color | Gray |
| Hardness level | Hard (In the same series, 840 is Extra Firm; 800 medium hardness; 870 Soft) |
| Adhesive | With or without |
| Material | Silicone |
| Total Thickness | 0.79mm ~ 6.35mm (0.031 ~ 0.250 inches) |
| Shape | Customization based on the provided CAD and PDF format drawings |
| Temperature range | -55 ~ 200℃ (-67 ~ 392℉) |
| PROPERTY | TEST METHOD | TYPICAL VALUE |
|---|---|---|
| Density, kg/m³ (lb./ft³) | Internal | 384 (22) |
| Compression Force Deflection, kPa (psi) | ASTM D1056 | 106 (15.3) |
| Compression Set, % | ASTM D1056 100°C (212°F) / 22 hrs / 50% | 2.6 |
| Water Absorption, % | Internal 2" below water surface / 24 hrs / change in weight | 0.5 |
| Thermal Conductivity, W/m °K | ASTM D518 | 0.09 |
| Low Temperature Flex | ASTM D1056 -55°C (-67°F) / 5 hrs | Pass |
| Low Temperature Brittleness | ASTM D746 -55°C (-67°F) / 3 min | Pass |
SHENZHEN PUFENG PACKING MATERIAL CO.,LTD (PUFENG) is an international machining manufacturer, who is devoting to the precision die-cutting machining field, designing adhesive products, insulation products, sourcing the best solutions and improving the quality and performance of products for customer.
Our export products are diverse, including adhesive products, insulating products, foam and sponge, as well as other industrial raw materials. They are composed of multiple brands: 3M, Nitto, Sony, TESA, Teraoka, Bergquist, Rogers, INOAC, and our domestic brand, etc.
Welcome to come for consultation! We will do our best to solve all your connection problems and provide you with professional solutions and applicable products.
Just send us an email or call us.
Yes, we provide samples free of charge.
We will advise you on the appropriate mode of transport, sea, air or express. Of course, if you have your own repeater, that's no problem.
Of course, don't worry. Our quality will definitely match the samples we send. If not, we will be responsible.
For small quantities, we require 100% TT payment in advance; Other conditions, negotiable.
If the tape you ordered is in stock, we can deliver it within 1~3 days. If die cutting is required, delivery time shall be determined by quantity.
