Cellular Urethane Foam
Created with Pixso. Rogers BISCO HT-820 Silicone Foam Thickness 0.79 - 6.35mm,Density 384 kg/m³

Rogers BISCO HT-820 Silicone Foam Thickness 0.79 - 6.35mm,Density 384 kg/m³

Brand Name: Rogers
Model Number: BISCO HT-820
MOQ: 1roll
Price: USD1~USD50
Delivery Time: 3~5working days normally
Payment Terms: T/T
Detail Information
Place of Origin:
China
Brand:
ROGERS
Series:
BISCO
Model:
HT-820
Color:
Gray
Materials:
Silicone Foam
Thickness:
0.79mm ~ 6.35mm
Density:
384 Kg/m³
Feature:
Sealing Property
Specification:
Customizable
Packaging Details:
packing in cartons
Supply Ability:
10000roll/week
Highlight:

Rogers BISCO HT-820 silicone foam

,

high-density silicone foam sheet

,

cellular urethane foam insulation

Product Description
Rogers BISCO HT-820 Silicone Foam
Product Description

BISCO HT-820 Firm Cellular Silicone is a firm-grade silicone foam that provides enhanced durability and sealing performance. Thickness: 0.79 - 6.35mm, Density: 384 kg/m³

Product Features
  • High temperature resistance
  • Flame retardant
  • Low gas emission rate: Does not contain easily migratory plasticizers, and is non-corrosive to metals
  • High durability: Resistant to ultraviolet rays and ozone, with low compression deformation and strong sealing ability
Product Processing
  • Provide sheet materials, which can be processed by die-cutting to form custom-sized gaskets, washers, etc
  • With glue or without glue: 3M 467MP, 3M 9448, 3M 9495LE, Nitto, Sony
Product Applications

Car battery sealing, electronic equipment shock absorber pad, outdoor communication equipment dust-proof sealing, LED peripheral sealing

Product Parameters
Brand Rogers
Series BISCO
Model HT-820
Hardness level Hard (HT-800 medium hardness, HT-840 extremely hard)
Color Gray
Adhesive With or without
Material Silicone foam
Total Thickness 0.79mm ~ 6.35mm (0.031 ~ 0.250 inches)
Processing Customization based on the provided CAD and PDF format drawings
Temperature range -55℃ ~ 200℃
Performance Parameters
PROPERTY TEST METHOD TYPICAL VALUE
Density, kg/m³ (lb./ft³) Internal 384 (22)
Compression Force Deflection, kPa (psi) ASTM D1056 106(15.3)
Compression Set, % ASTM D1056 100°C (212°F) / 22 hrs / 50% 2.6
Water Absorption, % Internal 2" below water surface / 24 hrs / change in weight 0.5
Thermal Conductivity, W/m °K ASTM D518 0.09
Low Temperature Flex ASTM D1056 -55°C (-67°F) / 5 hrs Pass
Low Temperature Brittleness ASTM D746 -55°C (-67°F) / 3 min Pass
Product Display

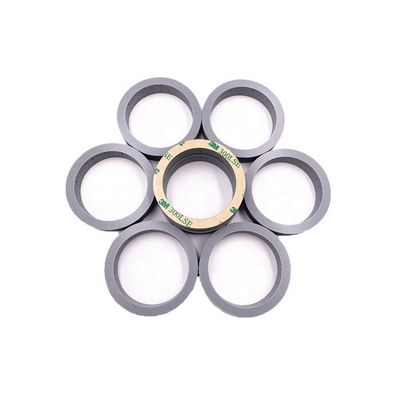

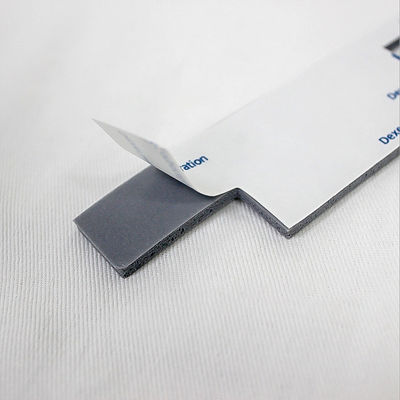

Rogers BISCO HT-820 Silicone Foam Thickness 0.79 - 6.35mm,Density 384 kg/m³ 0 Rogers BISCO HT-820 Silicone Foam Thickness 0.79 - 6.35mm,Density 384 kg/m³ 1
Packing & Transport

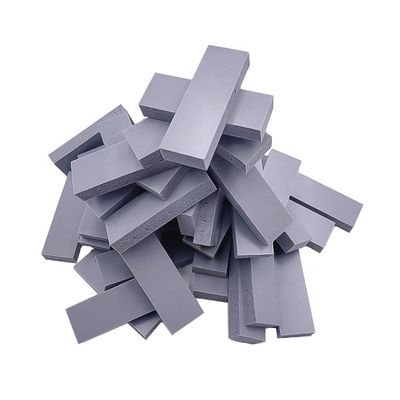

Rogers BISCO HT-820 Silicone Foam Thickness 0.79 - 6.35mm,Density 384 kg/m³ 2
Company Profile

SHENZHEN PUFENG PACKING MATERIAL CO.,LTD (PUFENG) is an international machining manufacturer, who is devoting to the precision die-cutting machining field, designing adhesive products, insulation products, sourcing the best solutions and improving the quality and performance of products for customer.

Our export products are diverse, including adhesive products, insulating products, foam and sponge, as well as other industrial raw materials. They are composed of multiple brands: 3M, Nitto, Sony, TESA, Teraoka, Bergquist, Rogers, INOAC, and our domestic brand, etc.

Welcome to come for consultation! We will do our best to solve all your connection problems and provide you with professional solutions and applicable products.

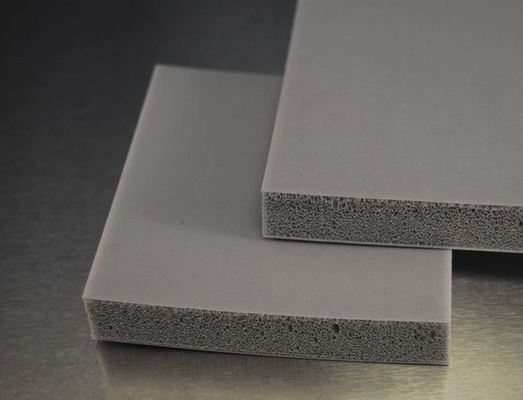

Rogers BISCO HT-820 Silicone Foam Thickness 0.79 - 6.35mm,Density 384 kg/m³ 3 Rogers BISCO HT-820 Silicone Foam Thickness 0.79 - 6.35mm,Density 384 kg/m³ 4
Our Services
  • Your enquiries about our products will be answered within 12 hours
  • OEM or ODM projects are very welcome
  • We can die cut or design products according to your requirements (shock-proof, shading, etc.)
  • Provide perfect after-sales service, if you have questions, please contact us
  • Pack according to your requirement and deliver on time
Common Questions
  • How to order from Pufeng?
    Just send us an email or call us.
  • Do you provide free samples for testing?
    Yes, we provide samples free of charge.
  • How to deliver the goods?
    We will advise you on the appropriate mode of transport, sea, air or express. Of course, if you have your own repeater, that's no problem.
  • Can we trust the quality of Pufeng products?
    Of course, don't worry. Our quality will definitely match the samples we send. If not, we will be responsible.
  • What payment does Pufeng accept?
    For small quantities, we require 100% TT payment in advance; Other conditions, negotiable.
  • What is the lead time of each order?
    If the tape you ordered is in stock, we can deliver it within 1~3 days. If die cutting is required, delivery time shall be determined by quantity.
