| Brand Name: | Tesa |
| Model Number: | 60214 |
| MOQ: | 10 |
| Price: | USD0.01-0.5 |
| Payment Terms: | T/T |
Tesa 60214 Gray Single-Sided Conductive Xyz Direction Self-Adhesive Foam Tape Die Cut Adhesive Tape
Product highlights
EMI shielding and grounding applications
Electrostatic release application
tesa® 60214 is a gray single-sided conductive self-adhesive foam tape. It is composed of highly compressible conductive foam substrate and conductive adhesive system.
tesa® 60214 Features:
Thickness: 300μm
Highly compressible foam substrate with low closing force and reliable recovery performance
High adherence to adhesive surface changes
Excellent electrical conductivity in xyz direction at high temperatures and high humidity
High adhesion in harsh environments
Excellent impact resistance and cushioning properties
Highly stable foam that is not easy to fall off particles
Product specification
| Characteristic rating | |
| Short-term high temperature resistance | 200 °C |
| Surface resistance x-y direction | 0.2 Ohm / square |
| Contact resistance z direction (initial) | 0.03 Ohm / square inch |
| Release force | easy |
| Steel surface bonding strength (after 14 days) | 8.3 N/cm |
| Technical characteristics | |
| Base material | Conductive foam |
| Total thickness | 300 µm |
| Release paper thickness | 120 µm |
| Release paper type | PE coated paper |
| Release paper color | White/blue logo |
| Adhesive type | Conductive acrylic acid |
| colour | gray |

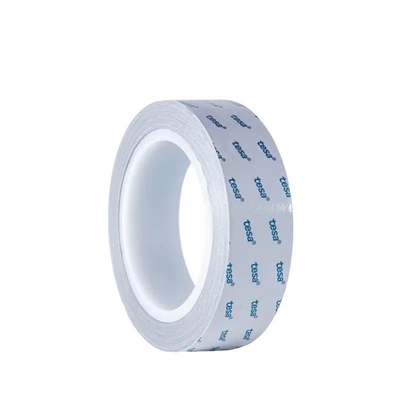

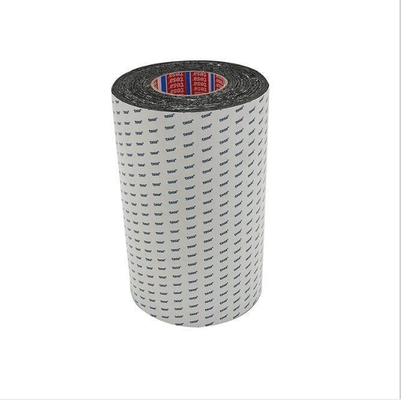

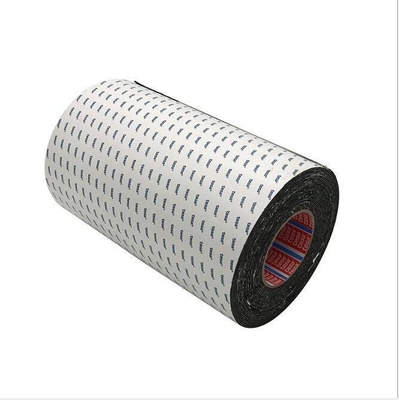

Product picture
Company introduction
SHENZHEN PUFENG PACKING MATERIAL CO.,LTD (PUFENG) is an international machining manufacturer, who is devoting
to the precision die-cutting machining field, designing adhesive products, insulation products, sourcing the best solutions and
improving the quality and performance of products for customer.Pufeng established a branch in 2024, Shenzhen Jinchengyuan
Electronic Materials Co., LTD., the main serves overseas market. PUFENG (oversea market division) was founded in 2014 and owns two professional plants supported serving for die-cutting
machining and die-cutting materials in China Mainland. In order to be the leading manufacturer in the precision die-cutting field, PUFENG encourages creativity and innovation in advanced technology and management, introduces the leading equipment
and attracts top talents in this field. The operation principle of PUFENG is "Running based on the market and sincerity,client and high quality come first." In order to
provide a complete set of on-step products and service to customer, PUFENG has formed a strong technical team for
worldwide customers to develop precision products. PUFENG’s quality principle is “Serve customers precisely on every tiny
point of the demand from customer.” We hope to build up business relationships with you on the basis of equality and mutual
benefit. We warmly welcome home and broad tovisit our company guidance, we will be happy to solve all your adhesive problems, to
rovide you with professional solutions and appropriate products. We believe that we can go further with your support!
|
|
