Die Cut Adhesive Tape
Created with Pixso. Die Cut Kapton High Temperature Tape 0.05mm Thickness with Silicone Adhesive for 260℃ Long-term Resistance

Die Cut Kapton High Temperature Tape 0.05mm Thickness with Silicone Adhesive for 260℃ Long-term Resistance

Brand Name: PUFENG
Model Number: PF050K
MOQ: 1roll
Price: USD1~USD50
Delivery Time: 3~5working days normally
Payment Terms: T/T
Detail Information
Place of Origin:
China
Brand:
PUFENG
Model:
PF050K
Color:
Tawny
Adhesive:
Silicone
Material:
Polyimide Film
Thickness:
50 Micron,Customizable
Temperature Range:
Long-term260℃ , Short-term300℃
Specification:
500mm × 33m (Customizable)
Packaging Details:
packing in cartons
Supply Ability:
10000roll/week
Highlight:

Polka dot Die Cut Kapton Tape

,

High Temperature Die Cut Kapton Tape

,

0.05mmPI Die Cut Kapton Tape

Product Description
Die Cut Kapton High Temperature Tape 0.05mmPI Polyimide Polka Dot Tape

Kapton tape is a high-performance polyimide film with single-sided silicone adhesive, designed for demanding high-temperature applications.

Product Features & Applications
  • Easy to peel without leaving glue residue
  • High temperature resistance, excellent tensile strength, and superior chemical resistance
  • Compliant with ROHS environmental protection and halogen-free standards
  • Ideal for insulation and bonding in electrical switches, motors, transformers, relays, cables, coils, capacitors, and lithium batteries at class H
Product Parameters
Model PF050K
Color Tawny
Adhesive Silicone
Material PI Film
Thickness 0.05mm (Customizable)
Shape Customizable according to customer requirements
Specification 500mm * 33m (Customizable)
Physical Parameters
Item Unit Parameter Values
Adhesion N/25mm 5
Tensile Strength N/25mm 100
Temperature 260
Surface Resistance Value - 10E6 - 10E9
Stripping Electrostatic Voltage V < 100
Product Display

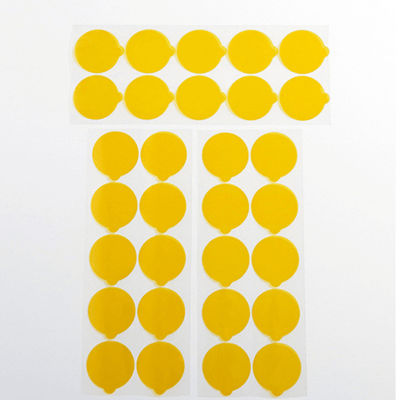

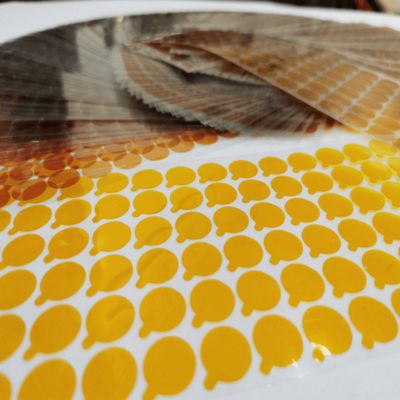

Die Cut Kapton High Temperature Tape 0.05mm Thickness with Silicone Adhesive for 260℃ Long-term Resistance 0 Die Cut Kapton High Temperature Tape 0.05mm Thickness with Silicone Adhesive for 260℃ Long-term Resistance 1
Packaging & Transport

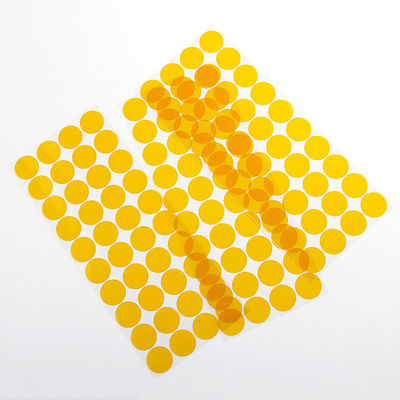

Die Cut Kapton High Temperature Tape 0.05mm Thickness with Silicone Adhesive for 260℃ Long-term Resistance 2
Company Profile

SHENZHEN PUFENG PACKING MATERIAL CO.,LTD (PUFENG) is an international machining manufacturer specializing in precision die-cutting solutions. We design adhesive and insulation products, source optimal solutions, and enhance product quality and performance for our customers.

Our operating principle is "Running based on the market and sincerity, client and high quality come first." We have built a strong technical team to develop precision products for worldwide customers, with a quality principle of "Serve customers precisely on every tiny point of the demand from customer."

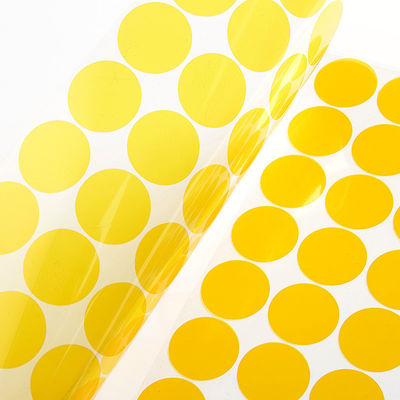

Die Cut Kapton High Temperature Tape 0.05mm Thickness with Silicone Adhesive for 260℃ Long-term Resistance 3 Die Cut Kapton High Temperature Tape 0.05mm Thickness with Silicone Adhesive for 260℃ Long-term Resistance 4
Our Services
  • Response to product enquiries within 12 hours
  • OEM or ODM projects welcome
  • Custom die cutting and product design according to your requirements
  • Comprehensive after-sales service and technical support
  • Custom packaging solutions and timely delivery
Frequently Asked Questions
  • How to order from Pufeng?
    Simply send us an email or call us directly.
  • Do you provide free samples for testing?
    Yes, we provide samples free of charge.
  • How to deliver the goods?
    We advise on appropriate transport modes (sea, air, or express) or accommodate your preferred shipping method.
  • Can we trust the quality of Pufeng products?
    Absolutely. Our quality matches the samples provided, and we take full responsibility for product performance.
  • What payment methods does Pufeng accept?
    For small quantities: 100% TT payment in advance. Other conditions are negotiable.
  • What is the lead time for orders?
    In-stock items: 1-3 days. Die-cut items: delivery time depends on quantity.
