TESA 60214/60215 Grey Color Conductive Foam Double-sided Tape

Name: TESA 60214/60215 Grey Color Conductive Foam Double-sided Tape
Brand: SZ PUFENG PACKING MATERIAL LIMITED
SKU: 60214/60215
Price: 25.00 USD
Availability: InStock

Brand Name:	TESA
Model Number:	60214/60215
MOQ:	1roll
Price:	USD1~USD50
Delivery Time:	3~5working days normally
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand:

TESA

Model:

60214/60215

Base Material:

Conductive Foam

Color:

Gray

Backing:

PE Coated Paper

Adhesive:

Conductive Acrylic Acid

Total Thickness:

300μm / 500μm

Short-term High Temperature:

200℃

Characteristic:

XYZ Direction Conductivity

Specification:

300mm × 50m (Customizable)

Packaging Details:

packing in cartons

Supply Ability:

10000roll/week

Highlight:

TESA 60214/60215 double-sided tape

Conductive foam double-sided tape

Conductive Foam double sided mounting tape

Product Description

TESA 60214/60215 Grey color conductive foam double-sided tape

Product features :

With highly compressible foam base material, low closing force, high adhesion, high adhesion, impact resistance and buffering performance

High stability foam technology that is not easy to fall off particles

Excellent performance in a variety of harsh environments

Product Application :

EMI shielding in electronic products

EMI shielding applications in automotive electronics

Lead covering of communication cables

A metal cover for the outside of electronic equipment

PRODUCT PARAMETERS

Model

Base material

Color

Adhesive

Total thickness

(μm)

Adhesive strength to steel surface

(after 14 days)

Specification

TESA 60214

Conductive foam

Gray

Acrylic acid

300μm

8.3 N/m

300mm × 50m

TESA 60215

Conductive foam

Gray

Acrylic acid

500μm

8.3 N/m

300mm × 50m

PROPERTIES / PERFORMANCE VALUES

Contact resistance z direction (initial)

(Ohm / square inch)

0.03

Ohm / square inch

Short-term high temperature resistance

(℃)

200℃

Surface resistance x-y direction (mOhm / square)

0.2

mOhm / square

Release of liner

Easy

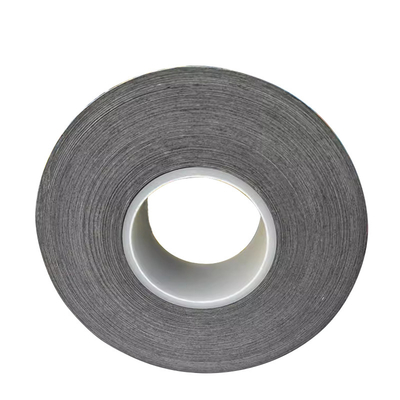

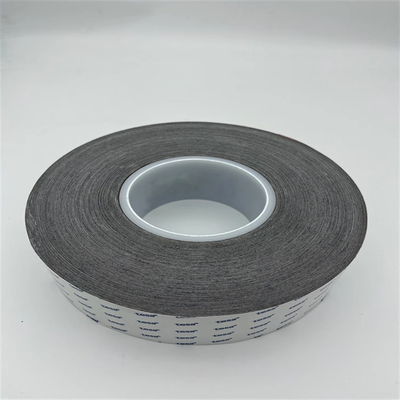

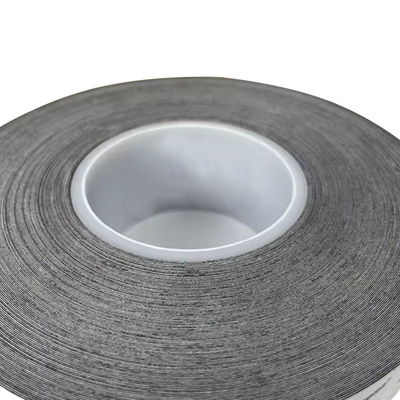

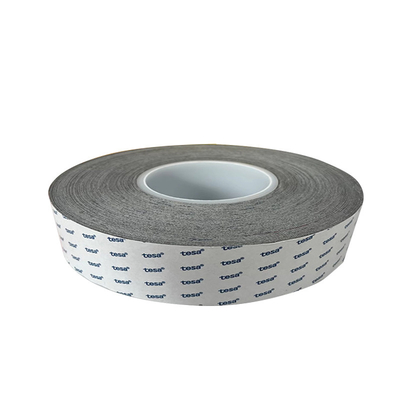

PRODUCT DISPLAY

PACKING OF TRANSPORT

TESA 60214/60215 Grey Color Conductive Foam Double-sided Tape 2

COMPANY PROFILE

SHENZHEN PUFENG PACKING MATERIAL CO.,LTD (PUFENG) is an international machining manufacturer, who is devoting to the precision die-cutting machining field, designing adhesive products, insulation products, sourcing the best solutions and improving the quality and performance of products for customer.
The operation principle of PUFENG is "Running based on the market and sincerity,client and high quality come first." In order to provide a complete set of on-step products and service to customer, PUFENG has formed a strong technical team for worldwide customers to develop precision products. PUFENG’s quality principle is “Serve customers precisely on every tiny point of the demand from customer.” We hope to build up business relationships with you on the basis of equality and mutual benefit.

OUR SERVICES

1.Your enquiries about our products will be answered within 12 hours.

2.OEM or ODM projects are very welcome.

3.We can die cut or design products according to your requirements.shock-proof, shading, etc.

4.Provide perfect after-sales service, if you have questions, please contact us.

5.Pack according to your requirement and deliver on time.

COMMON PROBLEM

1.)How to order from Pufeng?
Just send us an email or call us.

2.)Do you provide free samples for testing?
Yes, we provide samples free of charge.

3.)How to deliver the goods?
We will advise you on the appropriate mode of transport, sea, air or express. Of course, if you have your own repeater, that's no problem.

4.)Can we trust the quality of Pufeng products?
Of course, don't worry. Our quality will definitely match the samples we send. If not, we will be responsible.

5.)What payment does Buffon accept?
For small quantities, we require 100% TT payment in advance; Other conditions, negotiable.

6.)What is the lead time of each order?
If the tape you ordered is in stock, we can deliver it within 1~3 days.
If die cutting is required, delivery time shall be determined by quantity.
