TESA 60253 Gray Double Sided High Adhesive Conductive Spinning Tape

Product Details

Place of Origin: China

Brand Name: TESA

Model Number: 60253

Payment & Shipping Terms

Minimum Order Quantity: 1roll

Price: USD1~USD50

Packaging Details: packing in cartons

Delivery Time: 3~5working days normally

Payment Terms: T/T

Supply Ability: 10000roll/week

Get Best Price
Contact Now
Specifications
Highlight:

high adhesive double-sided tape

,

conductive spinning double-sided tape

,

gray double-sided tape

Brand:
TESA
Model:
60253
Base Material:
Conductive Fabric
Color:
Gray
Backing:
PE Coated Paper
Adhesive:
Conductive Acrylic Acid
Total Thickness:
70 μm
Short-term High Temperature:
180℃
Characteristic:
High Viscosity, Anti-shear
Specification:
1220mm × 50m (Customizable)
Brand:
TESA
Model:
60253
Base Material:
Conductive Fabric
Color:
Gray
Backing:
PE Coated Paper
Adhesive:
Conductive Acrylic Acid
Total Thickness:
70 μm
Short-term High Temperature:
180℃
Characteristic:
High Viscosity, Anti-shear
Specification:
1220mm × 50m (Customizable)
Description
TESA 60253 Gray Double Sided High Adhesive Conductive Spinning Tape

TESA 60253 gray double-sided high adhesive conductive spinning tape





Product features  /Application :

  • Thickness: 70 μm
  • Excellent electrical conductivity in XYZ direction
  • Maintain good adhesion in extreme environments
  • Conductive cloth substrate has very good dimensional stability
  • Mainly used in electronics, communications, electrical appliances, home appliances, construction, printing, aviation and automobile manufacturing and other fields



PRODUCT PARAMETERS




Brand


TESA Model 60253


Base material


Conductive fabric Color Gray


Backing


PE coated paper Adhesive Conductive acrylic acid



Total thickness

(μm)



70 μm


Specification

1220mm × 50m (Customizable)



PROPERTIES / PERFORMANCE VALUES




Contact resistance z direction (initial)



(Ohm / square inch)



0.05

Ohm / square inch



Long-term high temperature resistance

(℃)

100℃
40°C static shear resistance



Very good



Short-term high temperature resistance

(℃)

180℃

Surface resistance x-y direction

(mOhm / square)



0.2

mOhm / square



Release of liner



Easy





BONDING CHARACTERISTIC



Material



Initial Adhesion
( N/cm )



Adhesion after 14 days
( N/cm )
Steel



4.8





9.7

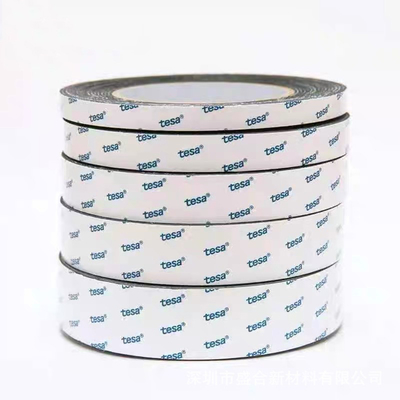

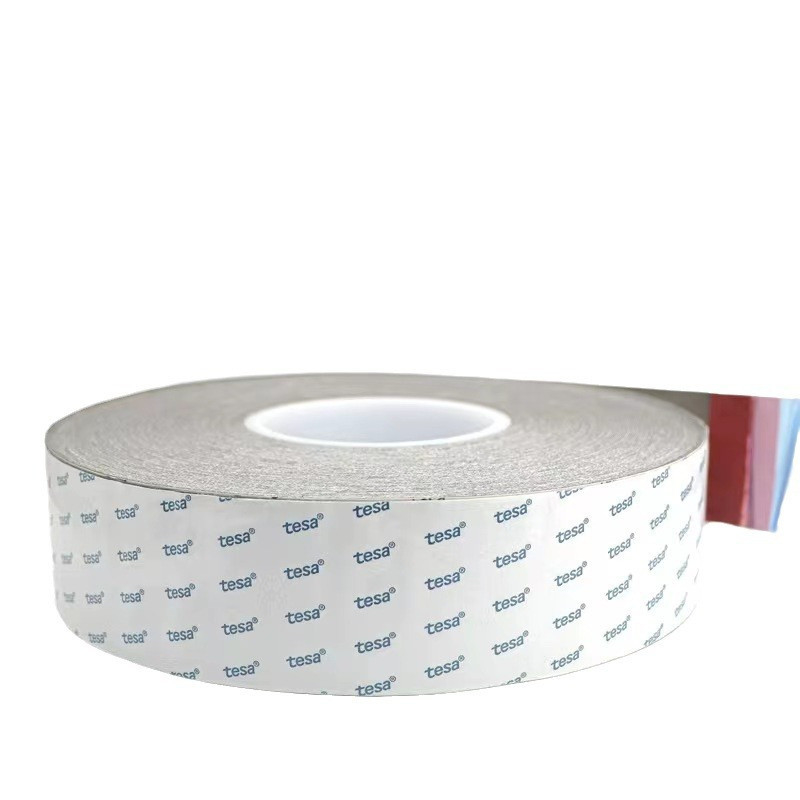

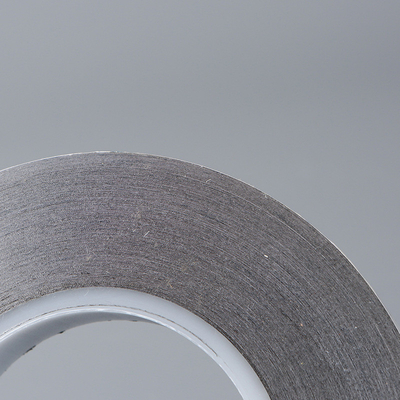

PRODUCT DISPLAY

TESA 60253 Gray Double Sided High Adhesive Conductive Spinning Tape 0TESA 60253 Gray Double Sided High Adhesive Conductive Spinning Tape 1​​
​​

PACKING OF TRANSPORT


TESA 60253 Gray Double Sided High Adhesive Conductive Spinning Tape 2
