TESA 60260 / 60261 Gray Double-sided Conductive Non-woven Tape

Name: TESA 60260 / 60261 Gray Double-sided Conductive Non-woven Tape
Brand: SZ PUFENG PACKING MATERIAL LIMITED
SKU: 60260 / 60261
Price: 25.00 USD
Availability: InStock

Brand Name:	TESA
Model Number:	60260 / 60261
MOQ:	1roll
Price:	USD1~USD50
Delivery Time:	3~5working days normally
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand:

TESA

Model:

60260 / 60261

Base MateriNon-wovenal:

Non-woven

Color:

Gray

Backing:

PET Film

Adhesive:

Acrylic Acid

Total Thickness:

35μm/ 25μm

Temperature Range:

Long-term85℃ , Short-term200℃

Characteristic:

Strong Viscosity

Specification:

1040mm × 100m (Customizable)

Packaging Details:

packing in cartons

Supply Ability:

10000roll/week

Highlight:

TESA double-sided conductive non-woven tape

gray double-sided conductive non-woven tape

60260 double-sided conductive non-woven tape

Product Description

TESA 60260 / 60261 gray double-sided conductive non-woven tape

Product description :

Is an ultra-thin grey double-sided non-woven conductive tape. It is composed of conductive non-woven fabric substrate and conductive acrylic adhesive.

Product features /Application :

It maintains good adhesion even under harsh environmental conditions, such as extreme temperature or humidity

Can adapt to uneven surfaces and provide a reliable fixing effect

Easy to customize die cutting to meet the needs of different shapes and sizes

Excellent 3D directional (XYZ) conductivity

Used for electrostatic discharge protection and component fixation in electronics and other industries: such as assembly and repair of circuit boards; Electromagnetic compatibility (EMC) aspects such as electrostatic discharge are used for grounding

PRODUCT PARAMETERS

Brand	TESA	Model	60260 / 60261
Base material	Non-woven	Color	Gray
Backing	PET film	Adhesive	Acrylic acid
Total thickness (μm)	35μm / 25μm	Specification	1040mm × 100m (Customizable)

PROPERTIES / PERFORMANCE VALUES

Contact resistance z direction (initial)

(Ohm / square inch)

0.02

Ohm / square inch

Long-term high temperature resistance

(℃)

85 ℃

40°C static shear resistance

Very good

Short-term high temperature resistance

(℃)

200 ℃

Surface resistance x-y direction

(mOhm / square)

0.2

mOhm / square

Release of liner

Easy

PEEL STRENGTH PARAMETER VALUE

Material

60260

60261

Adhesion to steel (after 14 days)

4.2 N/cm

5.6 N/cm

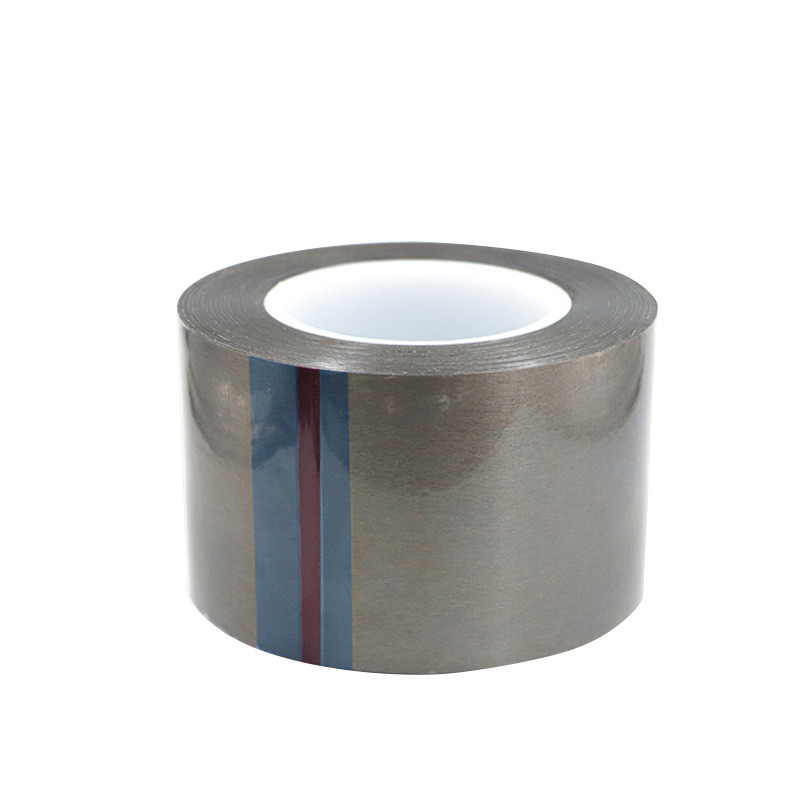

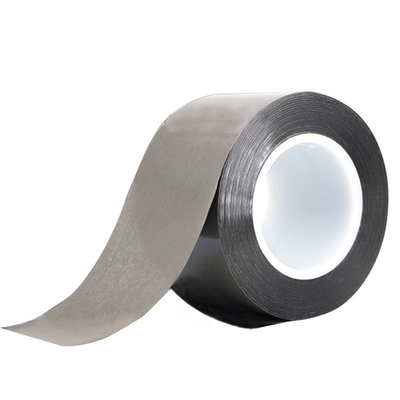

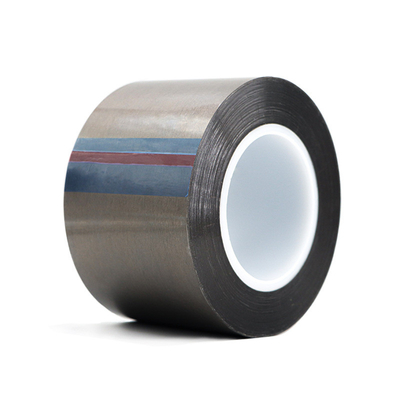

PRODUCT DISPLAY

PACKING OF TRANSPORT

TESA 60260 / 60261 Gray Double-sided Conductive Non-woven Tape 2

COMPANY PROFILE

SHENZHEN PUFENG PACKING MATERIAL CO.,LTD (PUFENG) is an international machining manufacturer, who is devoting to the precision die-cutting machining field, designing adhesive products, insulation products, sourcing the best solutions and improving the quality and performance of products for customer.
The operation principle of PUFENG is "Running based on the market and sincerity,client and high quality come first." In order to provide a complete set of on-step products and service to customer, PUFENG has formed a strong technical team for worldwide customers to develop precision products. PUFENG’s quality principle is “Serve customers precisely on every tiny point of the demand from customer.” We hope to build up business relationships with you on the basis of equality and mutual benefit.

OUR SERVICES

1.Your enquiries about our products will be answered within 12 hours.

2.OEM or ODM projects are very welcome.

3.We can die cut or design products according to your requirements.shock-proof, shading, etc.

4.Provide perfect after-sales service, if you have questions, please contact us.

5.Pack according to your requirement and deliver on time.

COMMON PROBLEM

1.)How to order from Pufeng?
Just send us an email or call us.

2.)Do you provide free samples for testing?
Yes, we provide samples free of charge.

3.)How to deliver the goods?
We will advise you on the appropriate mode of transport, sea, air or express. Of course, if you have your own repeater, that's no problem.

4.)Can we trust the quality of Pufeng products?
Of course, don't worry. Our quality will definitely match the samples we send. If not, we will be responsible.

5.)What payment does Buffon accept?
For small quantities, we require 100% TT payment in advance; Other conditions, negotiable.

6.)What is the lead time of each order?
If the tape you ordered is in stock, we can deliver it within 1~3 days.
If die cutting is required, delivery time shall be determined by quantity.
