TESA 61390/61395 200µm Double Sided Adhesive Tape High-performance PET Film

Name: TESA 61390/61395 200µm Double Sided Adhesive Tape High-performance PET Film
Brand: SZ PUFENG PACKING MATERIAL LIMITED
SKU: 61390/61395
Price: 25.00 USD
Availability: InStock

Brand Name:	TESA
Model Number:	61390/61395
MOQ:	1roll
Price:	USD1~USD50
Delivery Time:	3~5working days normally
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand:

TESA

Model:

61390/61395

Color:

Transparent / Black

Base Material:

PET Film

Adhesive:

Tackified Acrylic

Backing:

Glassine

Thickness:

200 μm

Temperature Range:

Long Term 100℃ , Short Term 200℃

Characteristic:

High Viscosity

Specification:

1240mm × 100m (Customizable)

Packaging Details:

packing in cartons

Supply Ability:

10000roll/week

Highlight:

high-performance double sided adhesive tape

TESA double-sided PET film tape

200µm double-sided PET film tape

Product Description

TESA 61390/61395 200µm double-sided high-performance PET film tape

Product features/Applications :

Suitable for different surfaces, easy to die cut, can effectively improve the bonding strength.

It has excellent temperature resistance, moisture resistance and aging resistance.

High shock resistance.

Used in electronic equipment parts, touch screen, nameplate, logo fixed bonding; Metal, plastic, foam and other different materials bonding.

PRODUCT PARAMETERS

Brand	TESA	Model	61390 / 61395
Base material	PET film	Backing	Glassine
Color	Transparent / Black	Adhesive	Modified acrylic
Total thickness (μm)	200 μm	Specification	1240mm × 100m (Customizable)

PROPERTY / PERFORMMANCE VALUE :

Tensile strength ( N / CM )	20 n/cm	Ageing resistance (UV)	Very good
Elongation at break (%)	50 %	Short-term temperature (℃)	200 ℃
40℃ static shear resistance	Good	Long-term temperature (℃)	100 ℃
Initial adhesion	Medium	moisture resistance	Very good
23℃ static shear resistance	Good	-	-

PEEL STRENGTH FOR DIFFERENT SURFACES :

Material	TESA61390	TESA61395
ABS (initial)	10.0	10.0
ABS (after 14 days)	13.3	13.3
Glass (initial)	14.3	14.3
Glass (after 14 days)	16.6	16.6
PC (initial)	11.6	11.6
PC (after 14 days)	19.5	19.5
PMMA (initial)	14.2	14.2
PMMA (after 14 days)	19.2	19.2
Steel (initial)	14.3	14.3
Steel (after 14 days)	17.0	17.0

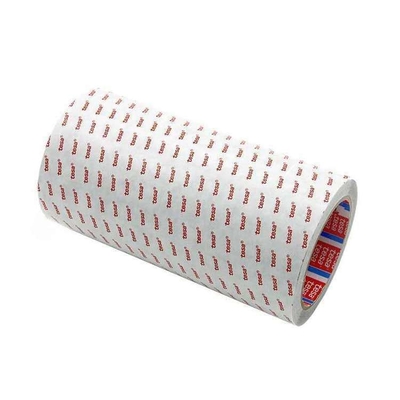

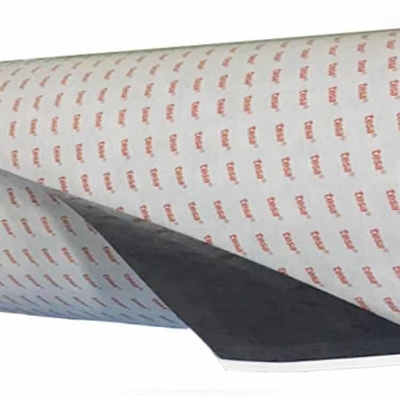

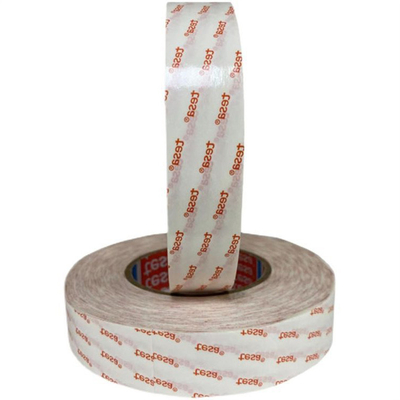

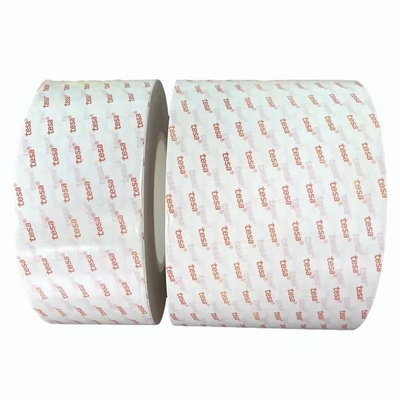

PRODUCT DISPLAY

PACKING OF TRANSPORT

TESA 61390/61395 200µm Double Sided Adhesive Tape High-performance PET Film 1

COMPANY PROFILE

SHENZHEN PUFENG PACKING MATERIAL CO.,LTD (PUFENG) is an international machining manufacturer, who is devoting to the precision die-cutting machining field, designing adhesive products, insulation products, sourcing the best solutions and improving the quality and performance of products for customer.
The operation principle of PUFENG is "Running based on the market and sincerity,client and high quality come first." In order to provide a complete set of on-step products and service to customer, PUFENG has formed a strong technical team for worldwide customers to develop precision products. PUFENG’s quality principle is “Serve customers precisely on every tiny point of the demand from customer.” We hope to build up business relationships with you on the basis of equality and mutual benefit.

OUR SERVICES

1.Your enquiries about our products will be answered within 12 hours.

2.OEM or ODM projects are very welcome.

3.We can die cut or design products according to your requirements.shock-proof, shading, etc.

4.Provide perfect after-sales service, if you have questions, please contact us.

5.Pack according to your requirement and deliver on time.

COMMON PROBLEM

1.)How to order from Pufeng?
Just send us an email or call us.

2.)Do you provide free samples for testing?
Yes, we provide samples free of charge.

3.)How to deliver the goods?
We will advise you on the appropriate mode of transport, sea, air or express. Of course, if you have your own repeater, that's no problem.

4.)Can we trust the quality of Pufeng products?
Of course, don't worry. Our quality will definitely match the samples we send. If not, we will be responsible.

5.)What payment does Buffon accept?
For small quantities, we require 100% TT payment in advance; Other conditions, negotiable.

6.)What is the lead time of each order?
If the tape you ordered is in stock, we can deliver it within 1~3 days.
If die cutting is required, delivery time shall be determined by quantity.
