BERGQUIST 1.6W/m·K V-0 Fire Resistance Electrically Isolating Silicone Thermal Pad for Heat Sink

Name: BERGQUIST 1.6W/m·K V-0 Fire Resistance Electrically Isolating Silicone Thermal Pad for Heat Sink
Brand: SZ PUFENG PACKING MATERIAL LIMITED
SKU: SIL PAD TSP 1600S
Price: 25.00 USD
Availability: InStock

Brand Name:	BERGQUIST
Model Number:	SIL PAD TSP 1600S
MOQ:	1roll
Price:	USD1~USD50
Delivery Time:	3~5working days normally
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand:

BERGQUIST

Model:

SIL PAD TSP 1600S

Color:

Pink

Technology:

Silicone

Fire Resistance:

V-0

Temperature- Resistance (℃):

- 60 ~ 180（℃）

Rubber-faced:

With Or Without Pressure-sensitive Adhesive

Specification:

Customizable

Packaging Details:

packing in cartons

Supply Ability:

10000roll/week

Highlight:

TSP 1600S SIL PAD

motor controls SIL PAD

1.6W/m·K SIL PAD

Product Description

BERGQUIST 1.6W/m·K SIL PAD TSP 1600S Motor Control Heat Sink

BERGQUIST 1.6W/m·K SIL PAD TSP 1600S motor controls the heat sink - a high-performance thermal interface material designed for efficient heat dissipation in demanding applications.

Product Features & Applications

Thermal resistance: 0.61°C-in²/W (50psi)
Electrically isolating for safety and performance
Smooth surface with high flexibility for easy installation
General-purpose thermal interface material solution
Ideal for power supply, automotive electronics, motor control, and power semiconductors

Product Specifications

Test Item	Test Method	Unit	Metric Value
Color	Visual	-	Pink
Technology	-	-	Silicone
Reinforcement Carrier	-	-	Fiberglass
Thickness	ASTM D374	inch / MM	0.229
Hardness	ASTM D2240	Shore A	92
Tensile Strength	ASTM D412	psi / Mpa	9
Elongation	ASTM D412	%	20
Breakdown Voltage	ASTM D149	Vac	5500
Volume Resistivity	ASTM D257	Ω*cm	1×10¹⁰
Continuous Use Temp	-	°F / ℃	-60 ~ 180
Flame Retardant Rate	UL 94	-	V-0
Dielectric Constant	ASTM D150	1000 MHz	6.0
Thermal Conductivity Coefficient	ASTM D5470	W/m·K	1.6

Thermal Performance vs Pressure

Pressure (psi)	10	25	50	100	200
TO-220 Thermal Performance (°C/W)	3.96	3.41	2.90	2.53	2.32
Thermal Impedance (°C-in²/W)	0.95	0.75	0.61	0.47	0.41

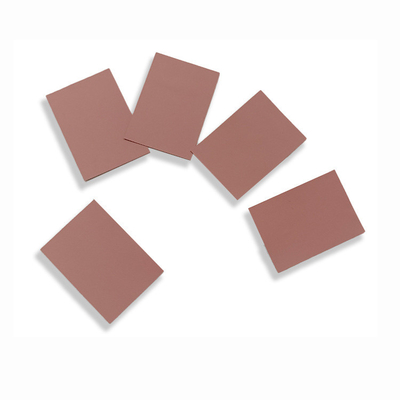

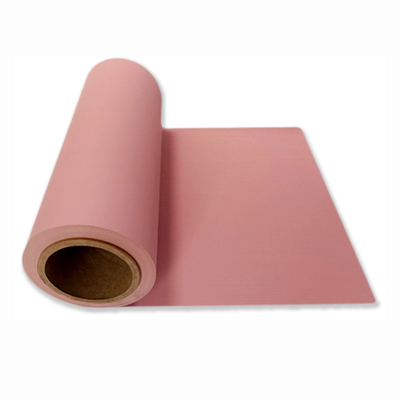

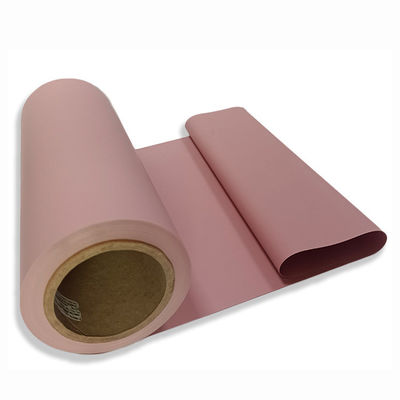

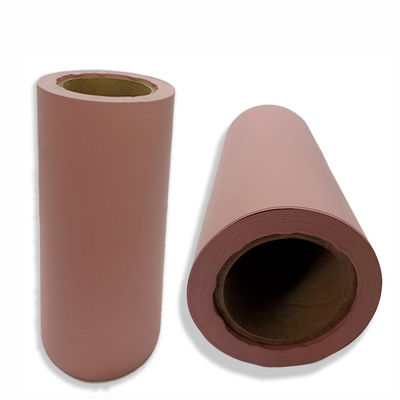

Product Display

Packing & Transport

Company Profile

SHENZHEN PUFENG PACKING MATERIAL CO.,LTD (PUFENG) is an international machining manufacturer dedicated to the precision die-cutting machining field. We specialize in designing adhesive products, insulation products, sourcing the best solutions, and improving product quality and performance for our customers.

Our operation principle is "Running based on the market and sincerity, client and high quality come first." To provide complete one-stop products and services, PUFENG has formed a strong technical team to develop precision products for worldwide customers. Our quality principle is "Serve customers precisely on every tiny point of the demand from customer." We aim to build business relationships on the basis of equality and mutual benefit.

Our Services

Your enquiries about our products will be answered within 12 hours
OEM or ODM projects are very welcome
We can die cut or design products according to your requirements including shock-proof, shading, etc.
Provide perfect after-sales service with dedicated support
Pack according to your requirements and deliver on time

Frequently Asked Questions

How to order from Pufeng?

Just send us an email or call us.

Do you provide free samples for testing?

Yes, we provide samples free of charge.

How to deliver the goods?

We will advise you on the appropriate mode of transport - sea, air, or express. If you have your own preferred carrier, that's no problem.

Can we trust the quality of Pufeng products?

Of course, don't worry. Our quality will definitely match the samples we send. If not, we will be responsible.

What payment does Pufeng accept?

For small quantities, we require 100% TT payment in advance; other conditions are negotiable.

What is the lead time of each order?

If the tape you ordered is in stock, we can deliver within 1-3 days. If die cutting is required, delivery time depends on quantity.
