|Features:||Shielding And Conductive||Name:||Die-cutting EMI Shielding Conductive Foam Tape|
|Material:||PU, CR, EPDM, PORON, Silicone Rubber||Process:||Die Cut According To Drawing|
|Model No.:||Conductive Foam-01||Adhesive:||Single-Side And Double-side Tape|

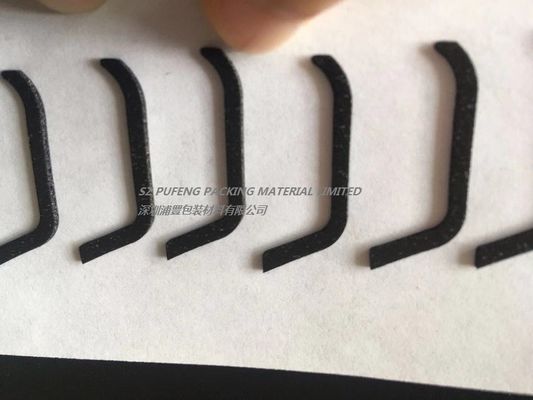

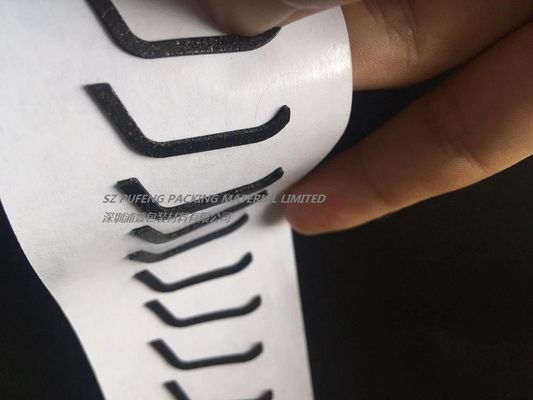

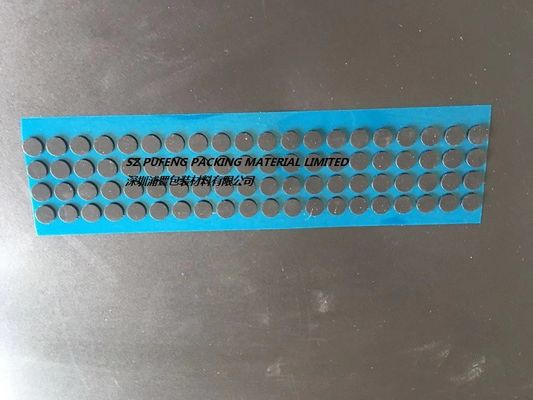

Conductive Foam Die Cut Adhesive Tape,
PORON Die Cut Adhesive Tape,
CR Adhesive Insulation Tape
High quality heat electrically conductive foam adhesive insulation tape
Conductive foam refers to the coating of conductive fabric on PU foam with a series of treatments to make it have good surface conductivity and can be easily fixed on shielding devices with adhesive tape. Shielding materials with different profile shapes, installation methods, UL grades and shielding properties are available.
Conductive foam classification and application: conductive foam can be divided into ordinary conductive foam gold-plated, nickel plated copper conductive foam, conductive carbon foam plating, tin plating conductive foam, foil foam and comprehensive conductive foam, SMT I/O conductive foam pad, etc.
This Electrical Metal Plated Adhesive Backed Conductive Foam is made of polyurethane foam coated with copper and nickel. Compression is 25% to 75%.
The material will return to almost its original height when released. The foam is covered with a layer of conductive polyurethane to protect it from environmental influences and to prevent burrs when cutting. Its conductivity is excellent in all directions (X, Y, and Z). Conductive foam is fire retardant as well as RoHS compliant.
Surface resistance: ≤0.03Ω/inch
Shielding effect: 60dB~90dB/30MHz~3GHz
heat-resisting temperature: - 40 ℃ - 120 ℃
frictional resistance: above 400,000 times ASTND4966-98
metal layer binding force: more than 4 AATCC TM8-2001
tensile strength: 1.3 (kg / 25 mm)
initial adhesion: 1200 g / 25 mm
maintain adhesion: 4000 Min/inch
fire rating : UL94V0. 94 (HF - 1)
The conductive foam is characterized by:
* Available in thicknesses of 0.2MM~20MM
* Several layers can be joined together for thickness, on request
* Excellent electric conductivity throughout the material
* Excellent electromagnetic shielding effect
* High workability due to adhesion
* Easy die cutting, kiss cutting and slitting
|Heat-resisting Temperature:||- 40 ℃ - 120 ℃|
|Frictional Resistance:||above 400,000 times ASTND4966-98|
|Metal Layer Binding Force:||more than 4 AATCC TM8-2001|
|Tensile Strength:||1.3 (kg / 25 mm)|
|Initial Adhesion:||1200 g / 25 mm|
|Maintain Adhesion:||4000 Min/inch|
|Fire Rating :||UL94V0. 94 (HF - 1)|
Conductive foam are widely used in the plasma TV, LCD monitor, LCD TV, mobile phone, Laptop PC, Desktop PC, PDA, MP4, communications cabinets, medical instruments and other electronic products. It is widely used in electronic products such as PDP TV, LCD display, LCD TV, mobile phone, notebook computer, MP3, communication cabinet, medical instrument, etc., as well as specific and general applications in the field of military and aerospace in the conductive parts of electronic products, such as antenna module, tail plug, receiver, case seal, etc.It mainly plays the role of shielding and conducting electricity.
1. Your inquiry related to our product will be replied within 12 hours.
2. OEM or ODM projects are highly welcome.
3. We can die cut or design the products according to your requirements.
4. Perfect after-sale service offered,please contact us if you got question.
5. Packing as your request and promptly delivery
1) How to order from PUFENG?
Just send us email or call us.
2) Do you offer the free sample for testing?
Yes, we offer thee samples for free.
3) How to ship the order?
We will suggest you the appropriate way of shipment, by sea, by air or by courier. Of course if you will have your own forwarder, that is no problem.
4) Can we trust the quality of product from PUFENG?
Sure, do not worry about that. Our quality wills absolutely compliance to the sample we send. If not, we will take charge of that.
5) What payment PUFENG accepts?
For the small quantity, we request 100% advanced TT payment; other conditions, negotiable.
6) How about the lead time of per order?
If the tape you order have stock, we can ship out within 1~3 days.
If die-cuts requested, the lead time shall be according to the quantity.
