| Brand Name: | PF |
| Model Number: | COPPER FOIL |
| MOQ: | 1 Kilogram/Kilograms |
| Price: | USD 1 per Kilogram/Kilograms |
| Delivery Time: | 3~7 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |

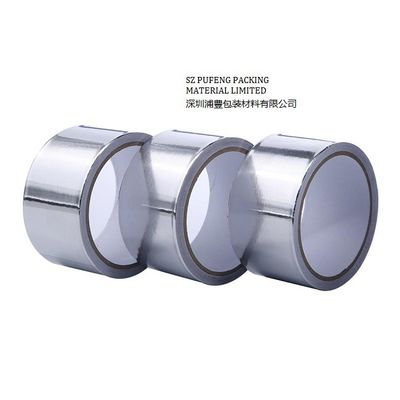

Temperature Resistant Flame Retardant Aluminum Foil Tape Thin Copper Tape
Industry Self Adhesive Aluminum Foil Tape
The tape is used for heat-resistanting in pipelines.
| Item Name | Self Adhesive Aluminum Foil Tape |
| Material | Aluminum foil |
| Thickness | 30, 40, 50 micron Aluminum foil |
| Size |
50mm x 50m, 75mm x 50m, 100mm x 50m, 48mm x 50m. We also offer special sizes for customer. |
| Adhesive | Solvent acrylic or water acrylic |
| Usage | Suitable in electronic and refrigeration fields due to its excellent thermal- and electrical conductivity. |
Description
Aluminum Foil Tape is a 30u nominal dead soft aluminum foil with cold weather flame-retardant acrylic adhesive and protected by easy release liner.
Features
Excellent Peel Adhesion
Good Initial Tack & Permanent Bonding
UL 723 Fire Rating Approval
Outstanding Low Temperature & Aging Resistance
Applications
Super performance, UL 723 FR grade 30u foil tape. Ideal for sealing joints / seams against moisture and vapor on foil jacketing insulation. Suitable for many other permanent sealing, holding, splicing or masking applications requiring the protection offered by a foil backing.
Technical Data Sheet:
| Property | Unit | Value | Test Method |
| Backing Thickness | Micron | 30 | PSTC-33 / ASTM D3652 |
| Peel Adhesion | N/25mm | 15 | PSTC-1 / ASTM D3330 |
| Tack Rolling Ball | cm | 5 | PSTC-6 / ASTM D3121 |
| Tensile Strength | N/25mm | 37.5 | PSTC-31 / ASTM D3759 |
| Holding Power | min/25*25mm2 1kg weight | 10000 | PSTC-7 /ASTM D3654 |
| Elongation | % | 3.0 | PSTC-31 / ASTM D3759 |
| Fire Rating | (25 / 50 & Class O) | Passed | UL 723 & BS476 Pt 6 & 7 |
| Service Temperature | ℃ | -40 +120 | ---------- |
| Applying Temperature | ℃ | -5 +40 | ---------- |
Cut Roll: 48mm, 50mm (2"), 60mm, 63mm (2.5"), 72mm, 75mm (3"), 96mm, 100mm (4").
Jumbo Roll: 1200mm x 1350M, 1200mm x 1200M.
Our Services
1. Your inquiry related to our product will be replied within 12 hours.
2. OEM or ODM projects are highly welcome.
3. We can die cut or design the products according to your requirements.
4. Perfect after-sale service offered,please contact us if you got question.
5. Packing as your request and promptly delivery
FAQ
1) How to order from PUFENG?
Just send us email or call us.
2) Do you offer the free sample for testing?
Yes, we offer thee samples for free.
3) How to ship the order?
We will suggest you the appropriate way of shipment, by sea, by air or by courier. Of course if you will have your own forwarder, that is no problem.
4) Can we trust the quality of product from PUFENG?
Sure, do not worry about that. Our quality wills absolutely compliance to the sample we send. If not, we will take charge of that.
5) What payment PUFENG accepts?
For the small quantity, we request 100% advanced TT payment; other conditions, negotiable.
6) How about the lead time of per order?
If the tape you order have stock, we can ship out within 1~3 days.
If die-cuts requested, the lead time shall be according to the quantity.
