|Name:||Silicone Polyimide Film||Material:||Polyimide, PI Film|
|Thickness:||0.06mm,different,50mic~100mic,0.05 ± 0.005mm||Size:||Customizable,500mm*33m|
|Application:||Electronics,PCB,SMT Wave Soldering||Color:||Amber,golden,gold,brown|
33m Kapton Polyimide Tape,
500mm Kapton Polyimide Tape,
60 Micron Polyimide Film Tape

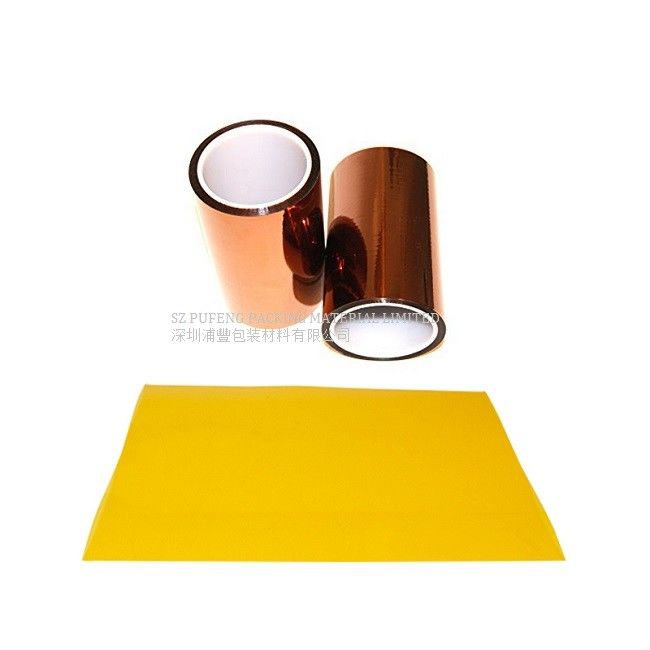

Kapton Polyimide High Temperature Adhesive Tape for Sublimation Heat Transfer
1, Polyimide film as carrier, high temperature resistance, good insulation performance;
2, Silicone pressure sensitive adhesive, good high temperature resistant;
3, Surface protection without adhesive residue.
Polyimide tape is made of two different layers that give the tape its distinct properties. The top layer is polyimide film that Has good mechanical, physical, chemical and electrical properties.The bottom layer is silicone adhesive with high temperature resistant
Width size : Up to 980mm
Length size: 33m or 66m
Thickness: 50mic, 60mic, 80mic, 100mic, 120mic
Jumbo size: 500mm x 1000m
Log Roll Size:500mm x 66m, 500mm x 33m
Die cutting: Yes
Silicone Adhesive Polyimide Tape Heat Resistant High Temperature Polyimide Tape is based on polyimide film and coated with high performance silicone adhesive for temperature resistance and electrical insulation. It is wiely applied for motor insulation ,gold finger protection for PCB during wave soldering.
|Adhesion to Steel||N/25MM||7||ASTM D-3330|
|Tensile Strength||N/25MM||115||ASTM D-897|
|Elongation at break||(%)||50||Tensile tester|
|Breakdown Voltage||KV||4.5||Voltage tester|
1. High temperature resistance, from -20℃~250℃;
2. High voltage resistance, H insulation rank
3. Single side silicone adhesive
4. No residue after remove
5. gold or tan color
1. Used for spray paint, paint, sealing, footwear, packaging fixed, construction and decoration industries;
2. Electrical insulation on Electronics industry transformers, motors, coils, capacitors and variable frequency power supply etc...

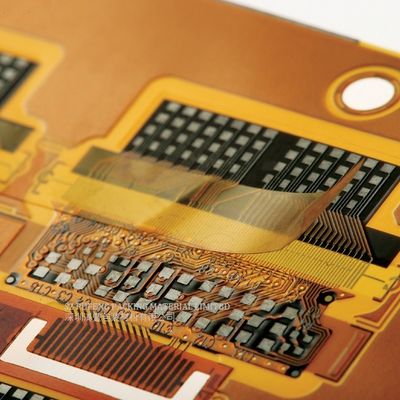

3. Electrical insulation on Printed circuit board (PCB), SMT tin stove, Lithium battery etc.....
→ kapton film/polyimide tape
→silicone pressure sensitive adhesive
Ideal for switch.motor .relay.cable.coils.capacitance and lithium battery.SMT.transformer fabrication and so on.
Storage condition and Shelf life:
The product should be stored in the ambient temperature, in the 20~80%RH.
You can obtain the best properties within 12 months after product date.
1. Your inquiry related to our product will be replied within 12 hours.
2. OEM or ODM projects are highly welcome.
3. We can die cut or design the products according to your requirements.
4. Perfect after-sale service offered,please contact us if you got question.
5. Packing as your request and promptly delivery
1) How to order from PUFENG?
Just send us email or call us.
2) Do you offer the free sample for testing?
Yes, we offer thee samples for free.
3) How to ship the order?
We will suggest you the appropriate way of shipment, by sea, by air or by courier. Of course if you will have your own forwarder, that is no problem.
4) Can we trust the quality of product from PUFENG?
Sure, do not worry about that. Our quality wills absolutely compliance to the sample we send. If not, we will take charge of that.
5) What payment PUFENG accepts?
For the small quantity, we request 100% advanced TT payment; other conditions, negotiable.
6) How about the lead time of per order?
If the tape you order have stock, we can ship out within 1~3 days.
If die-cuts requested, the lead time shall be according to the quantity.
