| Place of Origin: | Guangdong, China (Mainland) |
| Brand Name: | PF |
| Certification: | ROHS |
| Model Number: | KT005 |
| Minimum Order Quantity: | 1 roll |
|---|---|
| Price: | USD 1~150 / ROLL |
| Packaging Details: | Standard export carton for polyimide tape |
| Delivery Time: | 3~7 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 rolls per day |
| Name: | Kapton Film / Polyimide Tape | Temperature: | 120 - 260 ℃ |
|---|---|---|---|
| Material: | Polyimide, PI Film | Adhesive: | Imported Silicone Adhesive |
| Color: | Amber,golden,gold | Thickness: | 0.05mm - 0.2 Mm |
| Usage: | Heat-Resistant | Adhesive Side: | Double Sided & Sinlge Sided |
| Width: | 3mm-520mm | Quality: | Hi-Quality Standard Guaranteed |
| High Light: | 0.05mm kapton polyimide film tape,ROHS kapton polyimide film tape,200 Micron double sided kapton tape |
||
High Temprature Polyamide Adhesive Insulation Kapton Tape For PCB Protection
1. Polyimide film as carrier, high temperature resistance, good insulation performance;
2. Silicone pressure sensitive adhesive, good high temperature resistant;
3. Surface protection without adhesive residue.
4. Anti-static
Polyimide tape is made of two different layers that give the tape its distinct properties. The top layer is polyimide film that Has good mechanical, physical, chemical and electrical properties.The bottom layer is silicone adhesive with high temperature resistant
Width size : Up to 980mm
Length size: 33m or 66m
Thickness: 50mic,60mic,80mic,100mic,120mic
Jumbo size: 500mm x 1000m
Log Roll Size:500mm x 66m, 500mm x 33m
Silicone Adhesive Polyimide Tape Heat Resistant High Temperature Polyimide Tape is based on polyimide film and coated with high performance silicone adhesive for temperature resistance and electrical insulation. It is wiely applied for motor insulation ,gold finger protection for PCB during wave soldering.
| Item | Unit | Value | Test method |
| Width | mm | 10-1000 | Micrometer |
| Length | m | 10-100 | Micrometer |
| Thickness | mm | 0.15 | Micrometer |
| Short-term temperature | ℃ | 300 | Thermostat |
| Long-term temperature | ℃ | 260 | Thermostat |
| Adhesion to Steel | N/25MM | 7 | ASTM D-3330 |
| Tensile Strength | N/25MM | 115 | ASTM D-897 |
| Elongation at break | (%) | 50 | Tensile tester |
| Breakdown Voltage | KV | 4.5 | Voltage tester |
Application:
Polyimide material base with silicone adhesive, no residue, heat-resistant and electrical insulation. used as high temperature heat insulation material,It is suitable for electronic circuit board wave solder shielding, protection of gold fingers, high-end electrical insulation, motor insulation, and fixing of positive and negative ears of lithium batteries. 3D print, electronic and other electrical products,etc.
Product composition:
|
→ kapton film/polyimide tape
|
|
→silicone pressure sensitive adhesive
|
Application ideals:
Ideal for switch.motor .relay.cable.coils.capacitance and lithium battery.SMT.transformer fabrication and so on.
| Thickness (mm) | Width (mm) |
Length (m) |
resistance temperature |
| 0.05 | 2-980 | 33 | 260(°C) |
| 0.065 | 2-980 | 33 | 300(°C) |
| 0.065 | 2-980 | 33 | 260(°C) |
| 0.08 | 2-980 | 33 | 260(°C) |
| 0.115 | 2-980 | 33 | 260(°C) |
| 0.165 | 2-980 | 33 | 260(°C) |
| 0.25 | 2-980 | 10 | 260(°C) |
Storage condition and Shelf life:
The product should be stored in the ambient temperature, in the 20~80%RH.
You can obtain the best properties within 12 months after product date.

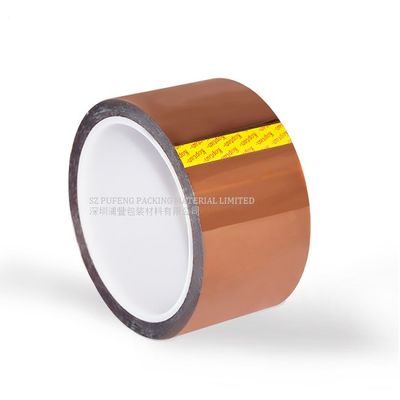

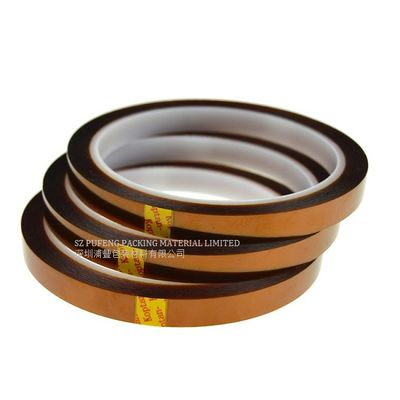

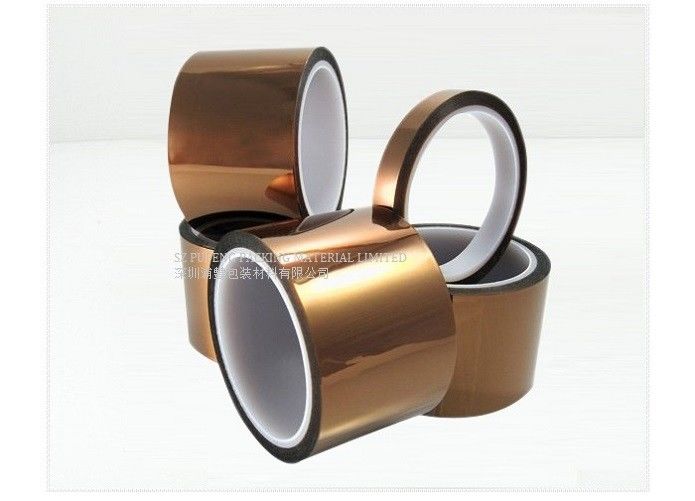

Product Show:
Our Services
1. Your inquiry related to our product will be replied within 12 hours.
2. OEM or ODM projects are highly welcome.
3. We can die cut or design the products according to your requirements.
4. Perfect after-sale service offered,please contact us if you got question.
5. Packing as your request and promptly delivery
FAQ
1) How to order from PUFENG?
Just send us email or call us.
2) Do you offer the free sample for testing?
Yes, we offer thee samples for free.
3) How to ship the order?
We will suggest you the appropriate way of shipment, by sea, by air or by courier. Of course if you will have your own forwarder, that is no problem.
4) Can we trust the quality of product from PUFENG?
Sure, do not worry about that. Our quality wills absolutely compliance to the sample we send. If not, we will take charge of that.
5) What payment PUFENG accepts?
For the small quantity, we request 100% advanced TT payment; other conditions, negotiable.
6) How about the lead time of per order?
If the tape you order have stock, we can ship out within 1~3 days.
If die-cuts requested, the lead time shall be according to the quantity.
