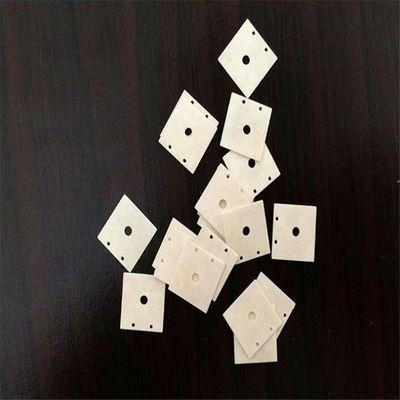

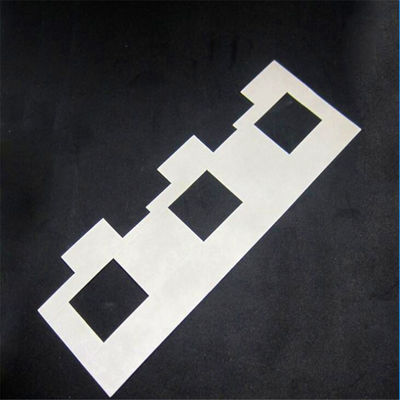

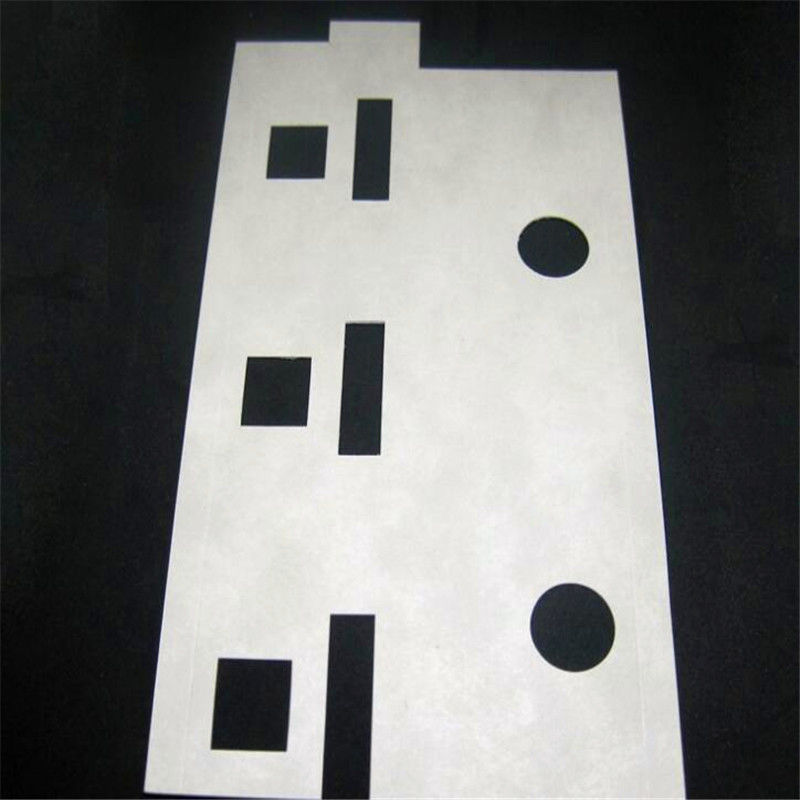

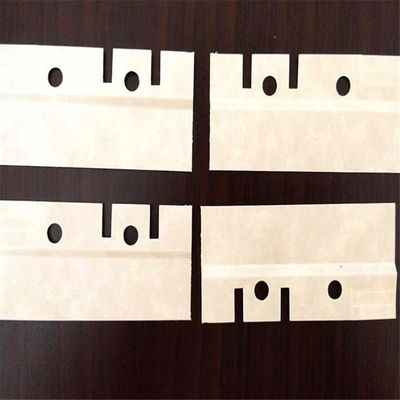

|Name:||Die-cutting Nomex 410||Process:||Die Cut According To Drawing|
|Rated Voltage:||5V~12V||Samples:||Free Samples|
|Tensile Strength:||MD>180, TD>90||Material:||Polyester|
die cut double sided tape,
die cut masking tape
Die Cut Customized Transformer Electrical Insulation Nomex Aramid Paper adhesive 3m foam tape
X-630 is a Class H (180ºC) insulating material.
Temperatures below 200ºC slightly influence its electrical properties. The excellent mechanical properties can be extrapolated at much higher temperatures. Due to the polymer structure, X-630 can also be used at temperatures as low as -100ºC.
X-630 is compatible with all common resin, varnish adhesives classes, as well as transformer liquids, oils and refrigerants. Common solvents can result in easily reversible expansion.X-630 paper is flame retardant (UL 94V.0) moreover, it displays a very high level of beta and gamma-ray resistance.
Meta-aramid paper can be widely used in many applications ,mostly when heat resistance properties are required,as:
. Microwave oven transformers, UPS power transformers
. Dry-transformers, cast transformers, welding transformers
. HID ballast and other transformers as interlayer electrical insulation.
. Low voltage in DC and AC electrical motors as slot and closure insulation.
. Wind Generators and in many specific areas in turbo-generators.
630 High Calendered grade
Type 630 meta-aramid paper is high calendered,which offers high dielectric strength,mechancial
toughness,flexibility and resilience. This type is mainly used for wire wrapping and other sheets form insulations. Also can be worked into laminates materials and various shaped products. Widely used in transformers and electrical equipment applications.
Thickness from 0.05mm to 0.76mm. In tapes from 6 mm width and punch pieces shape.
|ASTM D374||ASTM D374||UL94||UL746A||UL746A||UL746B||UL746B||UL746A||UL746A|
|Thickness||Thickness||Flame||HWI||HAI||RTI Elec.||RTI Mech||HVTR||CTI|
Other Die Cutting Products:
1) Die cut 3M,TESA, NITTO double side tape.
2) Die cut EMI products, such as copper foil, conductive foam, conductive cloth
3) Die cut Polyimide film, Polyimide tape
4) Die cut PET/Polymer/Tissue Double side tape.
5) Die cut Acrylic Foam Tape/VHB Tape
6) Die cut PE/PET Protective film
7) Die cut Thermal produts,such as Thermal Conductive Double side Tape,Thermal conductive rubber pad.
8) Die cut PE Foam,EVA Foam,PU Foam,PORON Foam,Sponge.
9) Die cut OCA Double Side Tape.
10) Die cut Tempered Glass Screen Protector
11) Die cut Printing Related Protucts,Such as PET/PC/Paper Labels.
12) Die cut All kinds of Insulation gasket,such as PC,PET materials.
Die-cutting Dust Proof Net:
Slitting ⇒ Die Cut
1. Your inquiry related to our product will be replied within 12 hours.
2. OEM or ODM projects are highly welcome.
3. We can die cut or design the products according to your requirements.
4. Perfect after-sale service offered,please contact us if you got question.
5. Packing as your request and promptly delivery
1) How to order from PUFENG?
Just send us email or call us.
2) Do you offer the free sample for testing?
Yes, we offer thee samples for free.
3) How to ship the order?
We will suggest you the appropriate way of shipment, by sea, by air or by courier. Of course if you will have your own forwarder, that is no problem.
4) Can we trust the quality of product from PUFENG?
Sure, do not worry about that. Our quality wills absolutely compliance to the sample we send. If not, we will take charge of that.
5) What payment PUFENG accepts?
For the small quantity, we request 100% advanced TT payment; other conditions, negotiable.
6) How about the lead time of per order?
If the tape you order have stock, we can ship out within 1~3 days.
If die-cuts requested, the lead time shall be according to the quantity.
