Product Details
Place of Origin: Guangdong,China(Mainland)
Brand Name: PF
Certification: ROHS
Model Number: 001
Payment & Shipping Terms
Minimum Order Quantity: 1 roll
Price: USD 0.5~50 per roll
Packaging Details: Standard package for export
Delivery Time: 3~7 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000 rolls per day
Name: |
Polyester Film Tape |
Length: |
33m / 66m |
Heat Resistant: |
200 (℃) |
Material: |
Polyester Film + Silicone Adhesive |
Feature: |
Heat-Resistant,High Temperature |
Adhesive Side: |
Single Sided |
Color: |
Green |
Thickness: |
0.05mm / 0.08mm |
Name: |
Polyester Film Tape |
Length: |
33m / 66m |
Heat Resistant: |
200 (℃) |
Material: |
Polyester Film + Silicone Adhesive |
Feature: |
Heat-Resistant,High Temperature |
Adhesive Side: |
Single Sided |
Color: |
Green |
Thickness: |
0.05mm / 0.08mm |

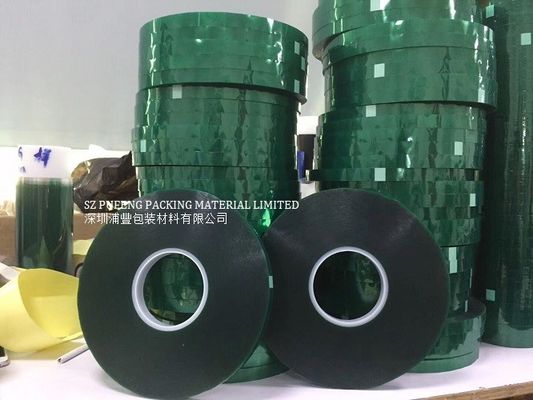

High Temp Self Adhesive PET Green Tape With Silicone For 200 C Heat Protection
The polyester tape is made of polyester film, coated with silicone adhesive.It has good high temperature resistance.
| Name | Polyester Film Tape |
| Material | Polyester Film + Silicone Adhesive |
| Color | Green |
| Feature |
1. 200℃ High temperature, solvent resistant stable and reliable 2. Corrosion resistance 3. Insulation 4. Suitable for high-temperature protection, 3D printer platform 5. No glue residue 6. Good die-cut Material |
| Advantage |
1. Factory Supplier: competitive price and supply ability 2. Perfect Service: professional sales team 3. R&D and QC Dep.: solve all your problems |
| Size | Customizable |
| MOQ | 1 roll |
| Sample | We send sample at most 20mm width roll or A4 paper size for free |
| Sample Lead Time | 2 Days |
| Order Lead Time | 7 Days |
Main Application:
* High temperature protection
* Insulation / Lithium battery extremely car fixed
* Transform coil wrapping and fixed
* Chip insetting
* 3D printer
FEATURES
* High temperature resistance
* Strong adhesion
* Flexible and conformable
* Peeled off without leaving an adhesive residue
CONSTRUCTION:
| Polyester film |
| Silicone Adhesive |
Product Properties:
| Item | Unit | Method Remark |
| Film Thickness | mm | 0.035±0.005 |
| Total thickness | mm | 0.06±0.005 |
| Peel Adhesion | G/25mm | 650±50 |
| Tensile strength | N/25mm | ≥135 |
| Elongation at break | % | ≥60 |
|
Temperature resistance |
℃/30min | 180 |
| Withstand voltage | KV | 5 |
| Physical Characteristics | Metric System | Test method |
| Backing | Polyester Film | |
| Adhesive | Silicone adhesive | |
| Color | Green/Red/Blue | |
| Total Thickness | 0.085MM | GB/T 7125-1999 |
| Adhesive force | 6N/25MM | GB/T 2792-1998 |
| Tensile strength | 115N/25MM | GB/T 7753-1987 |
| Temperature resistance | -73°C to 260°C | GB/T 7125-1999 |
| Elongation at break | ≥ 30% | GB/T 7753-1987 |
| Insulation | 3KV | GB/T 14517-1993 |
Note: The above technical information and data should be considered representative or typical only and should not be used for specification purposes.
SHELF LIFE
Product shelf life is 2 years from date of manufacture when stored at room temperature conditions (72°F [22°C] and 50% RH) in the products original packaging.
AVAILABLE SIZES
Width: Maximum width 38.5 inches (980 mm). (Can be Customized)
Length: 33 m/66 m (Can be customized).
Custom Sizes: If you need customized sizes or die cut parts please feel free to contact sales representative.
Our Services
1. Your inquiry related to our product will be replied within 12 hours.
2. OEM or ODM projects are highly welcome.
3. We can die cut or design the products according to your requirements.
4. Perfect after-sale service offered,please contact us if you got question.
5. Packing as your request and promptly delivery
FAQ
1) How to order from PUFENG?
Just send us email or call us.
2) Do you offer the free sample for testing?
Yes, we offer thee samples for free.
3) How to ship the order?
We will suggest you the appropriate way of shipment, by sea, by air or by courier. Of course if you will have your own forwarder, that is no problem.
4) Can we trust the quality of product from PUFENG?
Sure, do not worry about that. Our quality wills absolutely compliance to the sample we send. If not, we will take charge of that.
5) What payment PUFENG accepts?
For the small quantity, we request 100% advanced TT payment; other conditions, negotiable.
6) How about the lead time of per order?
If the tape you order have stock, we can ship out within 1~3 days.
If die-cuts requested, the lead time shall be according to the quantity.
