|Name:||Die-cutting 3M4936||Adhesive Side:||Double Sided|
|Process:||Die Cut According To Drawing||Brand Name:||3M / PUFENG|
|Thickness:||0.64MM||Adhesive Type::||Hot Melt, Pressure Sensitive, Water Activated|
die cut double sided tape,
die cut and bond tape
0.64MM Thickness Die Cut Adhesive Tape Custom Bonds Low Surface Energy Substrates 3m vhb tapes
|Adhesion to HSE||High|
|Adhesion to LSE||High|
|Adhesive Type||Low Surface Energy Acrylic Adhesive|
|Application Temperature-Environment||N/A, 50F-59F|
|Flexibility of Materials||One Substrate Flexible, Both Substrates Flexible|
|Length||72 Linear Yard, 36 Linear Yard|
|Length (Metric)||65.8 m, 33 m|
|Liner Thickness||3 mil|
|Long Term Temperature Exposure||N/A|
|Short Term Temperature Exposure||N/A|
|Substrates (Surface Energy)||Low Surface Energy, (18-33 Dynes/cm), Medium Surface Energy, (38-39 Dynes/cm), High Surface Energy, (400-1100 Dynes/cm), Medium-High Surface Energy, (42-50 Dynes/cm)|
|Tape Thickness||0.020 in (0.5mm) - 0.032 in (0.8mm)|
|Temperature Resistance - Initial||200 Degree Fahrenheit|
|Temperature Resistance - Long Term||160 Degree Fahrenheit|

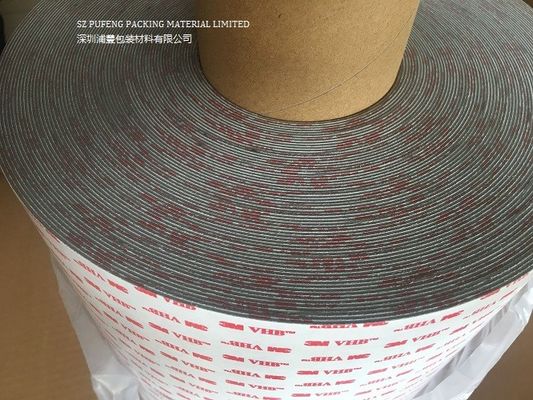

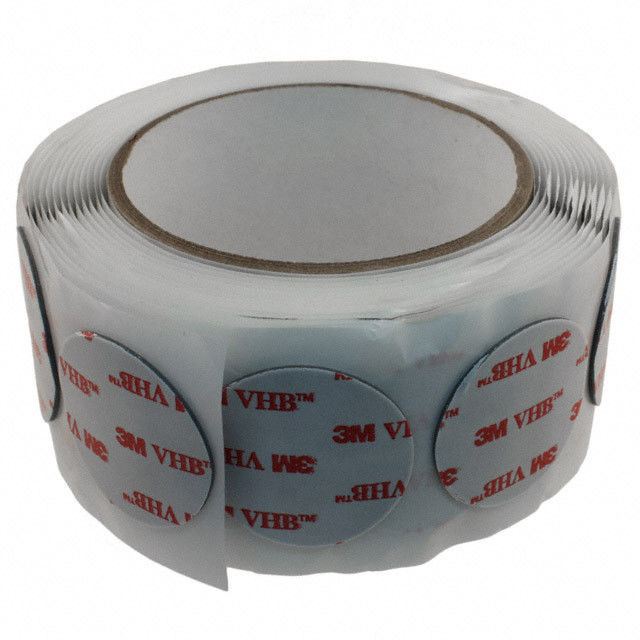

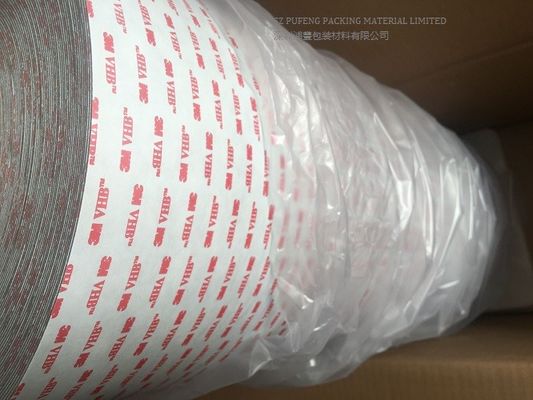

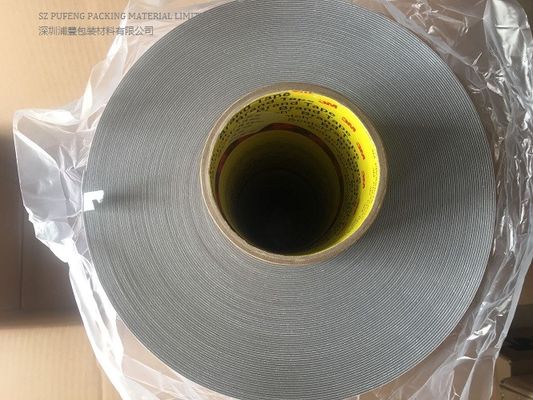

3M VHB Tapes provide the convenience and simplicity of a tape fastener and are ideal for use in many interior and exterior bonding applications. In many situations, they can replace rivets, spot welds, liquid adhesives and other permanent fasteners.
These 3M VHB Tapes are made with acrylic foam which is viscoelastic in nature. This gives the foam energy absorbing and stress relaxing properties which provides these tapes with their unique characteristics. The acrylic chemistry provides outstanding durability performance.
These tapes utilize a variety of specific foam, adhesive, color and release liner types to provide each product/family with specific features. These features can include adhesion to specific or a broad range of materials, conformability, high tensile strength, high shear and peel adhesion, resistance to plasticizer migration, and UL746C recognition. All 3M VHB Tapes have excellent durability and excellent solvent and moisture resistance.
All 3M VHB Tapes should be thoroughly evaluated by the end user under actual use conditions with intended substrates to determine whether a specific tape is fit for a particular purpose and suitable for user’s method of application, especially if expected use involves extreme environmental conditions or high dead load stress.
3M4936, this article is mainly used for automobile trim, a former molding, molding, threshold, Angle of a collision, the plate, stainless steel tank cover, pedal, door handle, round arc, flow, plate brake lights, cars and motorcycles signs, metal plaque, auto parts, safety glass composite paste is fixed.
Other Die Cutting Products:
1) Die cut 3M,TESA, NITTO double side tape.
2) Die cut EMI products, such as copper foil, conductive foam, conductive cloth
3) Die cut Polyimide film, Polyimide tape
4) Die cut PET/Polymer/Tissue Double side tape.
5) Die cut Acrylic Foam Tape/VHB Tape
6) Die cut PE/PET Protective film
7) Die cut Thermal produts,such as Thermal Conductive Double side Tape,Thermal conductive rubber pad.
8) Die cut PE Foam,EVA Foam,PU Foam,PORON Foam,Sponge.
9) Die cut OCA Double Side Tape.
10) Die cut Tempered Glass Screen Protector
11) Die cut Printing Related Protucts,Such as PET/PC/Paper Labels.
12) Die cut All kinds of Insulation gasket,such as PC,PET materials.
Die-cutting 3M VHB Adhesive Tapes:
Die-cutting 3M adhesive tapes + foam :
Die-cutting Heat Resistant adhesive tapes:
Die-cutting Tesa Tape:
Slitting ⇒ Die Cut
1. Your inquiry related to our product will be replied within 12 hours.
2. OEM or ODM projects are highly welcome.
3. We can die cut or design the products according to your requirements.
4. Perfect after-sale service offered,please contact us if you got question.
5. Packing as your request and promptly delivery
1) How to order from PUFENG?
Just send us email or call us.
2) Do you offer the free sample for testing?
Yes, we offer thee samples for free.
3) How to ship the order?
We will suggest you the appropriate way of shipment, by sea, by air or by courier. Of course if you will have your own forwarder, that is no problem.
4) Can we trust the quality of product from PUFENG?
Sure, do not worry about that. Our quality wills absolutely compliance to the sample we send. If not, we will take charge of that.
5) What payment PUFENG accepts?
For the small quantity, we request 100% advanced TT payment; other conditions, negotiable.
6) How about the lead time of per order?
If the tape you order have stock, we can ship out within 1~3 days.
If die-cuts requested, the lead time shall be according to the quantity.
