| Brand Name: | PF |
| Model Number: | 001 |
| MOQ: | 1 roll |
| Price: | USD 0.5~50 per roll |
| Delivery Time: | 3~7 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
Description PET
PRODUCT DESCRIPTION

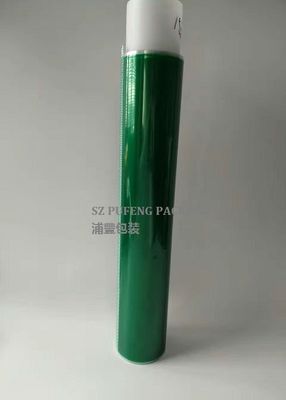

PCB Green High Temperature Masking Adhesive Tape for Electric Motor
PET High temperature masking Tapes are designed For Powder coating masking,High temperature painting,Galvanization.
FEATURES
* High temperature resistance
* Strong adhesion
* Flexible and conformable
* Peeled off without leaving an adhesive residue
APPLICATION
* Powder coating masking
* High temperature painting
* Galvanization
CONSTRUCTION
| Polyester film |
| Silicone Adhesive |
PHYSICAL PROPERTIES
| Items Values |
Base material(um) | adhesive(um) | Total thickness(um) | |
| 25 +/- 2 | 25 +/- 2 | 50 +/- 2 | ||
| Test Items | Reference value | Test Method | ||
| Color | Brown/Geen/Red/Yellow | Visual Inspection | ||
| 180°peel strength(kg/25mm) | 550 +/- 50 | GB/T 2792 | ||
| Viscous displacement(mm)24H | ≦0.1 | GB/T 4851 | ||
| Initial adhesion(25mm/#) | ≥20 | GB/T 4852 | ||
| Tensile strength(25mm/mpa) | Horizontal | ≧75 | GB/T 30776 | |
| Parallel | ≧85 | |||
| Temperature Resistance(25mm/0.5h/180℃) | 180℃ | ZR-METHOD | ||
Note: The above technical information and data should be considered representative or typical only and should not be used for specification purposes.
SHELF LIFE
Product shelf life is 2 years from date of manufacture when stored at room temperature conditions (72°F [22°C] and 50% RH) in the products original packaging.
AVAILABLE SIZES
Width: Maximum width 38.5 inches (980 mm). (Can be Customized)
Length: 33 m/66 m (Can be customized).
Custom Sizes: If you need customized sizes or die cut parts please feel free to contact sales representative.
Our Services
1. Your inquiry related to our product will be replied within 12 hours.
2. OEM or ODM projects are highly welcome.
3. We can die cut or design the products according to your requirements.
4. Perfect after-sale service offered,please contact us if you got question.
5. Packing as your request and promptly delivery
FAQ
1) How to order from PUFENG?
Just send us email or call us.
2) Do you offer the free sample for testing?
Yes, we offer thee samples for free.
3) How to ship the order?
We will suggest you the appropriate way of shipment, by sea, by air or by courier. Of course if you will have your own forwarder, that is no problem.
4) Can we trust the quality of product from PUFENG?
Sure, do not worry about that. Our quality wills absolutely compliance to the sample we send. If not, we will take charge of that.
5) What payment PUFENG accepts?
For the small quantity, we request 100% advanced TT payment; other conditions, negotiable.
6) How about the lead time of per order?
If the tape you order have stock, we can ship out within 1~3 days.
If die-cuts requested, the lead time shall be according to the quantity.
