Product Details
Place of Origin: Guangdong,China(Mainland)
Brand Name: PF
Certification: ROHS
Model Number: 006
Payment & Shipping Terms
Minimum Order Quantity: 1 roll
Price: USD 0.5~50 per roll
Packaging Details: Standard package for export
Delivery Time: 3~7 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000 rolls per day
Name: |
Polyester Film BLUE Tape |
Adhesive Side: |
Single Sided |
Adhesive: |
RUBBER |
Adhesive Type: |
Pressure Sensitive |
Feature: |
Heat-Resistant |
Width: |
2~980mm |
Length: |
33m/66m |
Usage: |
Electronic Industry Ect,Heat Shielding |
Name: |
Polyester Film BLUE Tape |
Adhesive Side: |
Single Sided |
Adhesive: |
RUBBER |
Adhesive Type: |
Pressure Sensitive |
Feature: |
Heat-Resistant |
Width: |
2~980mm |
Length: |
33m/66m |
Usage: |
Electronic Industry Ect,Heat Shielding |

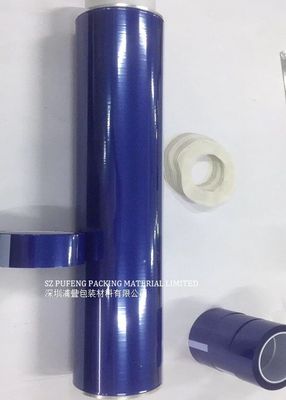

Blue clear PET rubber adhesive polyester tape refrigerator tape is using polyester film as backing material and coated with solvent acrylic adhesive. It is used forfixing electronic components.
FEATURES
APPLICATION
1. Fixing of refrigerator, air conditioner and ice chest, freezers
2. Fixing of capacitor, coils and PCB
3. Plating Making, light shielding
CONSTRUCTION
| PET Film |
| Rubber Adhesive |
PHYSICAL PROPERTIES
|
Properties
|
Performance
|
Test Method
|
|
Color
|
Blue
|
Visual
|
|
Film Thickness
|
30 micron (1.2 mil)
|
Micrometer
|
|
Adhesive Thickness
|
25 micron(1.0 mil)
|
Micrometer
|
|
Shear Adhesion
|
≥48 Hours
|
PSTC-107/ASTM D3654
|
|
Adhesion Strength
|
12 N/25mm (43.3 Oz/In)
|
PSTC-101/ASTM D3330
|
|
Tensile Strength
|
75 N/25mm (17.1 Lb/In)
|
PSTC-131/ASTM D3759
|
|
Elongation at Break
|
140.0%
|
PSTC-131/ASTM D3759
|
Note: The above technical information and data should be considered representative or typical only and should not be used for specification purposes.
SHELF LIFE
Sliced roll width available (or customized): 20,35,40,50,60 mm, etc.
Roll length: 30m, 50m, 100m
Tolerance:Thickness: +/- 0.015mm Width:+/-1.0mm Length: +/- 0.4m
Storage: Indoor storage: -5℃-40℃(humidity:<80%), cool & dry, free of direct sunlight
Shelf Life: 12 months in room temp.
AVAILABLE SIZES
Width: Maximum width 38.5 inches (980 mm). (Can be Customized)
Length: 33 m/66 m (Can be customized).
Custom Sizes: If you need customized sizes or die cut parts please feel free to contact sales representative.
Our Services
1. Your inquiry related to our product will be replied within 12 hours.
2. OEM or ODM projects are highly welcome.
3. We can die cut or design the products according to your requirements.
4. Perfect after-sale service offered,please contact us if you got question.
5. Packing as your request and promptly delivery
FAQ
1) How to order from PUFENG?
Just send us email or call us.
2) Do you offer the free sample for testing?
Yes, we offer thee samples for free.
3) How to ship the order?
We will suggest you the appropriate way of shipment, by sea, by air or by courier. Of course if you will have your own forwarder, that is no problem.
4) Can we trust the quality of product from PUFENG?
Sure, do not worry about that. Our quality wills absolutely compliance to the sample we send. If not, we will take charge of that.
5) What payment PUFENG accepts?
For the small quantity, we request 100% advanced TT payment; other conditions, negotiable.
6) How about the lead time of per order?
If the tape you order have stock, we can ship out within 1~3 days.
If die-cuts requested, the lead time shall be according to the quantity.
