Product Details
Place of Origin: China
Brand Name: PUFENG
Model Number: PF0402
Payment & Shipping Terms
Minimum Order Quantity: 1roll
Price: USD1~USD50
Packaging Details: packing in cartons
Delivery Time: 3~5working days normally
Payment Terms: T/T
Supply Ability: 10000roll/week
Item: |
0402/0403/0405/0406/0407/0410/0412 |
Thickness (um): |
Customizable |
Adhesive: |
Acrylic Acid |
Color: |
Copper |
Peel Adhesion: |
0.8~1.2 |
Resistance(Ω): |
0.03~0.05Ω |
Holding Power 1kg/25mm/h: |
48 |
Temperature- Resistance (℃): |
80~120℃ |
Item: |
0402/0403/0405/0406/0407/0410/0412 |
Thickness (um): |
Customizable |
Adhesive: |
Acrylic Acid |
Color: |
Copper |
Peel Adhesion: |
0.8~1.2 |
Resistance(Ω): |
0.03~0.05Ω |
Holding Power 1kg/25mm/h: |
48 |
Temperature- Resistance (℃): |
80~120℃ |

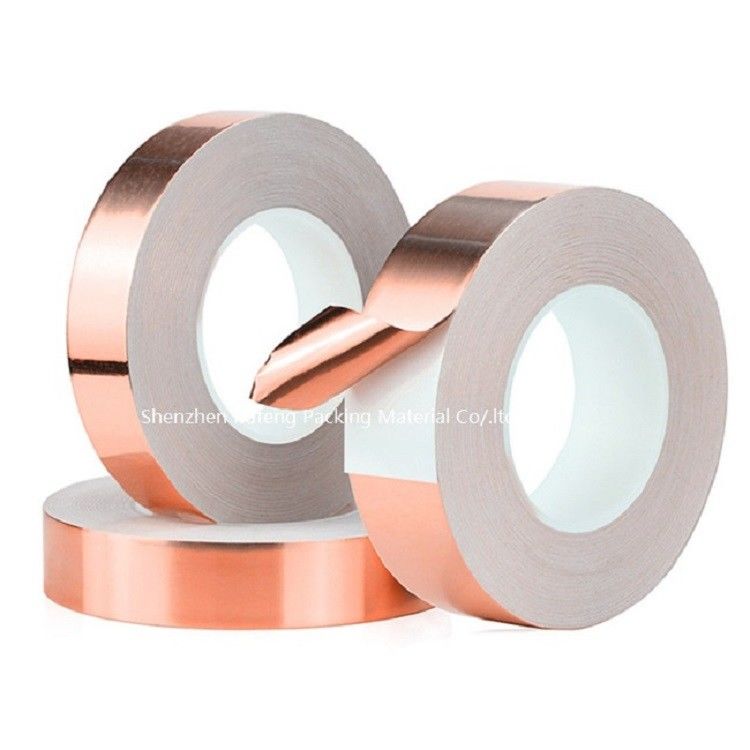

The product name : Copper foil tape
Material:
Copper foil tape is made of high quality conductive adhesive, copper material, with strong adhesive force, good electrical conductivity, strong sealing performance, easy to fit, anti-aging, can be tortuous use and other properties, can be cut various specifications.
Item | Thickness (um) |
Color | Peel Adhesion |
Resistance(Ω)
|
Holding power 1kg/25mm/h |
Long- term temperat ure (C) |
PF0402 | 20 | copper | 1.2 | 0.05 | 48 | 80 |
PF0403 | 30 | copper | 1.2 | 0.05 | 48 | 80 |
PF0405 | 50 | copper | 1.2 | 0.05 | 48 | 80 |
PF0406 | 60 | copper | 1.2 | 0.05 | 48 | 80 |
PF0407 | 70 | copper | 1.2 | 0.05 | 48 | 80 |
PF0410 | 100 | copper | 1.2 | 0.05 | 48 | 80 |
PF0412 | 120 | copper | 0.8 | 0.05 | 48 | 120 |
That's no problem
.
