260 Degree 0.06mm High Temperature Polyimide Tape Pressure Sensitive

Product Details

Place of Origin: China mailand

Brand Name: PF

Certification: SGS

Model Number: KT0055

Payment & Shipping Terms

Minimum Order Quantity: 1 roll

Packaging Details: carton package with shrink film wrapping outside

Delivery Time: 3~5 work days

Payment Terms: T/T

Supply Ability: 500 rolls per day

Get Best Price
Contact Now
Specifications
Highlight:

0.06mm High Temperature Polyimide Tape

,

260 Degree High Temperature Polyimide Tape

,

Pressure Sensitive Kapton Polyimide Tape

Adhesive:
Silicone
Adhesive Type:
Pressure Sensitive
Material:
Polymide + Silicone
Feature:
High Temperature, Heat-resistant
Thickness:
0.06mm
Length:
33m
Color:
Tea Color, Amber
Width:
Customized, Min. 1mm, Max. 1.2m
Temperature Resisitance:
260 Degree Celsius
Usage:
Insulation Protection
Adhesive:
Silicone
Adhesive Type:
Pressure Sensitive
Material:
Polymide + Silicone
Feature:
High Temperature, Heat-resistant
Thickness:
0.06mm
Length:
33m
Color:
Tea Color, Amber
Width:
Customized, Min. 1mm, Max. 1.2m
Temperature Resisitance:
260 Degree Celsius
Usage:
Insulation Protection
Description
260 Degree 0.06mm High Temperature Polyimide Tape Pressure Sensitive

0.025mm film +0.025mm silicone for high temperature masking Polyimide Silicone adhesive kapton tape



Polyimide tape, is also known as kapton tape, is with polyimide film as the basic carrier, and coated with imported pressure sensitive silicone adhesive. It can endure high temperature up to 260℃ within half an hour, and it also features like: electrical insulation, radiation resistance, solvement resistance etc. Its mostly applied for the motor insulation, gold finger protection of PCB during wave soldering etc. Without any residue after the tape is removed from the gold finger.

silicone
Polyimide Film



Appliance:

High temperature protection of gold finger of the PCB under wave soldering.

The coil insulation binding of the transformers.

The fixation of Li batteries

The fixation of heaters.

The high temperature masking of electrical parts under high temperature260 Degree 0.06mm High Temperature Polyimide Tape Pressure Sensitive 0



Items Data
Backing Polyimide film 0.025mm
Adhesion Silicone
Color Amber
Thickness (mm) 0.05
Length (m) 33M
Tensile Strength (N/25mm) ≥140
Elongation (%) ≥40
Breakdown strength (N/25mm) ≥150
Voltage resistance (KV) 6
Adhesion (N/25mm) ≥4
Temperature Resistance (℃) 260℃





Pictures:

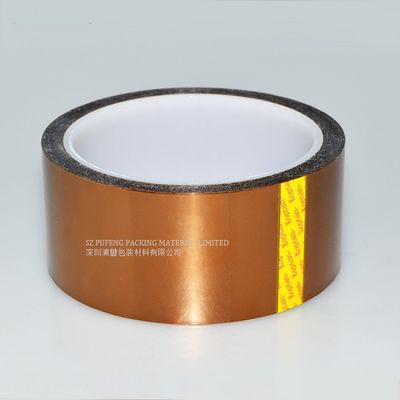

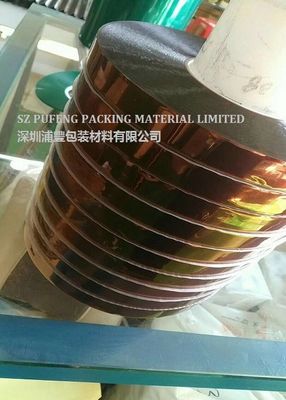

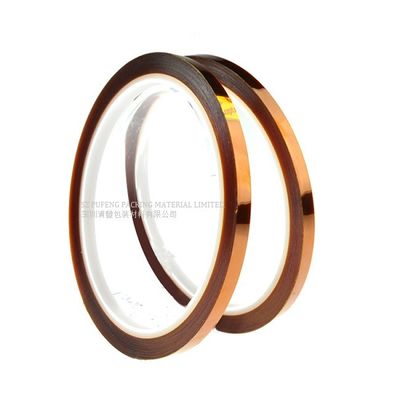

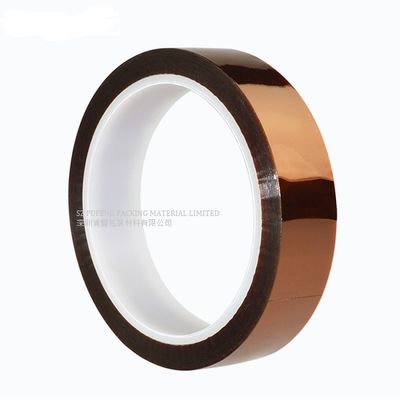

260 Degree 0.06mm High Temperature Polyimide Tape Pressure Sensitive 1260 Degree 0.06mm High Temperature Polyimide Tape Pressure Sensitive 2260 Degree 0.06mm High Temperature Polyimide Tape Pressure Sensitive 3
