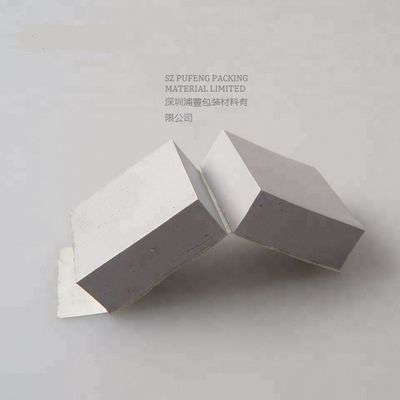

RoHS 1.2-8W/M.K 15mm Thermal Conductive Pad High Temperature Resistance

Product Details

Place of Origin: Guangdong,China Mainland

Brand Name: PF

Certification: ROHS

Model Number: 00

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Price: USD 0.5 per piece

Packaging Details: Standard package for export

Delivery Time: 3~10 work days

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 1000000 pieces per day

Get Best Price
Contact Now
Specifications
Highlight:

RoHS Thermal Conductive Pad

,

15mm Thermal Conductive Pad

,

8W/M.K thermal adhesive pad

Product Name:
Silicone Thermal Pad
Thickness:
0.25~15mm
Thermal Conductivity:
1.2-8.0W/m.K
Application:
Communication Equipment, LED Lighting,Switch Power Supply
Color:
Black,White,Blue
Rated Voltage:
6KV
Type:
Insulation Sheet,silicone Thermal Pad
Size:
Available Sizes: 200mm*400mm,/300mm*300mm/ Custom
Product Name:
Silicone Thermal Pad
Thickness:
0.25~15mm
Thermal Conductivity:
1.2-8.0W/m.K
Application:
Communication Equipment, LED Lighting,Switch Power Supply
Color:
Black,White,Blue
Rated Voltage:
6KV
Type:
Insulation Sheet,silicone Thermal Pad
Size:
Available Sizes: 200mm*400mm,/300mm*300mm/ Custom
Description
RoHS 1.2-8W/M.K 15mm Thermal Conductive Pad High Temperature Resistance

High Temperature Resistance Conductive Thermally Silicone Gel Pad Die Cutting





 LED Thermal Pad

  LED thermal pad is a high performance thermal conductive gap filling material, mainly used for thermal interface between electronic components  and heat sink or product outer covering.





 APPLICATION

 * Communication equipment

 * LED lighting

 * Switch power supply

 * Backlight module

 * Medical equipment

 * Mobile equipment

 * Video equipment

 * Household equipment



  Features of silicone thermal pad

 *  Thermal Conductivity: 1.2-8.0W/m.K
 *  Low Compression application
 *  Easy in assembly and reusable
 *  Superior Temperature endurance
 *  Excellent electrical isolation

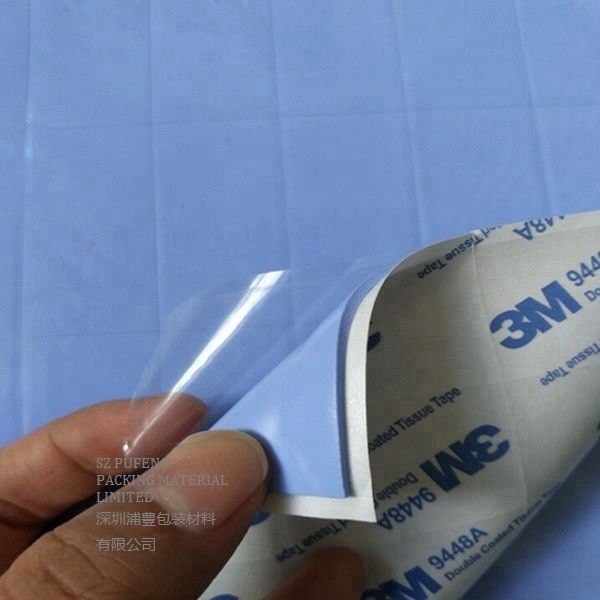

 *  Double side in natural inherent tack





   Parameters of silicone thermal pad


PROPERTIES UNITS PFT 40 PFT 50 PFT 60 PFT 80 TEST METHOD
Color / Brown Dark Red Light Grey Grey Visual
Thermal impedance @1mm/20Psi ℃in2/W 0.36 0.21 0.2 0.15 ASTM D5470
Specific Gravity g/cm3 2.8 3 3.2 3.4 ASTM D792
Volume Resistivity ΩCM 1.0×1014Ω 1.0×1014Ω 1.0×1013Ω 1.0×1013Ω ASTM D257
Thermal Conductivity W/mk 4 5 6.5 8 ASTM D5470
Breakdown Voltage KV/mm ≧9 ≧10 ≧10 ≧8 ASTM D149
Dielectric Constant @1MHz 5 5 5 7.5 ASTM D150
Thickness (±10%) mm 0.5 ~5.0 0.5 ~5.0 0.5 ~5.0 0.5 ~5.0 ASTM D374
Hardness Shore 00 50 55 60 70±10 ASTM D2240
Flammability class / UL94-VO UL94-VO UL94-VO UL94-VO UL94
Application temperature -50~+200 -50~+200 -50~+200 -40~+150
Tape Choose /
Self-adhesive / Double sided Doublesided Double sided Double sided
Fiber Strengthen /




PROPERTIES UNITS PFT 12 PFT 15 PFT 20 PFT 25 PFT 30 TEST METHOD
Color / White Grey White Grey Grey Orange Blue Visual
Thermal impedance @1mm/20Psi ℃in2/W 0.8 0.7 0.5 0.47 0.42 ASTMD5470
Specific Gravity g/cm3 1.8 2 2.4 2.9 3 ASTM D792
Volume Resistivity ΩCM 5.0×1013
Ω
5.0×1013
Ω
2.6×1013
Ω
1.5×1013
Ω
1.0×1014Ω ASTM D257
Thermal Conductivity W/mk 1.2 1.5 2 2.5 3 ASTMD5470
Breakdown Voltage KV/mm ≧10 ≧10 ≧10 ≧10 ≧9 ASTM D149
Dielectric Constant @1MHz 5.5 5.5 6 5.5 5.6 ASTM D150
Thickness (±10%) mm 0.2~10 0.2~10 0.2~10 0.3~5.0 0.3~5.0 ASTM D374
Hardness Shore00 35/50 35/50 35/50 35/50 35/50 ASTM D2240
Flammability class / UL94-VO UL94-VO UL94-VO UL94-VO UL94-VO UL94
Application temperature -50~+200 -50~+200 -50~+200 -50~+200 -50~+200
Tape Choose /
Self-adhesive / Double sided Double sided Double sided Double sided Double sided
Fiber Strengthen /


SHELF LIFE

Product shelf life is 2 years from date of manufacture when stored at room temperature conditions (72°F [22°C] and 50% RH) in the products original packaging.



AVAILABLE SIZES

Available Sizes: 200mm*400mm, 300mm*300mm etc. (Can be Customized)

Custom Sizes: If you need customized sizes or die cut parts please feel free to contact sales representative.

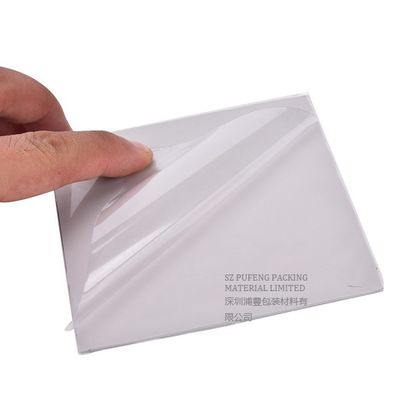

Thermal conductive silicone pad is specially designed for the purpose of high performance thermal conductivity.
Pad standard size 400mm*200mm according to customer needs to cut the shapes.
Basic thickness 0.3mm/0.5mm/1mm/1.5mm/2mm/3mm, special size and thickness can be customized.
The product itself is slightly viscous, if need to strengthen the adhesive can be according to customer's requirement
Product color is mass production, if need special color can be adjusted to the actual situationRoHS 1.2-8W/M.K 15mm Thermal Conductive Pad High Temperature Resistance 0





Our Services

1. Your inquiry related to our product will be replied within 12 hours.



2. OEM or ODM projects are highly welcome.



3. We can die cut or design the products according to your requirements.



4. Perfect after-sale service offered,please contact us if you got question.



5. Packing as your request and promptly delivery







FAQ



1) How to order from PUFENG?

Just send us email or call us.



2) Do you offer the free sample for testing?

Yes, we offer thee samples for free.



3) How to ship the order?

We will suggest you the appropriate way of shipment, by sea, by air or by courier. Of course if you will have your own forwarder, that is no problem.



4) Can we trust the quality of product from PUFENG?

Sure, do not worry about that. Our quality wills absolutely compliance to the sample we send. If not, we will take charge of that.



5) What payment PUFENG accepts?

For the small quantity, we request 100% advanced TT payment; other conditions, negotiable.



6) How about the lead time of per order?

If the tape you order have stock, we can ship out within 1~3 days.

If die-cuts requested, the lead time shall be according to the quantity.
