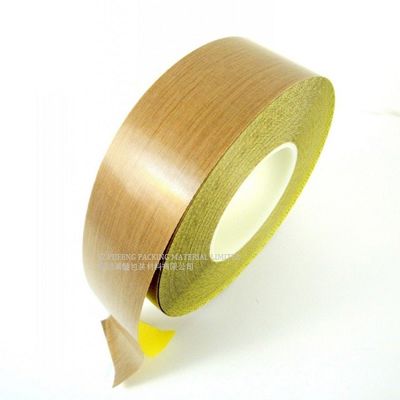

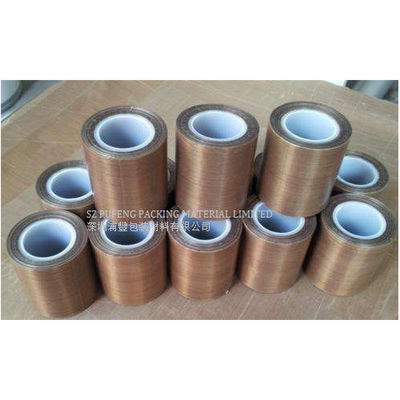

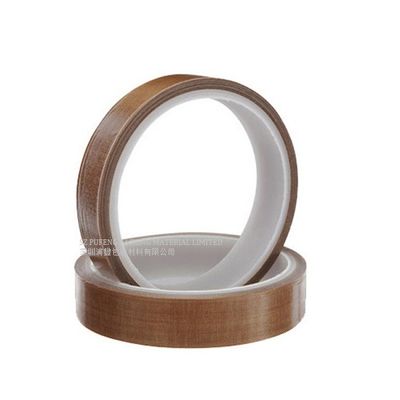

Heat Resistant 0.13mm RoHS High Density PTFE Tape , High Temperature Adhesive Tape

Product Details

Place of Origin: Guangdong,China(Mainland)

Brand Name: PF

Certification: ROHS

Model Number: 100

Payment & Shipping Terms

Minimum Order Quantity: 1 roll

Price: USD 1~10 per roll

Packaging Details: Standard pacakge for export

Delivery Time: 3~7 work days

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 10000 rolls per day

Get Best Price
Contact Now
Specifications
High Light:

0.13mm high density ptfe tape

,

RoHS high density ptfe tape

,

PTFE high temperature adhesive tape

Product Name:
PTFE Cloth Film Tape
Application:
Electrica Insulation,Packing,Sealing
Material:
PTFE,100% Virgin PTFE,PTFE Coated Fiberglass With Silicone Adhesive
Color:
White,black,brown,Customized
Feature:
Heat-Resistant,Sealing Performance,Heat Resistance,Waterproof
Thickness:
0.08mm 0.13mm
Product Name:
PTFE Cloth Film Tape
Application:
Electrica Insulation,Packing,Sealing
Material:
PTFE,100% Virgin PTFE,PTFE Coated Fiberglass With Silicone Adhesive
Color:
White,black,brown,Customized
Feature:
Heat-Resistant,Sealing Performance,Heat Resistance,Waterproof
Thickness:
0.08mm 0.13mm
Description
Heat Resistant 0.13mm RoHS High Density PTFE Tape , High Temperature Adhesive Tape

PTFE silicone Tape High Temperature Adhesive Tapes Heat - Resistant





Technical Parameters



Product Name cloth tape
Total Thickness(mm) 0.13
Backing Thickness (mm) 0.08
Adhesive Silicone
Backing Glass fiber cloth
Color Brown / black ESD
Liner No
Peel Adhesion to Steel (N/25MM) 7±2
Tensile Strength(N/10MM) 170
Voltage Registance(KV) 5-6KV
Surface resistance (Ω)
Insulation Registance 10^11
Short-term temperature(℃) 300
Long-term temperature (℃) 260
Lowest temperature(℃) -60°


Product Description

PTFE silicone Adhesive glass-cloth tape High Temperature Tape is consisting of PTFE(polytetrafluoroethylene) film and silicone adhesive layer. Have advantages of excellent heat resistance,insulation, sliding, chemical resistance.Nitto Denko 903ul PTFE Adhesive tape High Temperature Tape is not only as a heat resistant tape but also to be used for various applications.





Features

1. Superior in mold-releasing and sliding property.

2. Uses the Class H insulating material.

3. Superior flame resistance.

4. Non-adhesive side of the tape offers excellent characteristics of polytetrafluoroethylene, such as electrical property, resistance to heat, weather, chemical, and water (water-shedding), low friction coefficient and non-adhesiveness.

5. Can smoothly adhere, wind, band and seal, just like regular adhesive tapes.





Applications

1. For heat-resistant masking, heat-sealing,heat-resistant electrical insulation.

2. Heat resistant electrical insulation (for Class H electrical insulation).

3. Coating for crimping part of heat sealing.

4. Friction control and furtherance in sliding sections.

5. Insulation coating of bounding, etc.





Main capability:
*  Smooth surface, easy clean
*  Non stick, reusable
*  Chemical resistance
*  Insulating properties
*  Heat-resistance




Any special requirements please contact us , we can do any size of the goods according to the requirements of customers.
Heat Resistant 0.13mm RoHS High Density PTFE Tape , High Temperature Adhesive Tape 0



Our Services

1. Your inquiry related to our product will be replied within 12 hours.

2. OEM or ODM projects are highly welcome.

3. We can die cut or design the products according to your requirements.

4. Perfect after-sale service offered,please contact us if you got question.

5. Packing as your request and promptly delivery





FAQ

1) How to order from PUFENG?

Just send us email or call us.



2) Do you offer the free sample for testing?

Yes, we offer thee samples for free.



3) How to ship the order?

We will suggest you the appropriate way of shipment, by sea, by air or by courier. Of course if you will have your own forwarder, that is no problem.



4) Can we trust the quality of product from PUFENG?

Sure, do not worry about that. Our quality wills absolutely compliance to the sample we send. If not, we will take charge of that.



5) What payment PUFENG accepts?

For the small quantity, we request 100% advanced TT payment; other conditions, negotiable.



6) How about the lead time of per order?

If the tape you order have stock, we can ship out within 1~3 days.

If die-cuts requested, the lead time shall be according to the quantity.
