Product Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: PF
Certification: ROHS
Model Number: KT005
Payment & Shipping Terms
Minimum Order Quantity: 1 roll
Price: USD 1~150 / ROLL
Packaging Details: Standard export carton for polyimide tape
Delivery Time: 3~7 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000 rolls per day
Name: |
Kapton Film / Polyimide Tape |
Temperature: |
120 - 260 ℃ |
Material: |
Polyimide,PI Film |
Adhesive: |
Silicone |
Thickness: |
50mic~100mic |
Color: |
Amber,golden,brown |
Application: |
High Temperature,Electronics,PCB,insulation,SMT Wave Soldering |
Feature: |
Heat-Resistant,Antistatic,High Temperature Resistance,Electrical Insulation |
Name: |
Kapton Film / Polyimide Tape |
Temperature: |
120 - 260 ℃ |
Material: |
Polyimide,PI Film |
Adhesive: |
Silicone |
Thickness: |
50mic~100mic |
Color: |
Amber,golden,brown |
Application: |
High Temperature,Electronics,PCB,insulation,SMT Wave Soldering |
Feature: |
Heat-Resistant,Antistatic,High Temperature Resistance,Electrical Insulation |
Kaptons double sided polyimide insulation tape high temperature resistant tape
Silicone Adhesive Polyimide Tape Heat Resistant High Temperature Polyimide Tape is based on polyimide film and coated with high performance silicone adhesive for temperature resistance and electrical insulation. It is wiely applied for motor insulation ,gold finger protection for PCB during wave soldering.
| Item | Unit | Value | Test method |
| Width | mm | 10-1000 | Micrometer |
| Length | m | 10-100 | Micrometer |
| Thickness | mm | 0.15 | Micrometer |
| Short-term temperature | ℃ | 300 | Thermostat |
| Long-term temperature | ℃ | 260 | Thermostat |
| Adhesion to Steel | N/25MM | 7 | ASTM D-3330 |
| Tensile Strength | N/25MM | 115 | ASTM D-897 |
| Elongation at break | (%) | 50 | Tensile tester |
| Breakdown Voltage | KV | 4.5 | Voltage tester |
1. Heat resistance
2. High voltage insulation
3. Acid and alkali resistant
4. Low voltage electrolytic

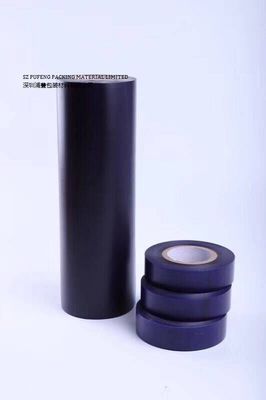

5. Amber (black is customized)
6. Roll core can be made as 76mm and 38mm.
Protect golden finger when PCB board in soldering tin furnace, insulation of coil, wave-soldering protection, electrical insulation, high temperature resistance etc. No residue leaving after peeling off.
Product composition:
|
→ kapton film/polyimide tape
|
|
→silicone pressure sensitive adhesive
|
Application ideals:
Ideal for switch.motor .relay.cable.coils.capacitance and lithium battery.SMT.transformer fabrication and so on.
| Thickness (mm) | Width (mm) |
Length (m) |
resistance temperature |
| 0.065 | 2-500 | 33 | 260(°C) |
| 0.065 | 2-500 | 33 | 300(°C) |
| 0.065 | 2-500 | 33 | 260(°C) |
| 0.08 | 2-500 | 33 | 260(°C) |
| 0.115 | 2-500 | 33 | 260(°C) |
| 0.165 | 2-500 | 33 | 260(°C) |
| 0.25 | 2-500 | 10 | 260(°C) |
Storage condition and Shelf life:
The product should be stored in the ambient temperature, in the 20~80%RH.
You can obtain the best properties within 12 months after product date.

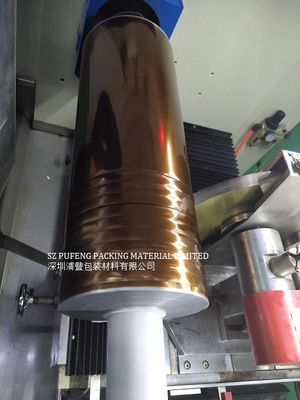

Product Show:
Our Services
1. Your inquiry related to our product will be replied within 12 hours.
2. OEM or ODM projects are highly welcome.

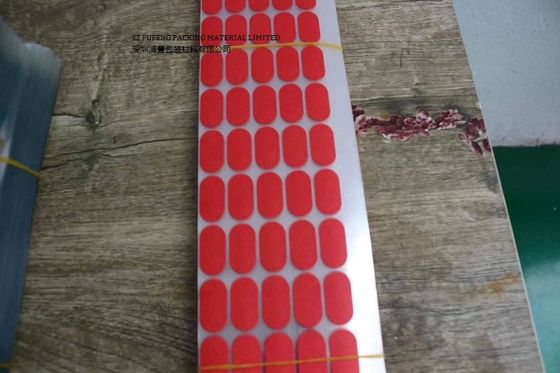

3. We can die cut or design the products according to your requirements.
4. Perfect after-sale service offered,please contact us if you got question.
5. Packing as your request and promptly delivery
FAQ
1) How to order from PUFENG?
Just send us email or call us.
2) Do you offer the free sample for testing?
Yes, we offer thee samples for free.
3) How to ship the order?
We will suggest you the appropriate way of shipment, by sea, by air or by courier. Of course if you will have your own forwarder, that is no problem.
4) Can we trust the quality of product from PUFENG?
Sure, do not worry about that. Our quality wills absolutely compliance to the sample we send. If not, we will take charge of that.
5) What payment PUFENG accepts?
For the small quantity, we request 100% advanced TT payment; other conditions, negotiable.
6) How about the lead time of per order?
If the tape you order have stock, we can ship out within 1~3 days.
If die-cuts requested, the lead time shall be according to the quantity.
