Special Brown PI Film Double Sided Polyimide Tape 0.05MM Thickness For Automotive Sensor

China Special Brown PI Film Double Sided Polyimide Tape 0.05MM Thickness For Automotive Sensor supplier
Special Brown PI Film Double Sided Polyimide Tape 0.05MM Thickness For Automotive Sensor supplier Special Brown PI Film Double Sided Polyimide Tape 0.05MM Thickness For Automotive Sensor supplier Special Brown PI Film Double Sided Polyimide Tape 0.05MM Thickness For Automotive Sensor supplier

Large Image :  Special Brown PI Film Double Sided Polyimide Tape 0.05MM Thickness For Automotive Sensor

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: PF
Certification: ROHS
Model Number: KT005

Payment & Shipping Terms:

Minimum Order Quantity: 1 roll
Price: USD 1~150 / ROLL
Packaging Details: Standard export carton for polyimide tape
Delivery Time: 3~7 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000 rolls per day
Contact Now
Detailed Product Description
Name: Kapton Film / Polyimide Tape Feature: Heat Resistrance Anti-static
Adhesive Side: Single Sided Material: Polyimide,PI Film
Adhesive: Silicone Color: Amber,golden,gold
Thickness: 50mic~100mic Usage: Temperature Resistance,ESD Protection,Golden Finger

High temperature polyimide tape for automotive sensor kapton polyimide film tape



Features:



Basing on special brown PI film, using special adhesive, the total thickness is 0.05mm



Very good performance in heat-resistant, anti-static and insulation.



Never residual after working in the heat.







Application:



This product is used for printing circuit board,PC main board.



Protective golden finger when PCB board in soldering tin furnace,insulation of coil,wave-soldering protection,electrical insulation,high temperature resistance, etc.No residue leaving after tape removed.





Product composition:



→ kapton film/polyimide tape



→silicone pressure sensitive adhesive





Physical Parameter

Item Unit Specification Test methods Notes
color   amber Visual assessment
Backing thickness mm 0.025 ASTM D-3652 ±0.001mm
Total thickness mm 0.065 ASTM D-3652 ±0.002mm
Peeling strength N/25mm 4.5~7.0 ASTM D-3330
Tensile strength N/25mm ≥115 ASTM D-3759
Elongation at break % ≥35 ASTM D-3759
Breakdown voltage KV ≥5
Heat resistance 30min 260centigrade
length m 33
width Mm 2~500



Product Features:

With high electrical strength, heat resistance, high adhesive, class H insulation anti-corrosion, soft and tender, no residue after peeling off.



Application ideals:

Ideal for switch.motor .relay.cable.coils.capacitance and lithium battery.SMT.transformer fabrication and so on.



Thickness (mm) Width (mm)

Length

(m)

resistance

temperature

0.065 2-500 33 260(°C)
0.065 2-500 33 300(°C)
0.065 2-500 33 260(°C)
0.08 2-500 33 260(°C)
0.115 2-500 33 260(°C)
0.165 2-500 33 260(°C)
0.25 2-500 10 260(°C)



Storage condition and Shelf life:

The product should be stored in the ambient temperature, in the 20~80%RH.

You can obtain the best properties within 12 months after product date.

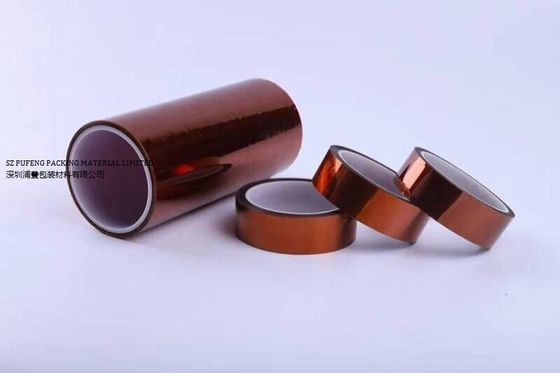

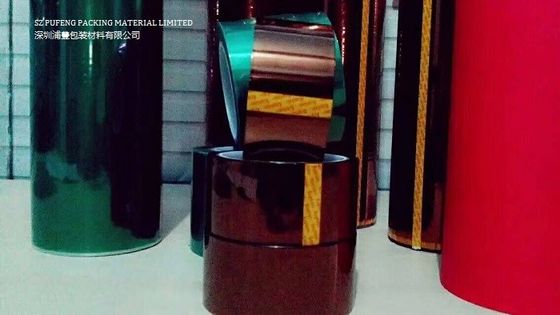

Product Show:



Special Brown PI Film Double Sided Polyimide Tape 0.05MM Thickness For Automotive SensorSpecial Brown PI Film Double Sided Polyimide Tape 0.05MM Thickness For Automotive Sensor

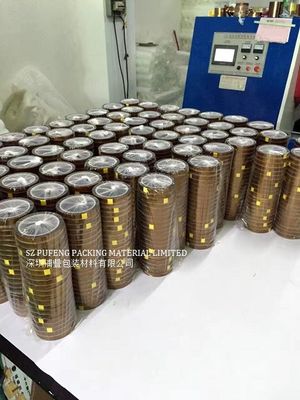

Application show:



Special Brown PI Film Double Sided Polyimide Tape 0.05MM Thickness For Automotive Sensor







Our Services



1. Your inquiry related to our product will be replied within 12 hours.



2. OEM or ODM projects are highly welcome.



3. We can die cut or design the products according to your requirements.



4. Perfect after-sale service offered,please contact us if you got question.



5. Packing as your request and promptly delivery



FAQ



1) How to order from PUFENG?

Just send us email or call us.



2) Do you offer the free sample for testing?

Yes, we offer thee samples for free.



3) How to ship the order?

We will suggest you the appropriate way of shipment, by sea, by air or by courier. Of course if you will have your own forwarder, that is no problem.



4) Can we trust the quality of product from PUFENG?

Sure, do not worry about that. Our quality wills absolutely compliance to the sample we send. If not, we will take charge of that.



5) What payment PUFENG accepts?

For the small quantity, we request 100% advanced TT payment; other conditions, negotiable.



6) How about the lead time of per order?

If the tape you order have stock, we can ship out within 1~3 days.

If die-cuts requested, the lead time shall be according to the quantity.



Special Brown PI Film Double Sided Polyimide Tape 0.05MM Thickness For Automotive Sensor
