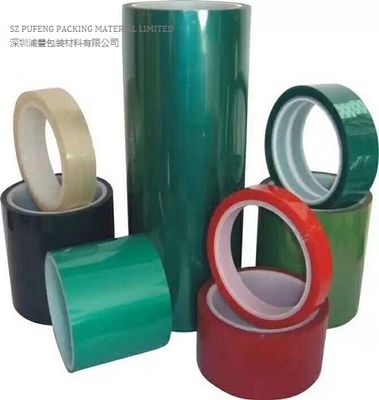

3.5KV 0.065mm Heat Resistant Electrical Insulation Tape 180C

3.5KV 0.065mm Heat Resistant Electrical Insulation Tape 180C

  • 3.5KV 0.065mm Heat Resistant Electrical Insulation Tape 180C
  • 3.5KV 0.065mm Heat Resistant Electrical Insulation Tape 180C
3.5KV 0.065mm Heat Resistant Electrical Insulation Tape 180C
Product Details:
Place of Origin: Guangdong,China(Mainland)
Brand Name: PF
Certification: ROHS
Model Number: 001
Payment & Shipping Terms:
Minimum Order Quantity: 1 roll
Price: USD 0.5~50 per roll
Packaging Details: Standard package for export
Delivery Time: 3~7 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000 rolls per day
Contact Now
Detailed Product Description
Name: High Temperature Resistance Silicone Polyester Tape Adhesive: Silicone
Adhesive Type: Pressure Sensitive Thickness: 0.06 ± 0.005
Length: 33m / 66m Heat Resistant: 180 (℃)
Material: Polyester Feature: Heat-Resistant,High Temperature
Adhesive Side: Single Sided Use: Masking
High Light:

3.5KV heat resistant electrical insulation tape


0.065mm heat resistant electrical insulation tape


180C heat proof insulation tape


Excellent high temperature resistance silicone adhesive film polyester tape​


What is polyester tape?

The polyester tape is made of polyester film, coated with silicone adhesive.It has good high temperature resistance.



Product Features:


1. Excellent thermal, abrasion, and chemical resistance


2. Silicone Adhesives offer High Heat Resistance: 180℃


3. Insulation: 3.5 KV


4. No residue when remove from many surfaces



Main Application:


*  High temperature protection


*  Insulation / Lithium battery extremely car fixed


*  Transform coil wrapping and fixed


*  Chip insetting


* 3D printer





*  High temperature resistance


*  Strong adhesion


*  Flexible and conformable


*  Peeled off without leaving an adhesive residue





Polyester film
Silicone Adhesive



Product Properties:


Item Unit Method Remark
Film Thickness mm 0.035±0.005
Total thickness mm 0.06±0.005
Peel Adhesion G/25mm 650±50
Tensile strength N/25mm ≥135
Elongation at break % ≥60



℃/30min 180
Withstand voltage KV 5

Note: The above technical information and data should be considered representative or typical only and should not be used for specification purposes.





Product shelf life is 2 years from date of manufacture when stored at room temperature conditions (72°F [22°C] and 50% RH) in the products original packaging.





Width: Maximum width 38.5 inches (980 mm). (Can be Customized)


Length: 33 m/66 m (Can be customized).


Custom Sizes: If you need customized sizes or die cut parts please feel free to contact sales representative.


3.5KV 0.065mm Heat Resistant Electrical Insulation Tape 180C 03.5KV 0.065mm Heat Resistant Electrical Insulation Tape 180C 1


Our Services


1. Your inquiry related to our product will be replied within 12 hours.


2. OEM or ODM projects are highly welcome.


3. We can die cut or design the products according to your requirements.


4. Perfect after-sale service offered,please contact us if you got question.


5. Packing as your request and promptly delivery







1) How to order from PUFENG?

Just send us email or call us.


2) Do you offer the free sample for testing?

Yes, we offer thee samples for free.


3) How to ship the order?

We will suggest you the appropriate way of shipment, by sea, by air or by courier. Of course if you will have your own forwarder, that is no problem.


4) Can we trust the quality of product from PUFENG?

Sure, do not worry about that. Our quality wills absolutely compliance to the sample we send. If not, we will take charge of that.


5) What payment PUFENG accepts?

For the small quantity, we request 100% advanced TT payment; other conditions, negotiable.


6) How about the lead time of per order?

If the tape you order have stock, we can ship out within 1~3 days.

If die-cuts requested, the lead time shall be according to the quantity.
