|Name:||3M 410M Double CoatedTape||Width:||305mm Or Customized|
|Length:||33m Or Customized||Shape:||Customized|
0.15mm double sided rubber adhesive tape,
410M double sided rubber adhesive tape,
RoHS Double Coated Adhesive Tape

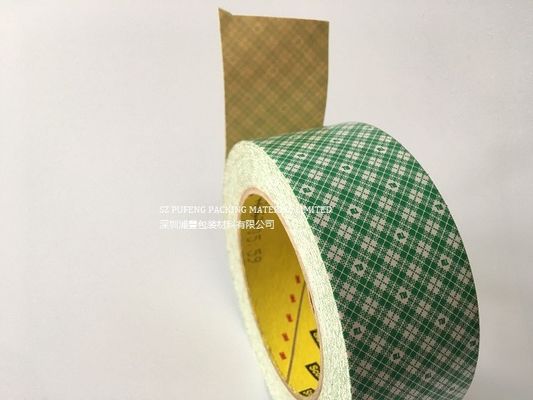

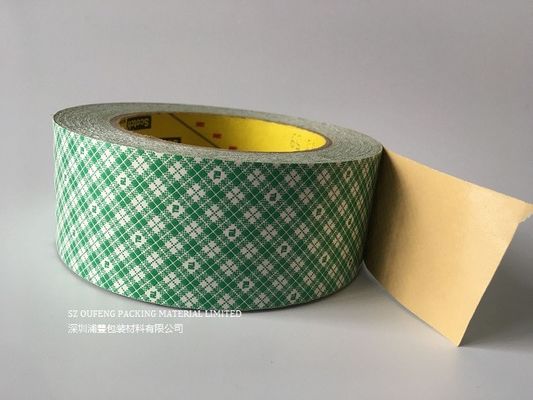

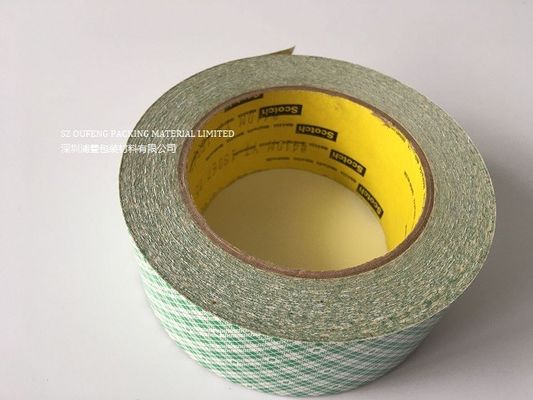

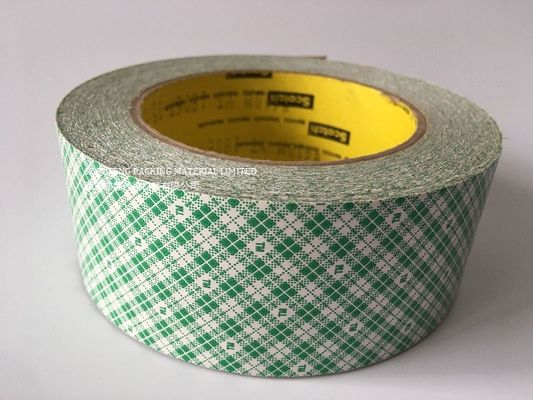

3M 410M double sided tape thick 0.15MM Paper Making Tape for wide application
3M Double Coated Paper Tapes 410M utilize a natural rubber adhesive system that offers good to excellent adhesion to many types of surfaces.
These products use a solvent free manufacturing process.
|Adhesive Family||880||Adhesion to steel||
50 oz. / in.
(56 N / 100 mm )
|Adhesive Type||Natural Rubber||ASTM D 3330 modified
90°peel. 72 hr. RT dwell
|Adhesive Carrier||Treated Paper|
|Tape Color||Off-white||Relative High Temperature||
( 65 ℃ )
|Liner Color||Green Plaid Paper||Operating Range
Long term ( days. weeks )
( 0.15 mm )
( without the liner )
|Short Term ( minutes. hours )||
( 93 ℃ )
|Liner Thickness||0.003 in.
( 0.075 mm )
|Relative Solvent Resistance||Medium|
|U. V. Resistance||Good|
Bond strength is dependent upon the amount of adhesive-to-surface contact. Firm
application pressure helps ensure better adhesive contact and improve bond strength.
To obtain optimum adhesion, the bonding surfaces must be clean, dry, and uniform.
Some typical surface cleaning solvents are isopropyl alcohol or heptane.*
Ideal tape application temperature range is 70°F to 100°F (21°C to 38°C). Initial
tape application to surfaces at temperatures below 50°F (10°C) is not recommended
because the adhesive becomes too firm to adhere readily. However, once properly
applied, low temperature holding is generally satisfactory.
*Note: When using solvents, extinguish all ignition sources, including pilot lights,
and follow the manufacturer’s precautions and directions for use.
• Splicing and core starting of papers, foils, films, fabrics etc.
• Mounting rubber or photopolymer printing plates to print cylinders.
• Attaching of golf club grips.
• Temporary holding while parts are being finished in the milling process.
